White light source 9W LED ceiling light module

Unit Price: USD 2.0000 - 2.2000 / Bag/Bags
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Bag/Bags
Delivery Time: 7 Days

Basic Info

Model No.: GY090011-02

LED Light Source: Piranha

1 LED Power: 0.3-0.5W

Power: 9W

LED Chips: Osram

Waterproof: Not Waterproof

Emitting Color: White, Natural White

IP Rating: IP66

Chip Material: AlGaInP

Luminous Flux(lm): 104 Lm/w

Size: Φ113*1.2mm

LED Type: SMD 2835

Luminous: 959 Lm

CCT: 83.8

Additional Info

Packaging: L185*W165*H46mm, Single gross weight: 46g

Productivity: 500

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 30000 One

Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001

Port: Shekou,Yantian

Product Description

LED 9W light board module consists of 28 lessons LED lamp beads, large area of lamp bead coverage, white light source, positive white light does not flash screen, the light board is a whole piece of 1.25MM thick aluminum substrate, belonging to ceiling lamp, panel light The indispensable material inside, the 9w LED module does not need to be connected to an external driver, so it can help reduce the cost of the circuit and the size of the lamp.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

White light source 9W ceiling light LED module video


 Product Characteristics of 9W Light Source Board.

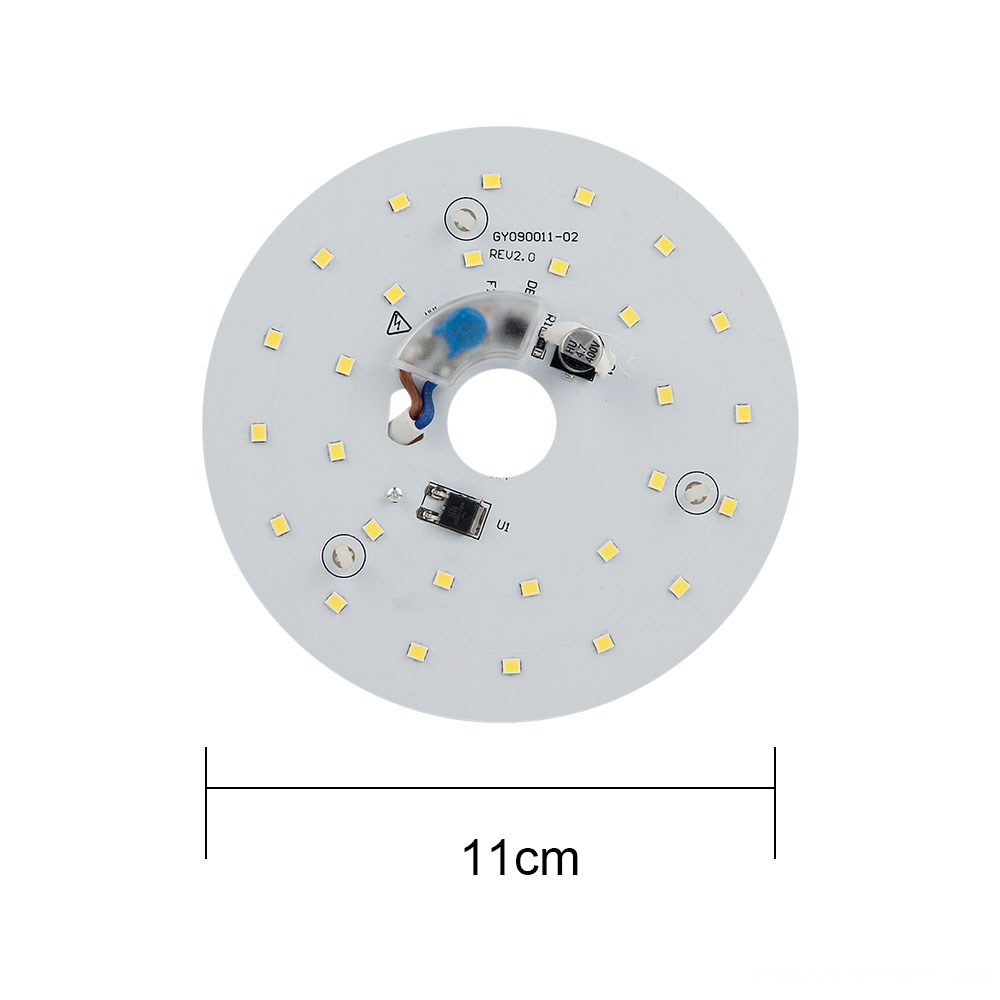

9W LED ceiling light module

The picture above is a real shot of the 9W ceiling light LED module.


1. White Light Source 9W LED Ceiling Lamp Module 5W Light Source Modification Board consists of 28 lessons of large area coverage of LED beads,

    White light source.

2. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
3. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;
    Constant power over voltage current protection function.
4. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
    when the substrate temperature is too high.
5. 9W ceiling light LED module Using PCT2835 patch LED bead, color rendering index is more than 80.
6. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
7. No ultraviolet , electromagnetic wave radiation.
8. The size of 9W PCB board can be customized according to customer requirements.
9. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

9W Light Source Modification Board


Scope of application


pplication scope of 9W light source modification board:

Ceiling lamp, panel lamp,  industrial and mining lamp, street lamp, LED down lamp, fluorescent lamp, projection lamp, etc.

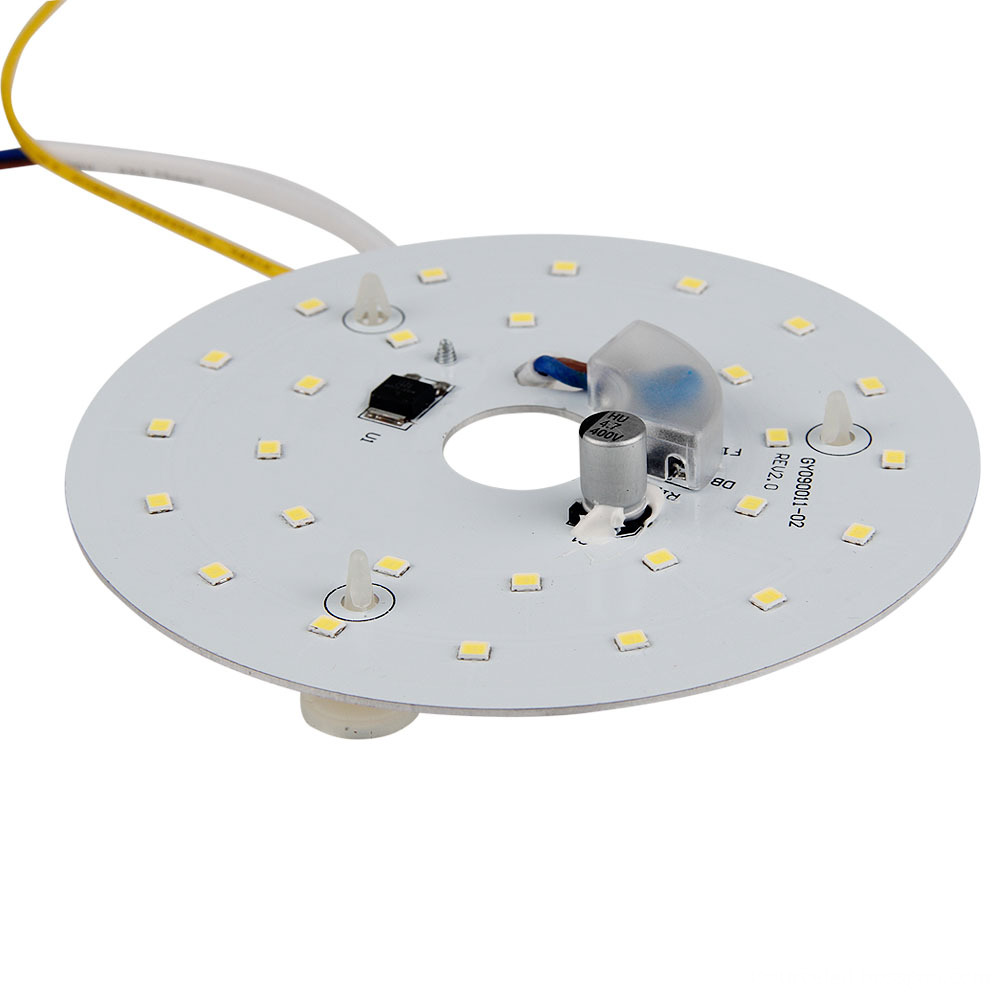

9W LED Light Source Board


Lighting Chart of 9W LED Light Source Board

Technical parameters of white light source 9W ceiling lamp module:

Type

GY090011-02

Input Voltage

AC 220-240V 50HZ

Input Current

0.078A

Power

9W

Power Factor

0.6

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

963 lm

luminous efficiency

104 lm/w

Color temperature

2700K-6500K

Color rendering index

82

Size

Φ113*1.2mm

Weight

46 g

Thermal Conductivity

1.0W/m.K



The bottom of the 9W led light module


9W led light module installation guide:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED

module, and fix the LED module and radiator with screws.
2. Attach the lens and screw it in place.
3. Ac 220V power supply is introduced for power test.

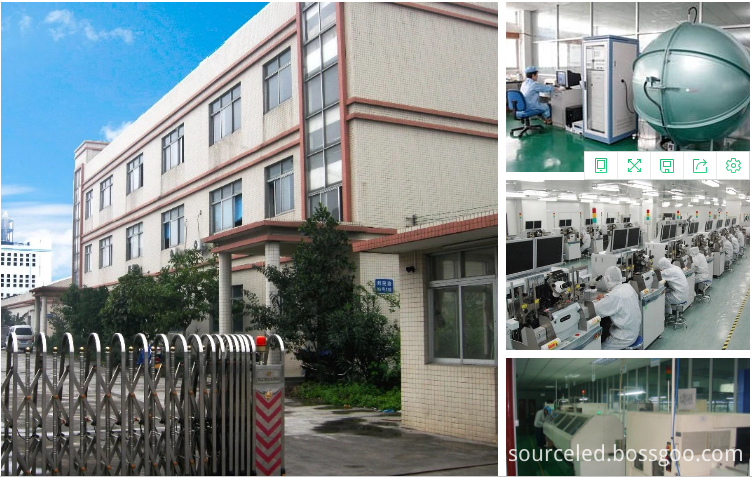

Isourecled Company Information
