White light source 15W LED ceiling light module

Basic Info

Model No.: GY150014

LED Light Source: Piranha

Emitting Color: Pure White, Natural White

1 LED Power: 0.3-0.5W

Power: 15W

LED Chips: Osram

Waterproof: Not Waterproof

Chip Material: AlGaInP

Luminous Flux(lm): 1554 Lm

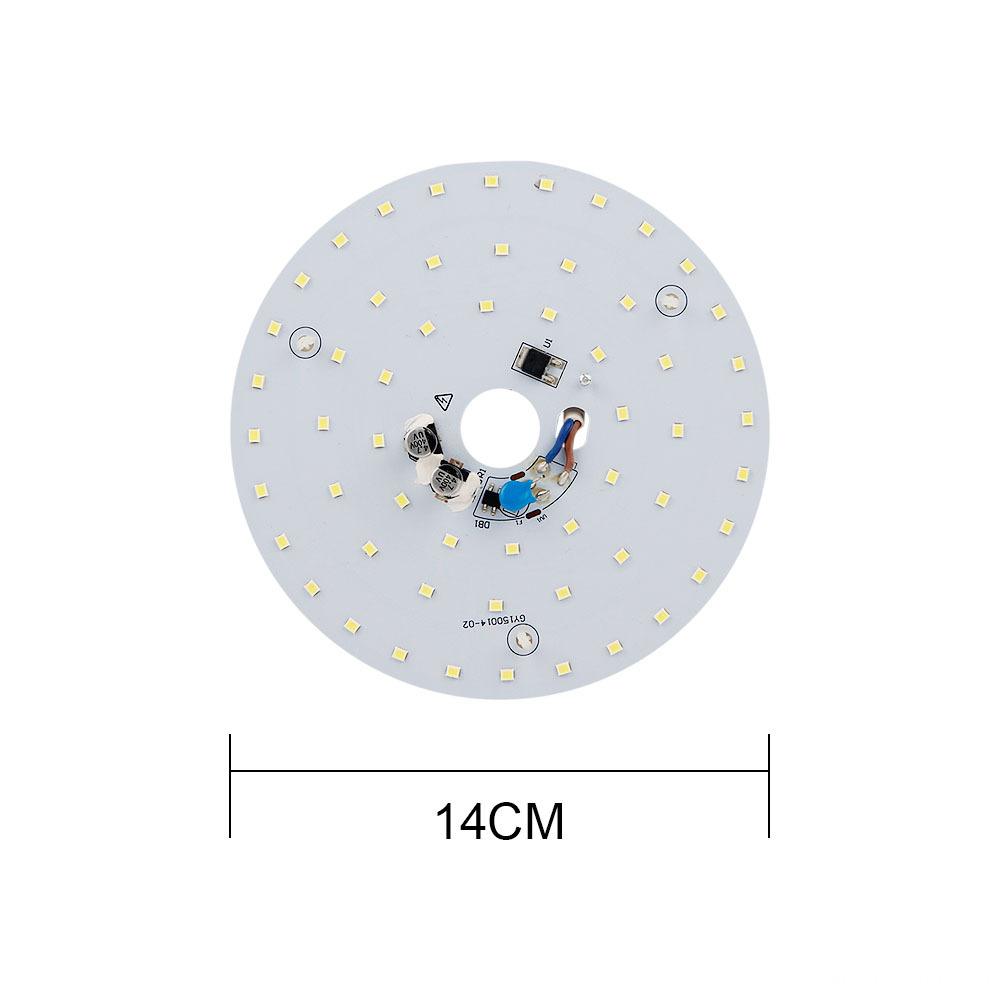

Size: Φ140*1.2mm

LED Type: SMD 2835

Luminous Efficiency: 101.6 Lm/w

CCT: 83

Additional Info

Packaging: L185*W165*H46mm, Single gross weight: 63 g

Productivity: 600

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 30000 pcs/month

Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001

Port: Shekou,Yantian

Product Description

The 15W LED light source module adopts a disc-type light board, and the 15W ceiling light module emits white light. The main purpose is LED ceiling light, LED ceiling, LED light board is a 1.5-thick aluminum substrate, perfect. The heat dissipation guarantees the service life. The 15W light source retrofit board is covered by a large area of 56 LED lamp beads. The white light source ensures that the illumination is absolutely uniform, no flash screen, and the lighting effect is very good.

White light source 15W ceiling light LED module video.

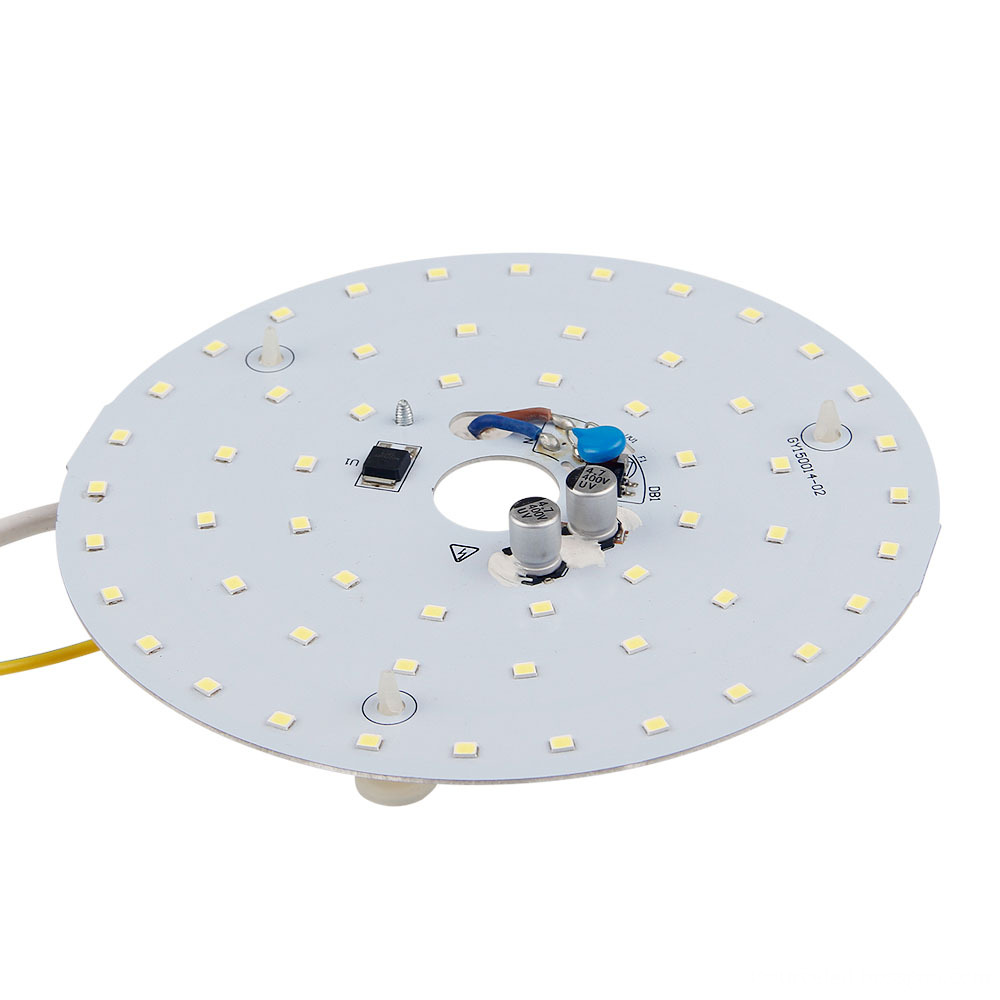

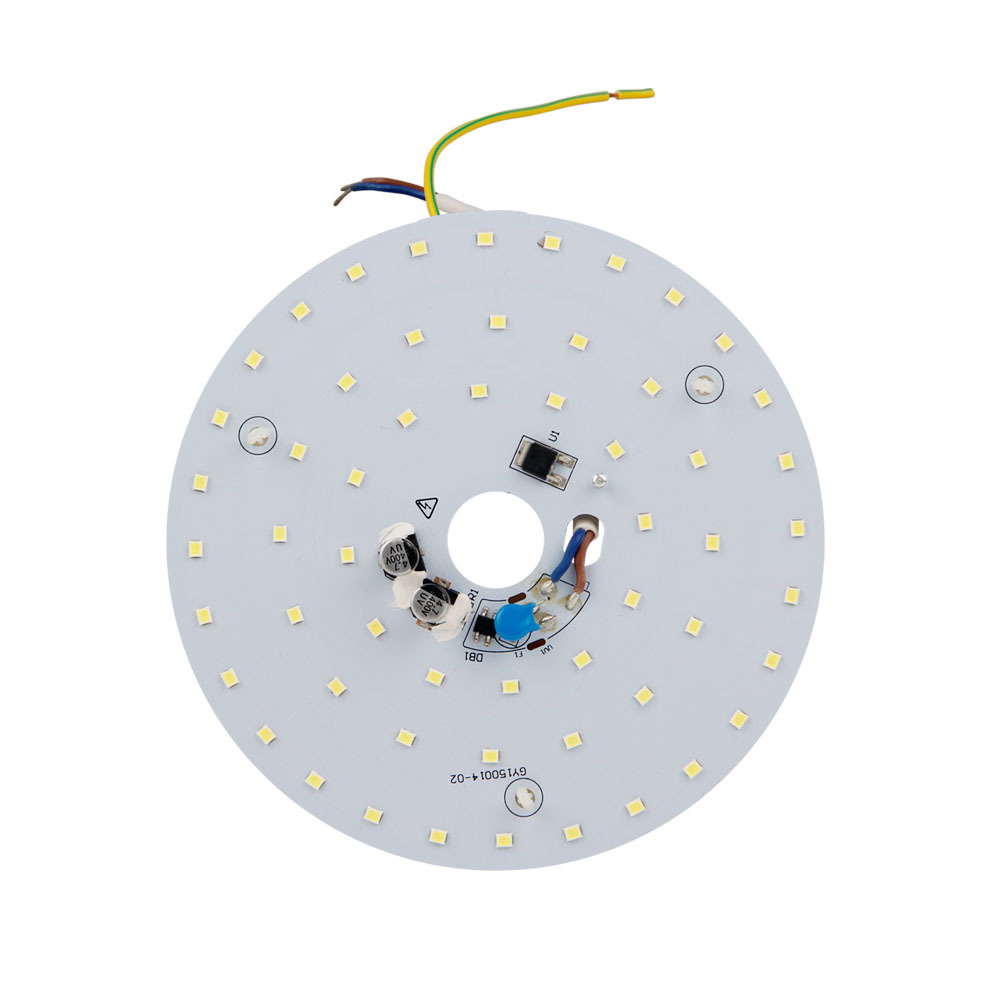

The picture above is a real shot of the 15W ceiling light LED module.

Product function of 15W led ceiling light module:

1. White Light Source 15W LED Ceiling Lamp Module 15W Light Source Modification Board consists

    of 56 lessons of large area coverage of LED beads, white light source.

2. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
3. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;
Constant power over voltage current protection function.
4. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
when the substrate temperature is too high.
5. Using PCT2835 patch LED bead, color rendering index is more than 80.
6. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
7. No ultraviolet , electromagnetic wave radiation.
8. The size of 15W PCB board can be customized according to customer requirements.
9. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

White light source 15W led light pane module application range:

Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps, LED downlights, fluorescent lamps, projection lamps, etc.

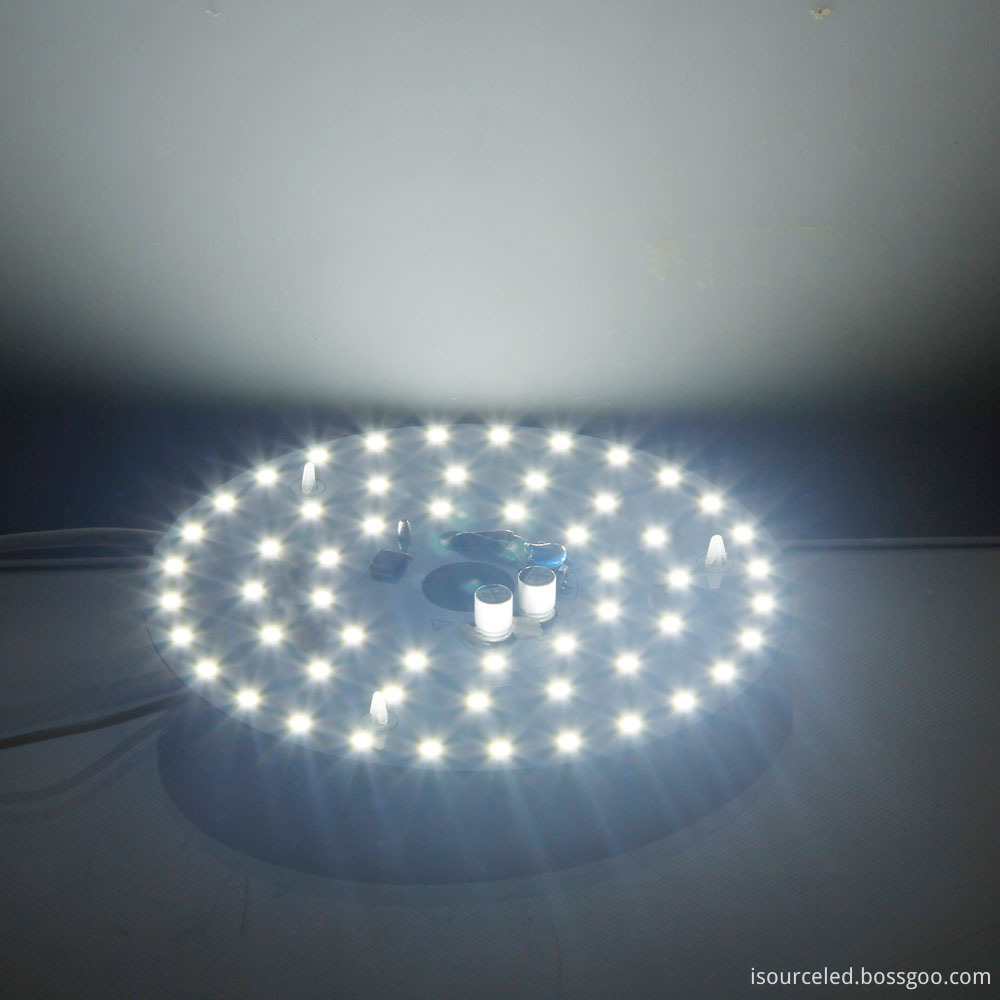

Lighting diagram of 15W led light board module

Technical parameters of white light source 15W ceiling lamp module:

15W led light board module installation guide:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED module,

   and fix the LED module and radiator with screws.

2. Attach the lens and screw it in place.

3. Ac 220V power supply is introduced for power test.

4.  It is recommended to use an insulating gasket at the bottom of the screw.

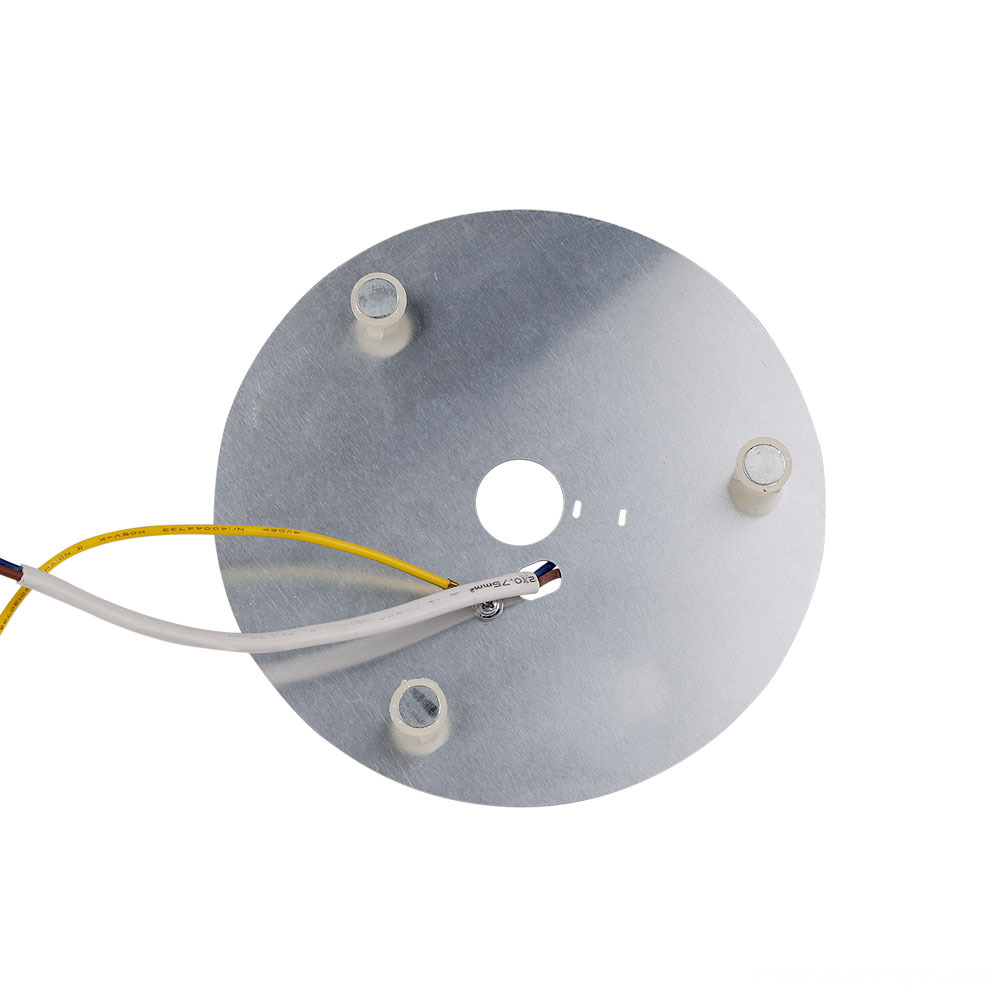

Base plate of 15W led light pane module(Figure)

 Use advice

1) This product has over temperature protection function, when the whole lamp temperature is too high,

    IC will automatically reduce the power to control the temperature rise,
