Dimming 40W AC LED Module for Ceiling Light

Unit Price: USD 12.1500 - 12.5500 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: CY40

LED Light Source: Piranha

1 LED Power: 0.3-0.5W

Power: 30W

LED Chips: Osram

Waterproof: Not Waterproof

Emitting Color: Warm White, Natural White

IP Rating: IP66

Chip Material: AlGaInP

LED Type: SMD 2835

Luminous: 3851.3 Lm

Size: Round 280*1.2mm

Luminous Efficiency: 106.4 Lm/w

CCT: 4053.8K

Ra: 94

Input Current: 0.278A

Additional Info

Packaging: L185*W165*H46mm , Single gross weight: 239 g

Productivity: 500

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 30000 One

Certificate: CE, RoHS, FCC,CCC,PSE

Port: Shekou,Yantian

Product Description

Dimming 40W AC LED Module for Ceiling Light introduction:The process of 40W module consists of 112 class LED lamp beads and light board. The net weight is 239 G. The yellow light source does not flash screen. It can be adjusted in three grades. Users can easily adjust the LED light through the intelligent lighting dimming system. Brightness, luminous flux 4216 lm, luminous efficiency 98.7 lm/w, PCB board is round, belonging to the dimming module series, so it can help reduce circuit cost and lamp size, Dimming 40W AC LED Module for Ceiling Light is 1.25MM thick aluminum Substrate, ceiling lamp, panel light, indispensable product material, ceiling lamp housing with dimming series of 40W panel light module, free assembly and lighting design is more convenient.The products are all international standards, we pay attention to quality, good products, good quality, good brand, and users can rest assured.

Dimming 40W AC LED Module for Ceiling Light video

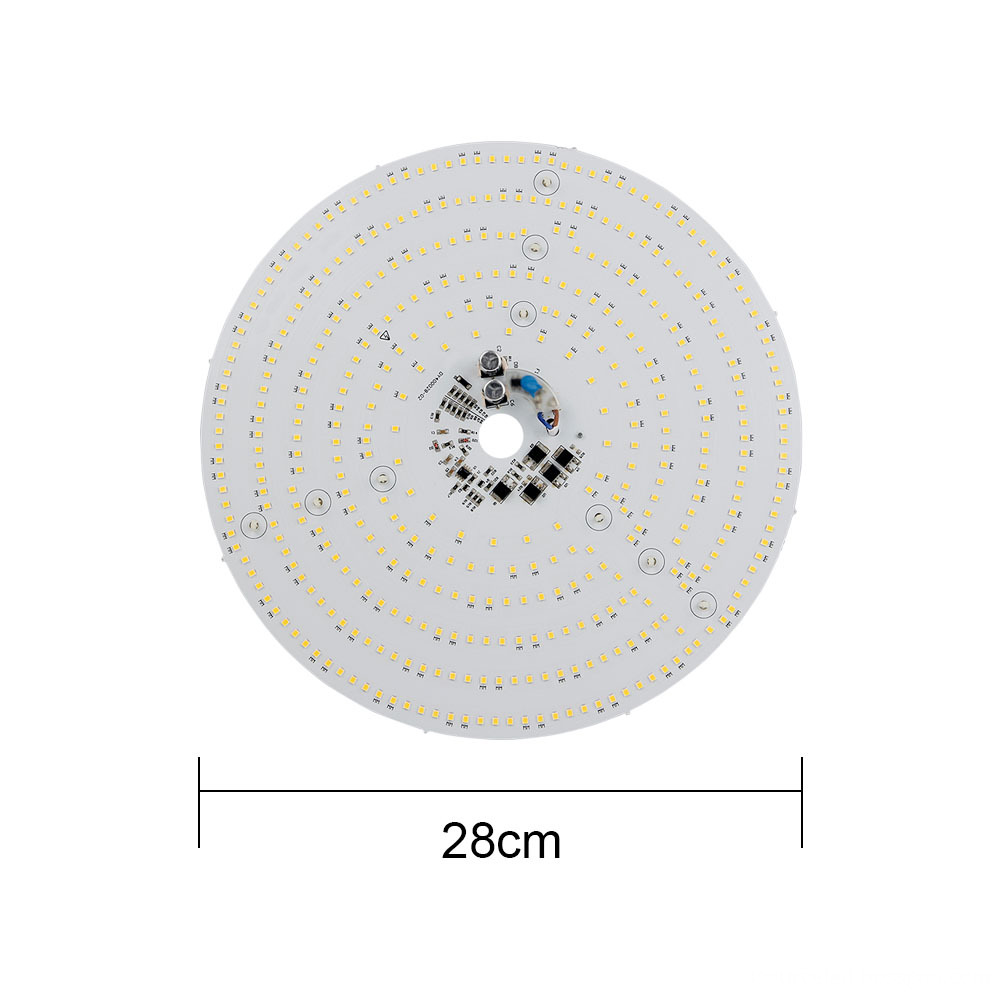

Dimming 40W AC LED Module for Ceiling Light size

Dimming 40W AC LED Module for Ceiling Light size

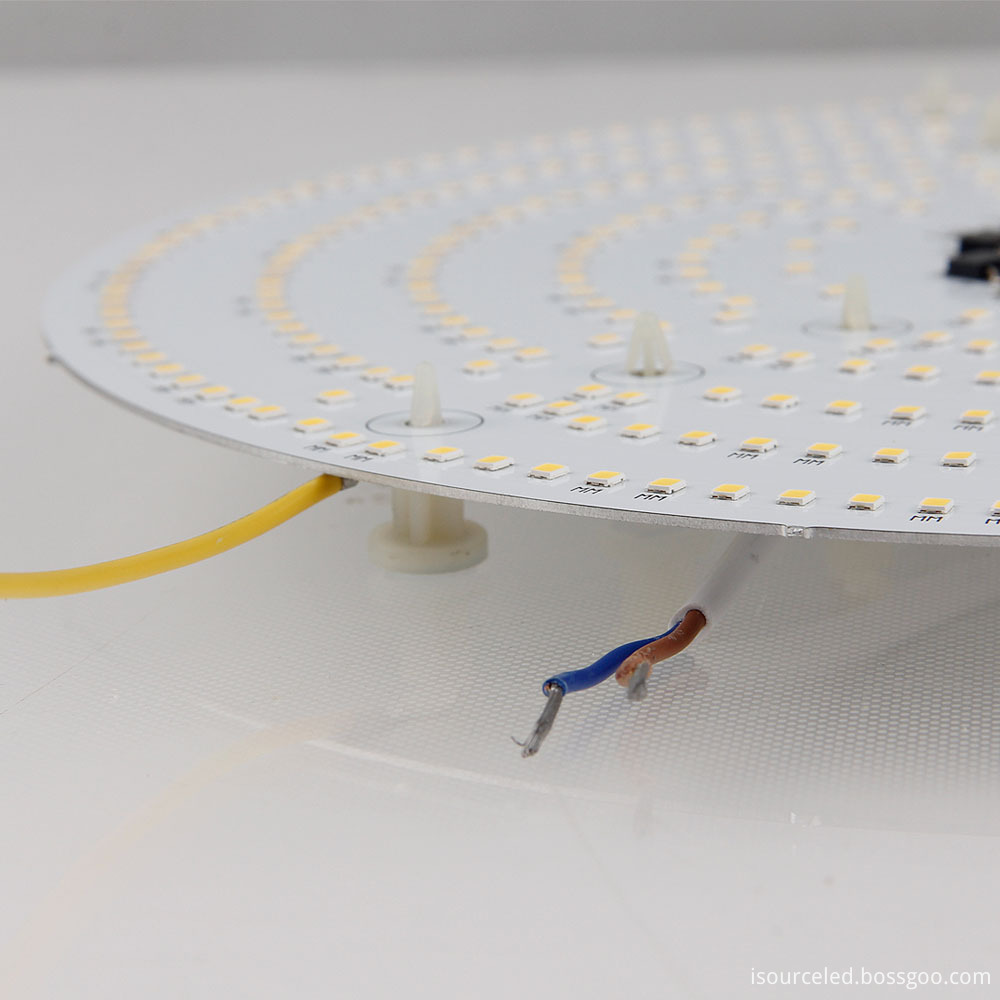

Dimming 40W AC LED Module for Ceiling Light side

Dimming 40W AC LED Module for Ceiling Light side

Technical parameters of Dimming 40W AC LED Module for Ceiling Light:

Type

CY40

Input voltage

AC220-240V 50HZ

Input Current

0.278A

Input Current

40W

Power Factor

0.657

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

3952.3 lm

luminous efficiency

99.3 lm/w

CCT

5053.8K

Ra

94

Size

Round 280*1.2mm

Weight

239 g

Thermal Conductivity

1.0W/m.K


White light 40W panel light dimming module application:

Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps,

LED downlights, fluorescent lamps, projection lamps, etc.

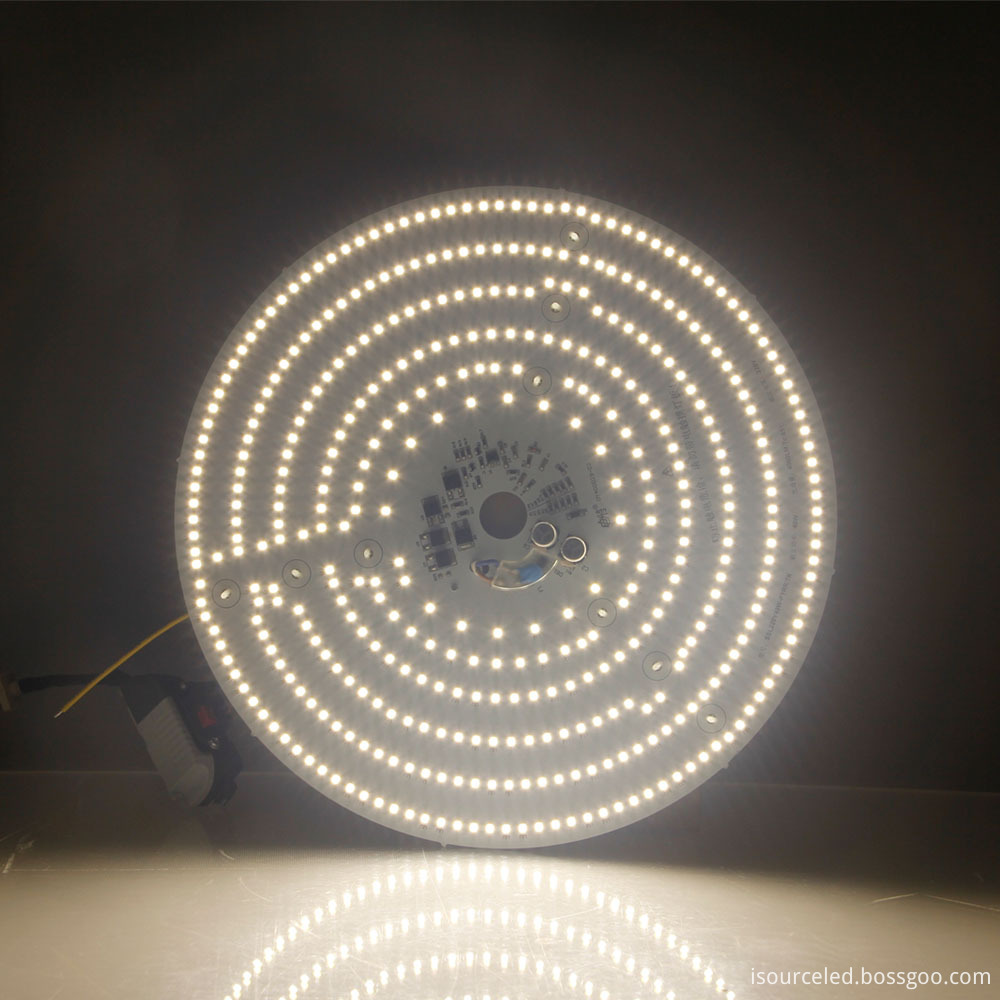

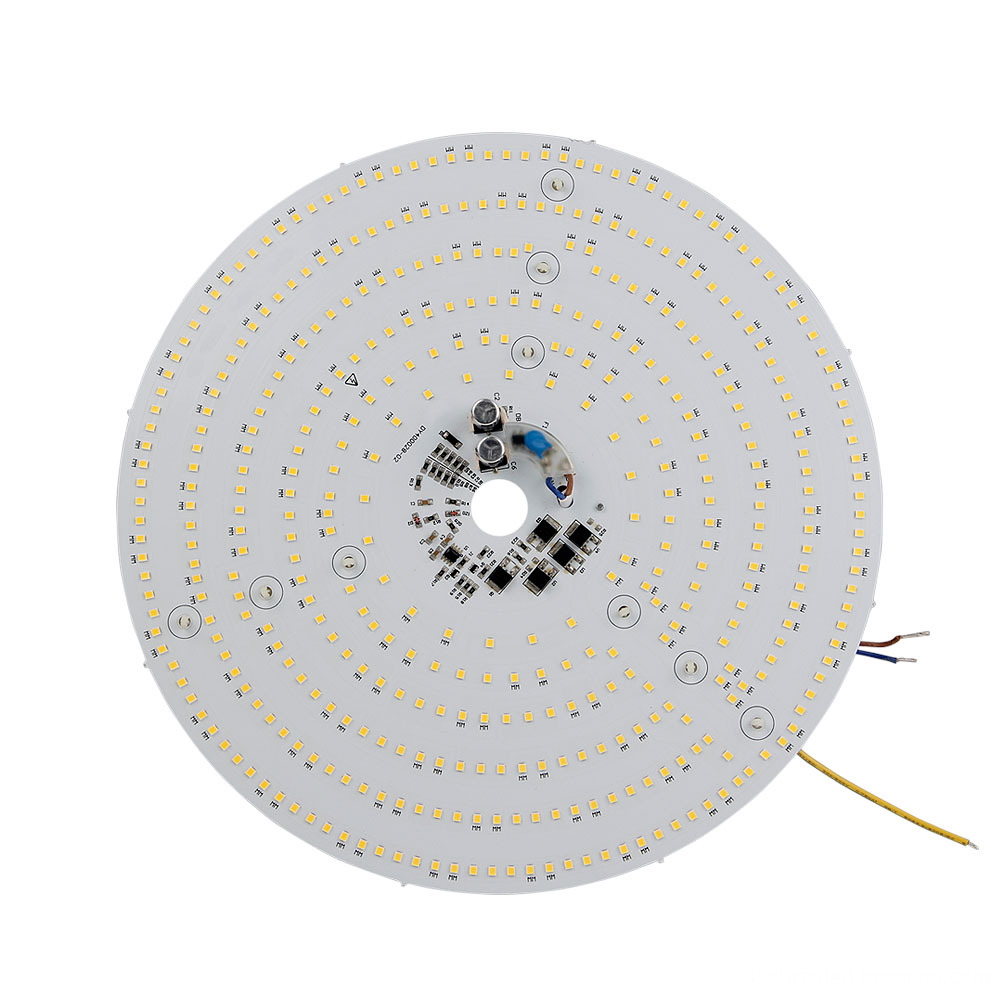

Dimming 40W AC LED Module for Ceiling Light front


Dimming 40W AC LED Module for Ceiling Light front

Dimming 40W AC LED Module for Ceiling Light power supply diagram

Dimming 40W AC LED Module for Ceiling Light power supply diagram


White light 40W light board dimming module product features:


1.Dimming 40W AC LED Module for Ceiling Light consists of 112 large-area LED beads and white light source.

2. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
3. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;
Constant power over voltage current protection function.
4. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
when the substrate temperature is too high.
5. Using PCT2835 patch LED bead, color rendering index is more than 80.
6. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
7. No ultraviolet , electromagnetic wave radiation.
8. The size of 40W PCB board can be customized according to customer requirements.
9. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.


isourceled, Illuminate you and me, walk together.
