CCT3710K 5W AC COB Module for Ceiling Light

Unit Price: USD 1.8000 - 2.0000 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: GY0502

LED Light Source: Piranha

Emitting Color: Warm White, Natural White

1 LED Power: 0.3-0.5W

Power: 5W

LED Chips: Osram

IP Rating: IP65

Waterproof: Not Waterproof

Chip Material: AlGaInP

LED Type: SMD 2835

Color Temperature: 2700K-4500K

Luminous Flux(lm): 98 Lm/w

Luminous: 486 Lm

CCT: 2700K-4500K

Ra: 81

Input Current: 0.0392A

Additional Info

Packaging: L185*W165*H46mm Single gross weight: 21g

Productivity: 600

Brand: Isourceled

Transportation: Ocean,Land,Air

Place of Origin: Shen Zhen

Supply Ability: 30000 pcs/month

Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001

Port: Shekou,YANTIAN

Product Description

The CCT3710K 5W AC COB Module for Ceiling Light has an input current of 0.045A, a life of more than 30,000 hours, a circular shape, power: 5W, model: GY05-2, LED warm white 5W ceiling lamp module net weight 21 G, size: 71mm*1.2mm, consisting of 14 lessons LED lamp beads, net weight 21 G, warm white light (WW) 2700-3200k, no flash screen, luminous flux 543 lm, luminous efficiency 95 lm/w, CCT3710K 5W AC COB Module for Ceiling Light is a 1.25mm thick aluminum substrate, ceiling lamp, and a product module that is indispensable in the panel lamp.

CCT3710K 5W AC COB Module for Ceiling Light video

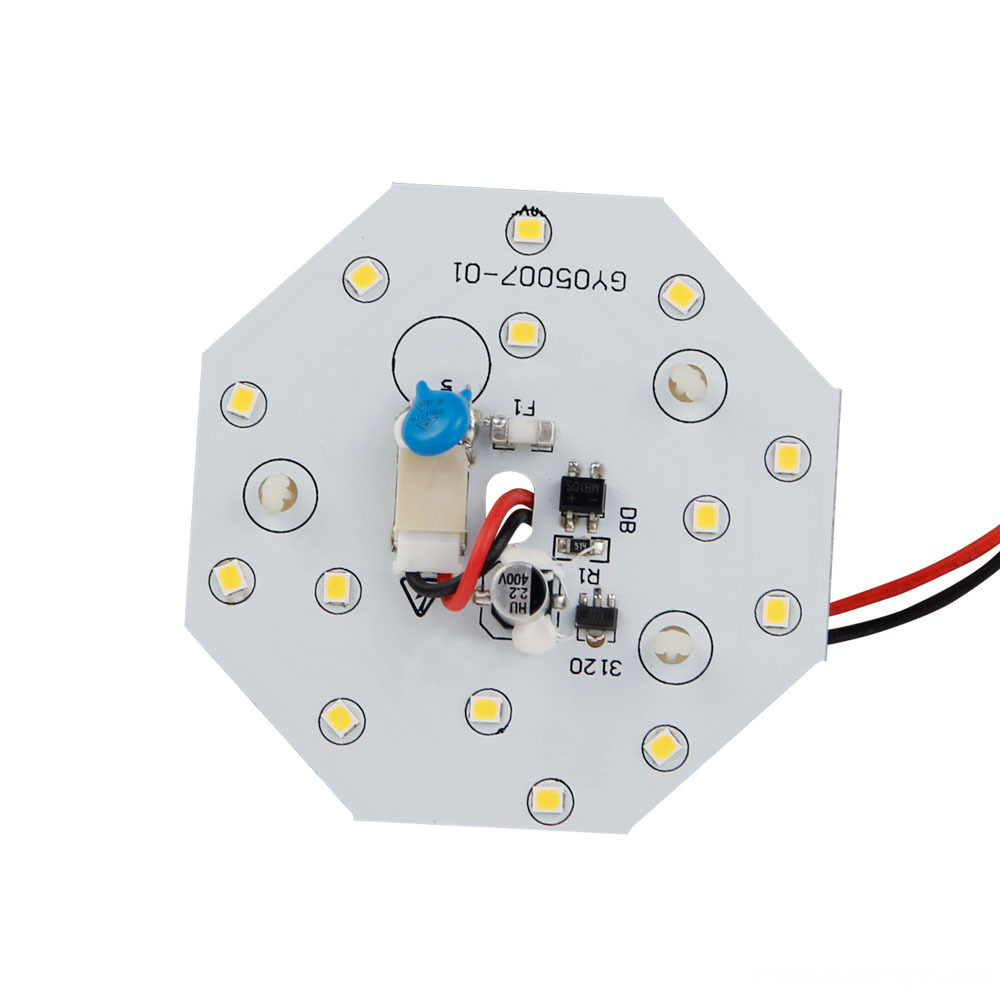

CCT3710K 5W AC COB Module for Ceiling Light front view

CCT3710K 5W AC COB Module for Ceiling Light front view

The luminaire design adopts the chip-type LED lamp bead constant current technology, which has high efficiency, low heat and high constant current precision.

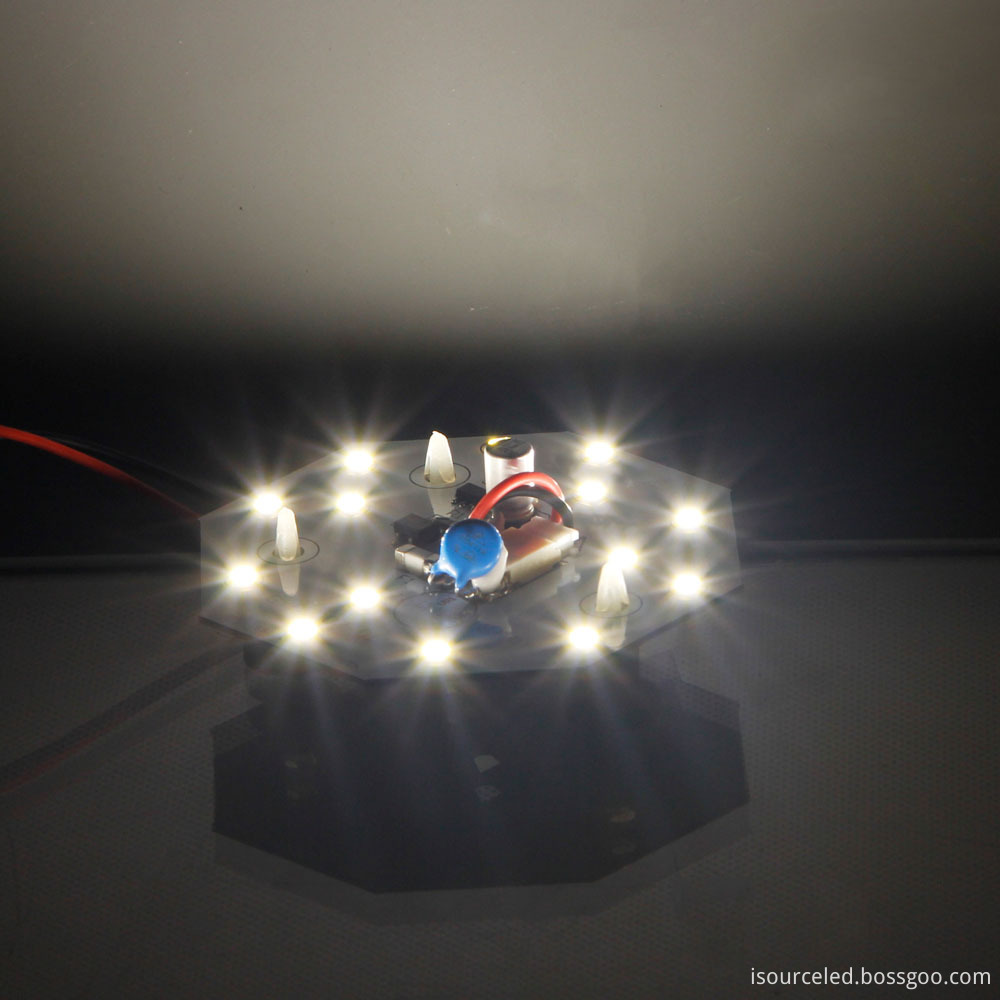

CCT3710K 5W AC COB Module for Ceiling Light light

CCT3710K 5W AC COB Module for Ceiling Light light

The original packaging process is used to emit energy in the form of electrons. The product has no spot color circle, high color rendering,

 vibration resistance and good beam concentration consistency.

CCT3710K 5W AC COB Module for Ceiling Light lamp technical parameters:

Type

GY05-02

Input Voltage

AC220-240V 50HZ

Input Current

0.052A

Power

5W

Power Factor

0.61

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

485 lm

luminous efficiency

96 lm/w

Color temperature

2700K-4500K

Color rendering index

81

Size

Φ71*75mm

Weight

21 g

Thermal Conductivity

1.0W/m.K

ceiling module Using PCT2835 patch LED bead, color rendering index is more than 80.

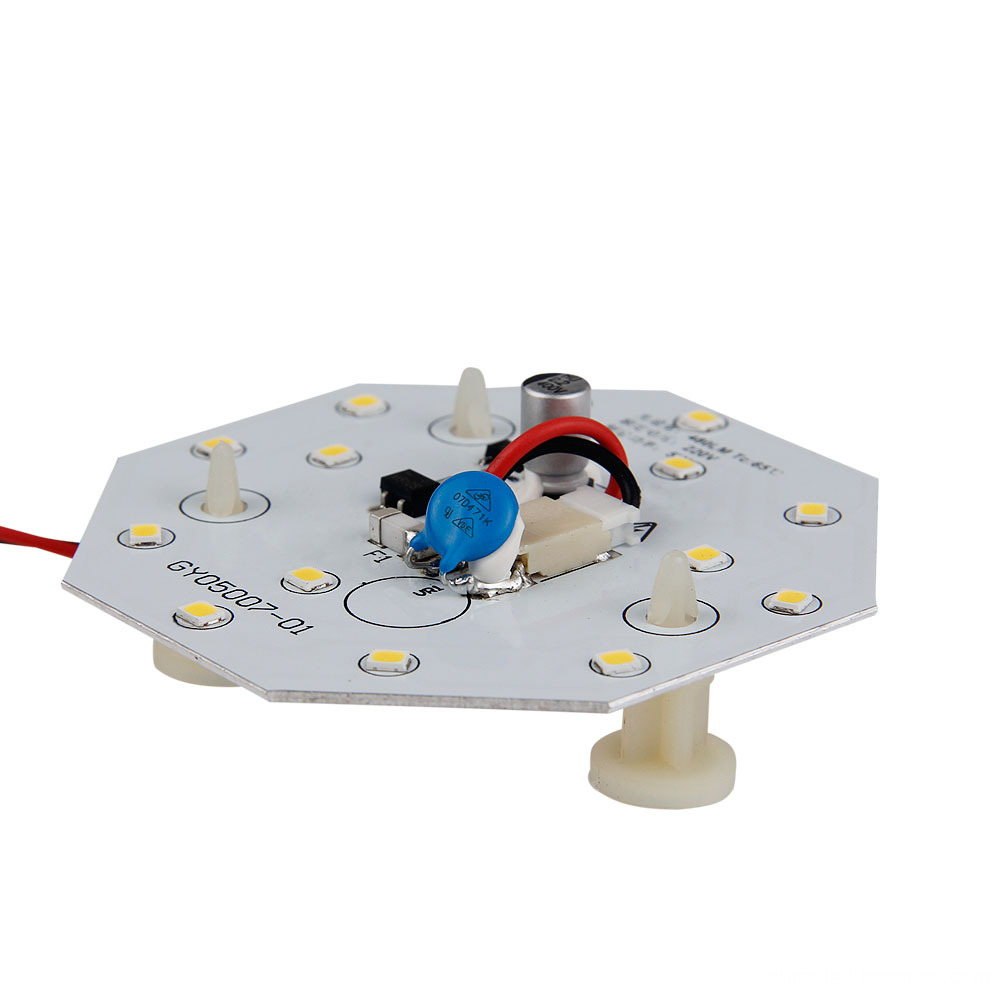

Side view of CCT3710K 5W AC COB Module for Ceiling Light light

Side view of CCT3710K 5W AC COB Module for Ceiling Light light

Aluminum substrate material, reasonable structural design, the base has mounting holes, easy to install.

Since the establishment of the company, the technology has been continuously innovated, and has made major breakthroughs in the field of high-power LED lighting, and has developed a series of LED lighting products. It is a powerful high-tech enterprise and is a Research and development unit for semiconductor LED lighting engineering.


Isource lighting Co., Ltd Pursue outstanding quality and illuminate colorful life

If you have any question, please feel free to contact us.
