Warm White RoHS Certification 9W AC COB Module

Unit Price: USD 1.8900 - 2.1900 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: AY0902

LED Light Source: Piranha

Emitting Color: Warm White, Natural White

1 LED Power: 0.3-0.5W

Power: 9W

LED Chips: Osram

IP Rating: IP65

Waterproof: Not Waterproof

Chip Material: AlGaInP

LED Type: SMD 2835

Color Temperature: 2700K-4500K

Input Current: 0.072A

Luminous Flux(lm): 101.5 Lm/w

Luminous: 963 Lm

CCT: 85

Additional Info

Packaging: L185*W165*H46mm Single gross weight: 46g

Productivity: 1000

Brand: Isourceled

Transportation: Ocean,Land,Air

Place of Origin: Shen Zhen

Supply Ability: 80000 pcs/month

Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001

Port: Shekou,YANTIAN

Product Description

Warm White RoHS Certification 9W AC COB Module is a round piece, power: 9W, model: GY090011-1, 9W AC module net weight 46 G, size: 113*1.2mm, input current 0.086A, by 84 Class smd 2835 LED lamp bead, warm white light (WW) 2700-4200k, no flash screen, luminous flux 968 lm, light efficiency 101.3 lm/w, Warm White RoHS Certification 9W AC COB Module is a whole 1.25MM thick aluminum substrate It belongs to the ceiling lamp, and the product module material is indispensable in the panel lamp. It is widely used in hotels, bars, western restaurants, cafes, home taste decoration, high-end leisure places and so on.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

Warm White RoHS Certification 9W AC COB Module video

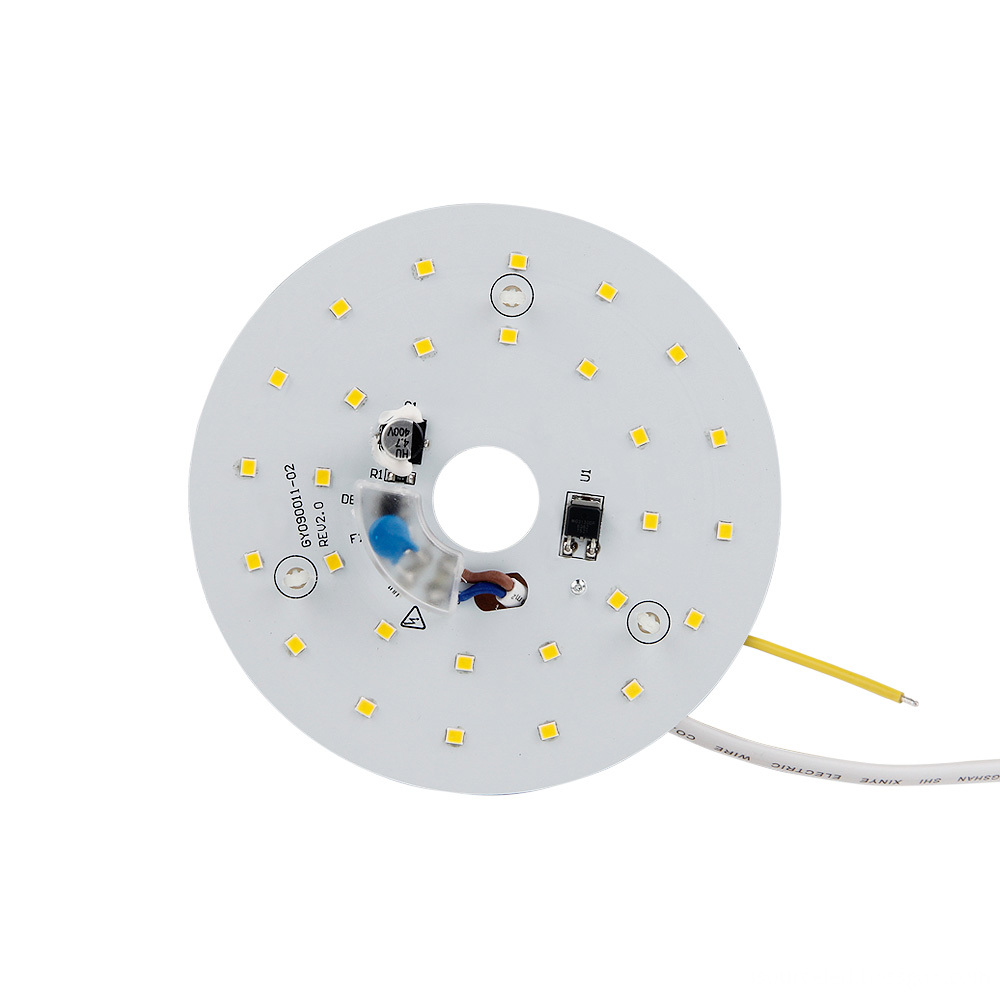

Front view of Warm White RoHS Certification 9W AC COB Module

Front view of Warm White RoHS Certification 9W AC COB Module

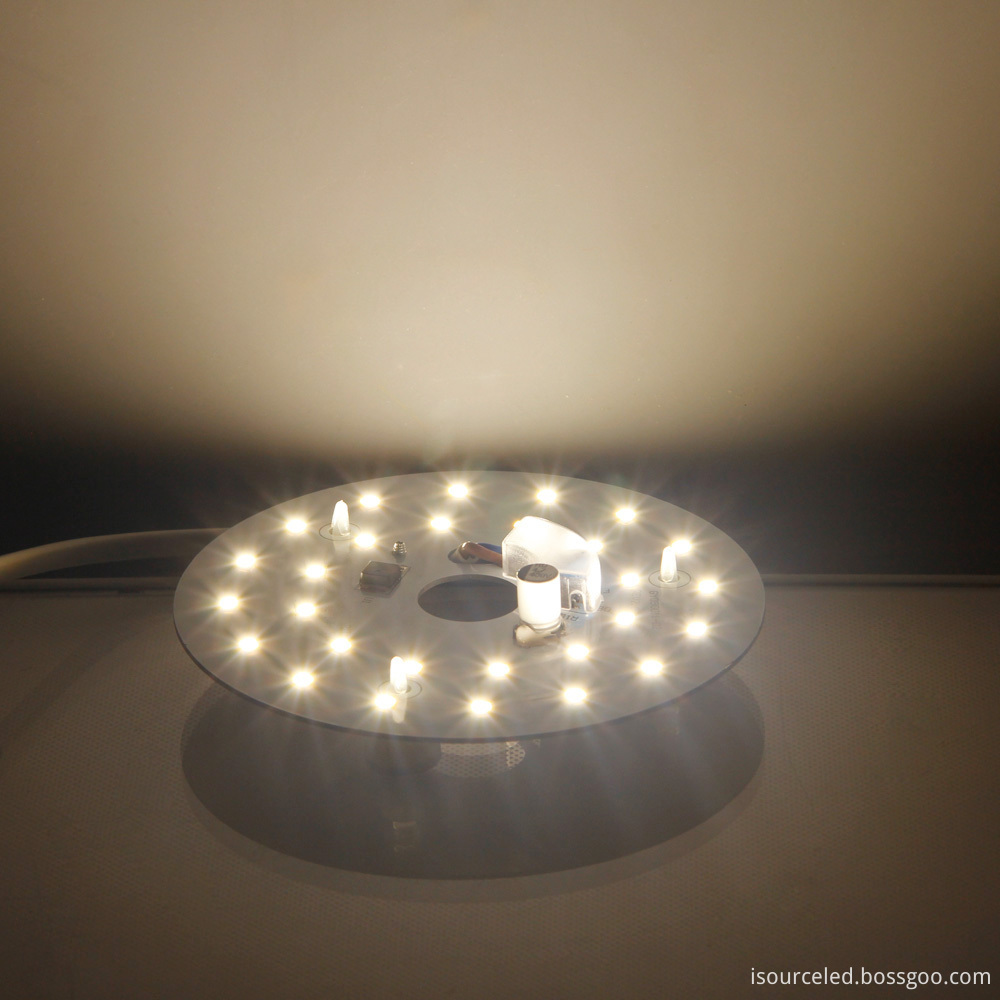

Warm White RoHS Certification 9W AC COB Module

Warm White RoHS Certification 9W AC COB Module

The original packaging process is used to emit energy in the form of electrons. The product has no spot color circle, high color rendering,

 vibration resistance and good beam concentration consistency.

Warm white light 9W ceiling lamp module technical parameters:

Type

GY090011-02

Input Voltage

AC 220-240V 50HZ

Input Current

0.073A

Power

9W

Power Factor

0.59

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

926 lm

luminous efficiency

103.3 lm/w

Color temperature

2700K-4500K

Color rendering index

87

Size

Φ113*1.2mm

Weight

46 g

Thermal Conductivity

1.0W/m.K

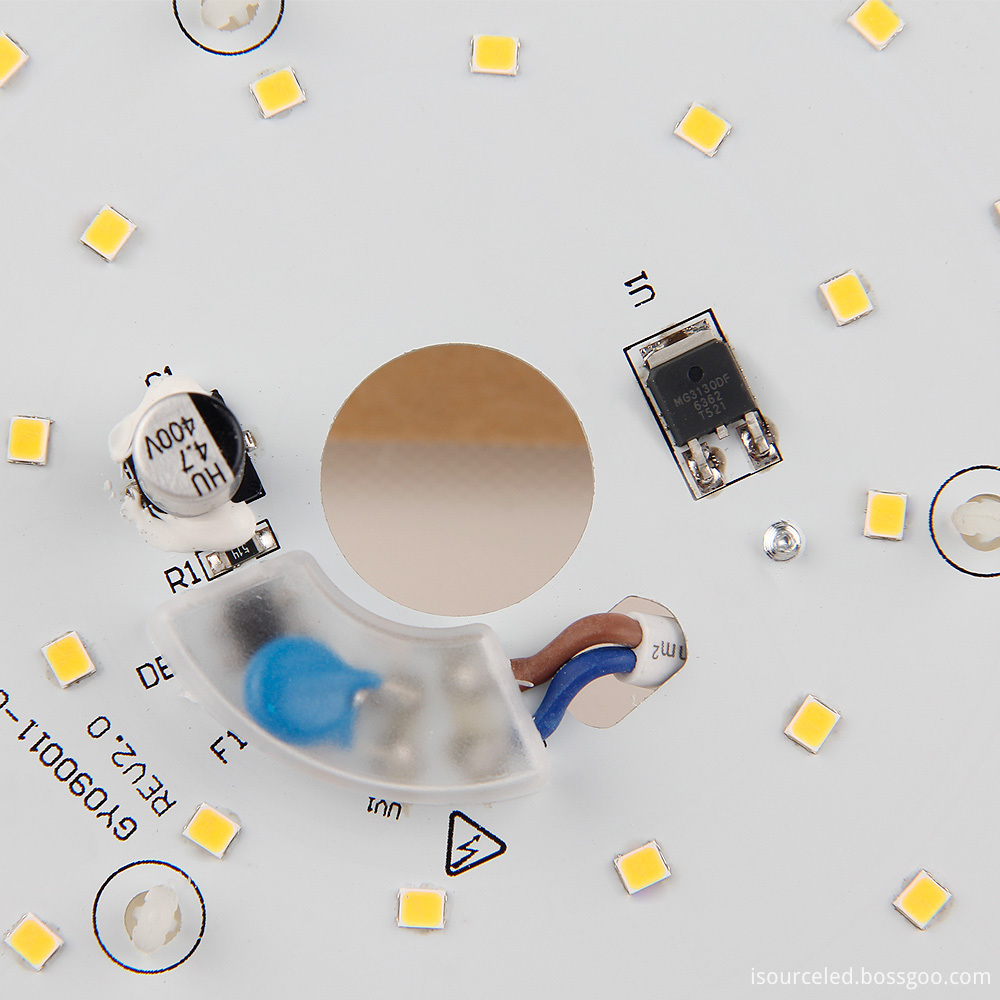

lamp module Using PCT2835 patch LED bead, color rendering index is more than 80.

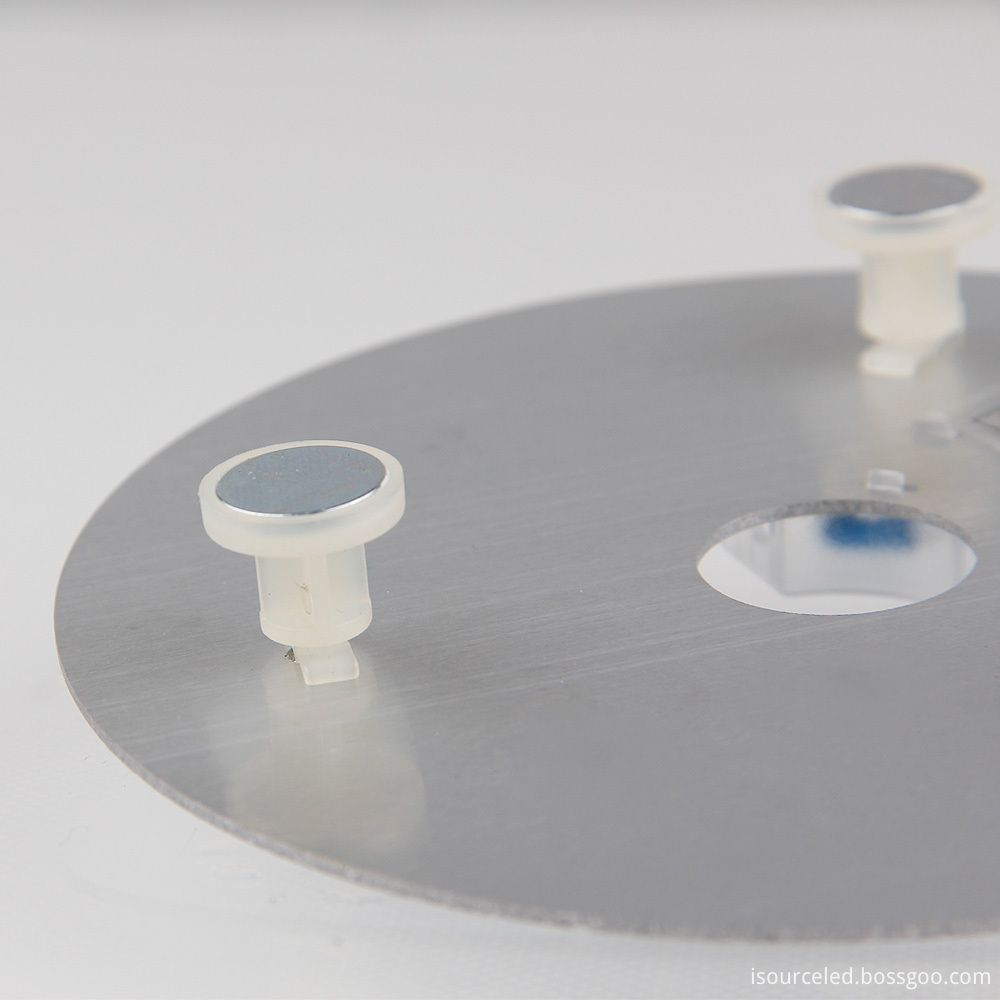

bottom picture of Warm White RoHS Certification 9W AC COB Module

Warm white light bottom picture of RoHS Certification 9W AC COB Module


Warm white 9W side of the RoHS Certification 9W AC COB Module

Warm white 9W side of the RoHS Certification 9W AC COB Module

Using the most advanced light distribution technology, the best optical distribution, the output rate of the lamps can reach more than 90%.
