Warm 24W AC COB Module for Ceiling Light

Unit Price: USD 5.0500 - 5.3500 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: GY2402

LED Light Source: Piranha

Emitting Color: Warm White, Natural White

1 LED Power: 0.3-0.5W

Power: 30W

LED Chips: Osram

IP Rating: IP65

Waterproof: Not Waterproof

Chip Material: AlGaInP

LED Type: SMD 2835

Color Temperature: 2700K-4500K

Color Rendering Index: 86.5

Luminous Flux(lm): 106.6 Lm/w

Luminous: 2453 Lm

Input Current: 0.185A

Additional Info

Packaging: L185*W165*H46mm Single gross weight: 130g

Productivity: 600

Brand: Isourceled

Transportation: Ocean,Land,Air

Place of Origin: Shen Zhen

Supply Ability: 30000 pcs/month

Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001

Port: Shekou,YANTIAN

Product Description

Warm 24W AC COB Module for Ceiling Light introduction: It is used in ceiling lamps, panel lights and floodlights. Warm 24W AC COB Module for Ceiling Light process input current 0.162A, power: 24W, round shape, model: GY2402, Module net weight 130 G, size: 210mm*1.2mm, by 84 lessons smd 2835 LED Lamp bead composition, color rendering index greater than 80, life can reach more than 30,000 hours, warm white light (WW) 2700-4500k, no flash screen, anti-static, 3 years replacement, luminous flux 2478 lm, luminous efficiency 106.1 lm / w, Warm 24W AC COB Module for Ceiling Light is a 1.25mm thick aluminum substrate for shops, hospitals, offices, restaurants, restaurants, waiting rooms, etc.

Warm 24W AC COB Module for Ceiling Light video

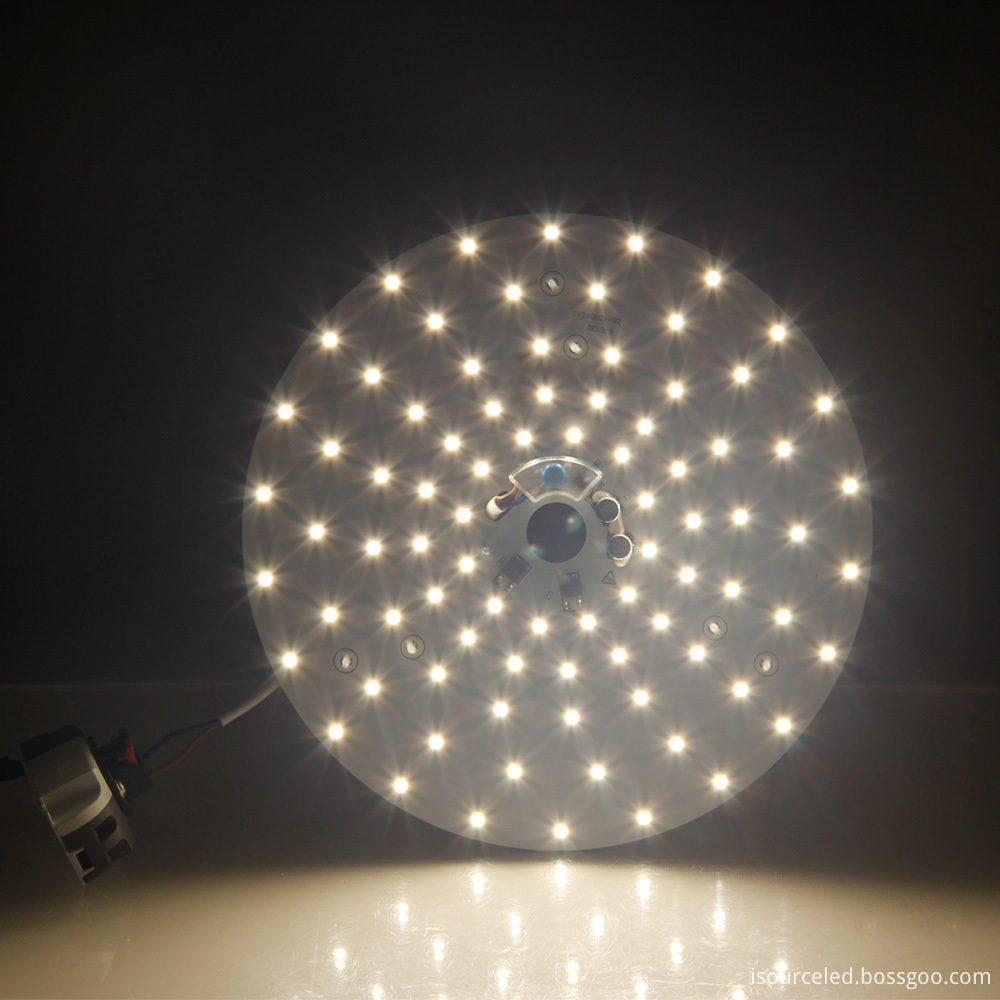

Warm 24W AC COB Module for Ceiling Light front

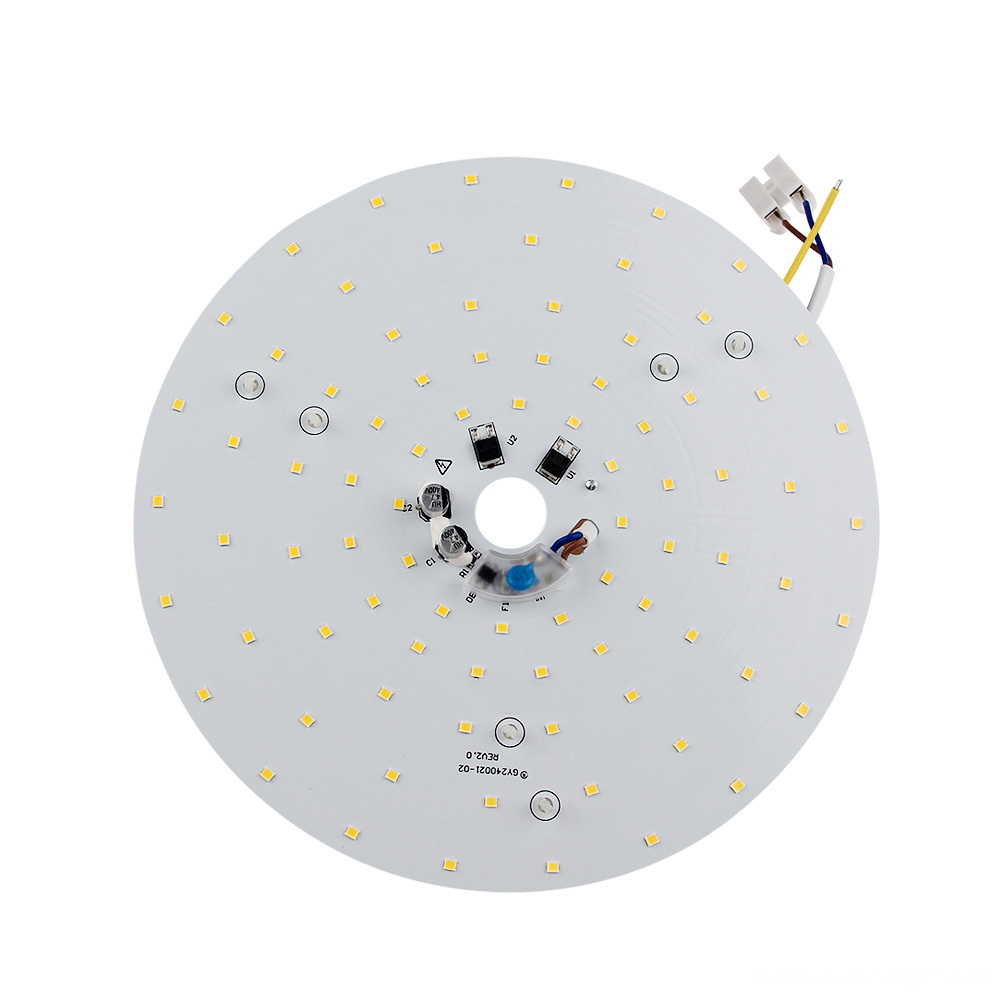

Warm 24W AC COB Module for Ceiling Light front

The luminaire design adopts the chip-type LED lamp bead constant current technology, which has high efficiency, low heat and high constant current precision.


Luminescent Chart of Warm 24W AC COB Module for Ceiling Light

Luminescent Chart of Warm 24W AC COB Module for Ceiling Light


Technical parameters of Warm 24W AC COB Module for Ceiling Light

Type

GY2402

Input Voltage

AC220-240V 50HZ

Input Current

0.193A

Power

24W

Power Factor

0.589

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

2538 lm

luminous efficiency

103.5 lm/w

Color temperature

2700K-4500K

Color rendering index

86

Size

Φ210*1.2mm

Weight

130 g

Thermal Conductivity

1.0W/m.K

1, energy saving.

2, life LED lights are long.

3, the applicability is good, because the single LED is small in size and can be made into any shape.

4, the response time is short,

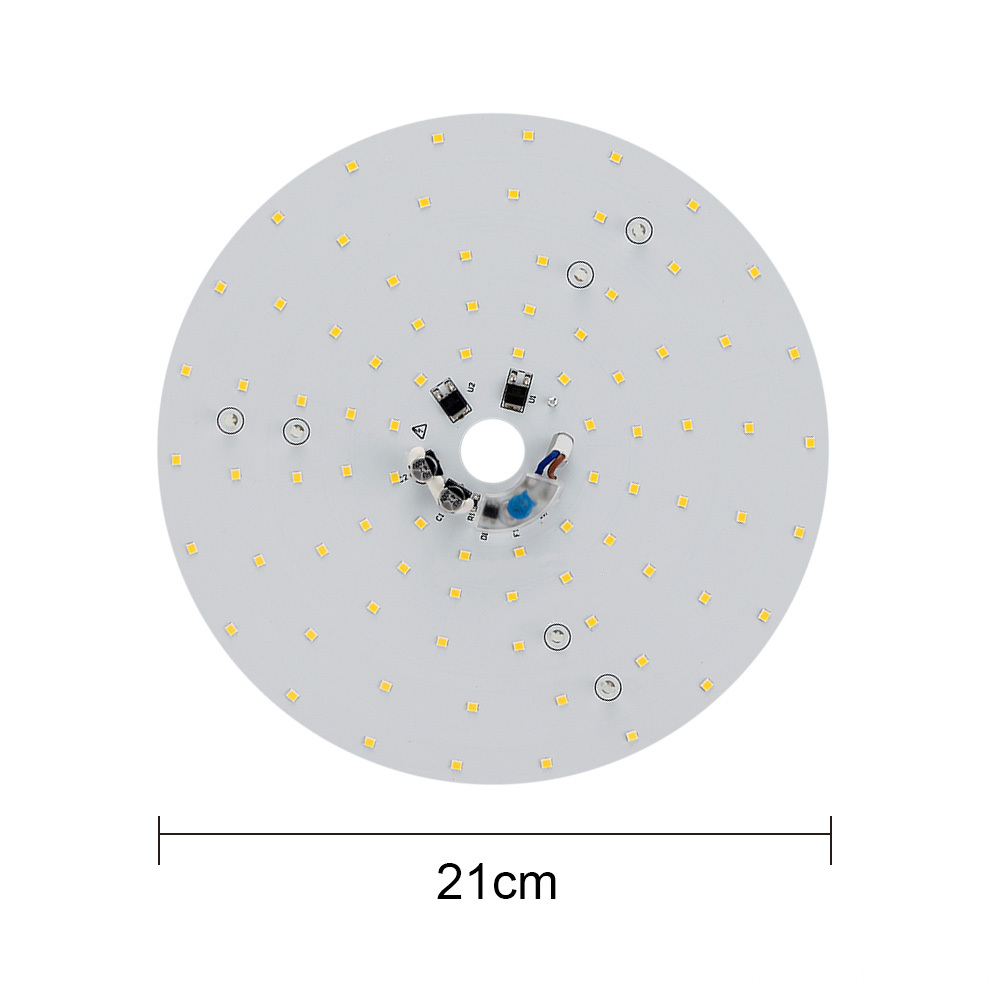

Warm 24W AC COB Module for Ceiling Light

Warm 24W AC COB Module for Ceiling Light

Using the most advanced light distribution technology, the best optical distribution, the output rate of the lamps can reach more than 90%

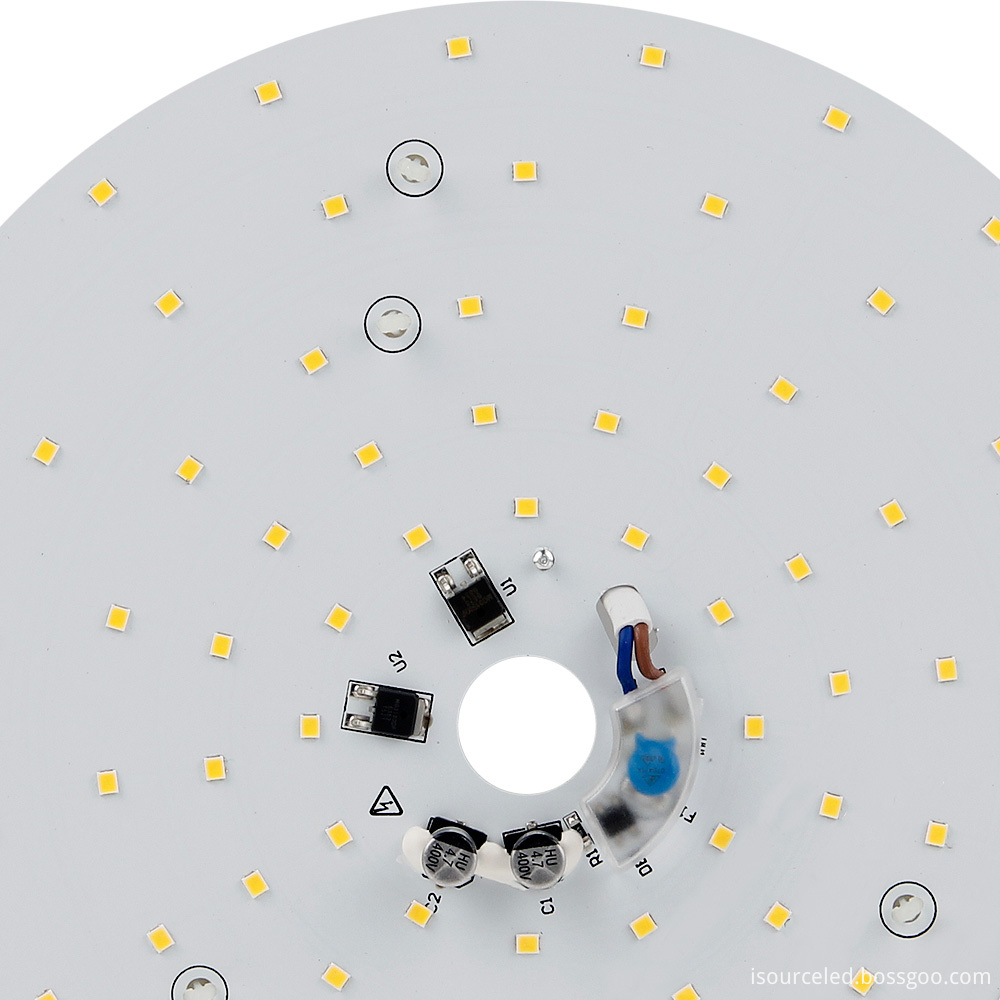

Side view of Warm 24W AC COB Module for Ceiling Light

PCT2835 aluminum substrate material, reasonable structural design, the base has a mounting hole, easy to install.
