Warm 15W AC COB Module for Ceiling Light

Unit Price: USD 3.0800 - 3.4800 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: GY1502

LED Light Source: Piranha

Emitting Color: Warm White, Natural White

1 LED Power: 0.3-0.5W

Power: 15W

LED Chips: Osram

IP Rating: IP65

Waterproof: Not Waterproof

Chip Material: AlGaInP

LED Type: SMD 2835

Color Temperature: 2700K-4500K

Luminous Flux(lm): 105.6 Lm/w

Luminous: 1579 Lm

Input Current: 0.116A

Color Rendering Index: 84.5

Additional Info

Packaging: L185*W165*H46mm Single gross weight: 63g

Productivity: 600

Brand: Isourceled

Transportation: Ocean,Land,Air

Place of Origin: Shen Zhen

Supply Ability: 30000 pcs/month

Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001

Port: Shekou,YANTIAN

Product Description

The process of Warm 15W AC COB Module for Ceiling Light is input current 0.0681A, power: 15W, life can reach more than 30,000 hours, shape is round block, model: GY15-2, lamp module net weight 63 G, size: 140 mm*1.2 mm, composed of 58 lesson LED beads, warm white light (WW) 2700-4400k, no flash screen, light flux 1534.47, light efficiency 106.8 lm/w, Warm 15W AC COB Module for Ceiling Light is. The whole 1.25MM thick aluminum substrate, Low light loss, high luminous efficiency, low voltage and current required, ceiling lamp and panel lamp are indispensable product module materials.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

Warm 15W AC COB Module for Ceiling Light video

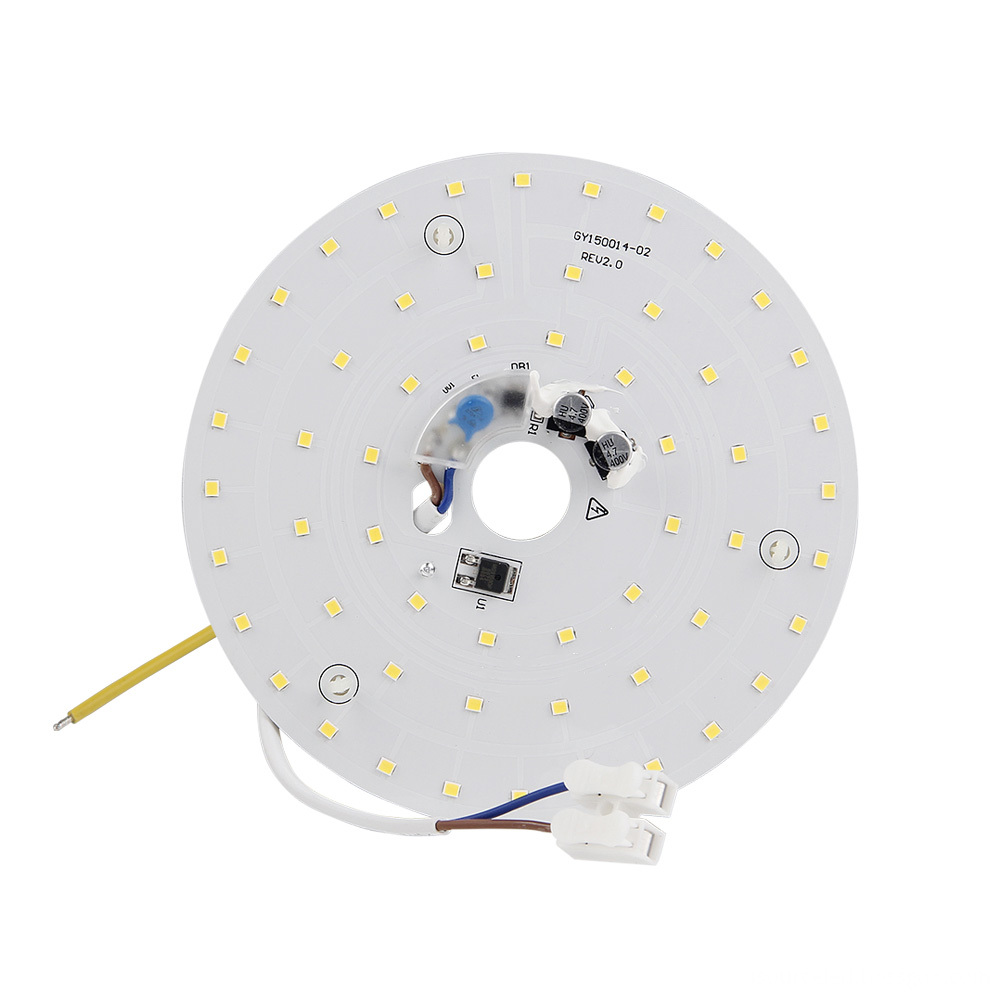

Front of Warm 15W AC COB Module for Ceiling Light

Front of Warm 15W AC COB Module for Ceiling Light

The lamp design adopts the patch LED bead constant current technology, which has high efficiency, low heat and high constant current accuracy.

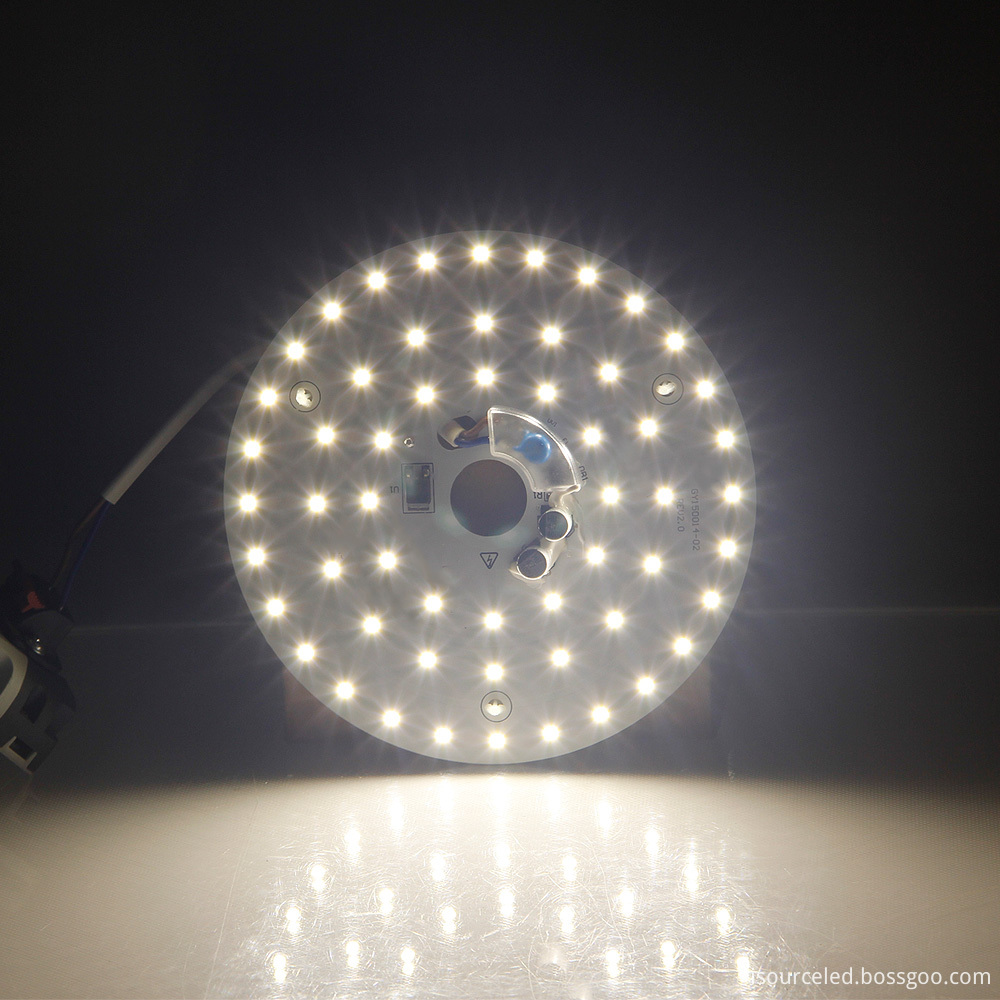

Luminescent Chart of Warm 15W AC COB Module for Ceiling Light

Luminescent Chart of 15W Warm White LED Roof Lamp Module

The product has no spot color circle, high color rendering, vibration resistance and good consistency of beam concentration.

Technical parameters of warm white 15W ceiling lamp module:

Type

GY150014-2

Input Voltage

AC220-240V 50HZ

Input Current

0.117A

Power

15W

Power Factor

0.59.3

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

1567 lm

luminous efficiency

103.6 lm/w

Color temperature

2700K-4500K

Color rendering index

82.3

Size

Φ140*1.2mm

Weight

63 g

Thermal Conductivity

1.0W/m.K

Warm white light 15W led ceiling lamp module product function:

 1. Energy saving.

 2. Long life LED lamp.

 3. Good applicability, because the size of a single LED is small, it can be made into any shape.

 4. Short response time.

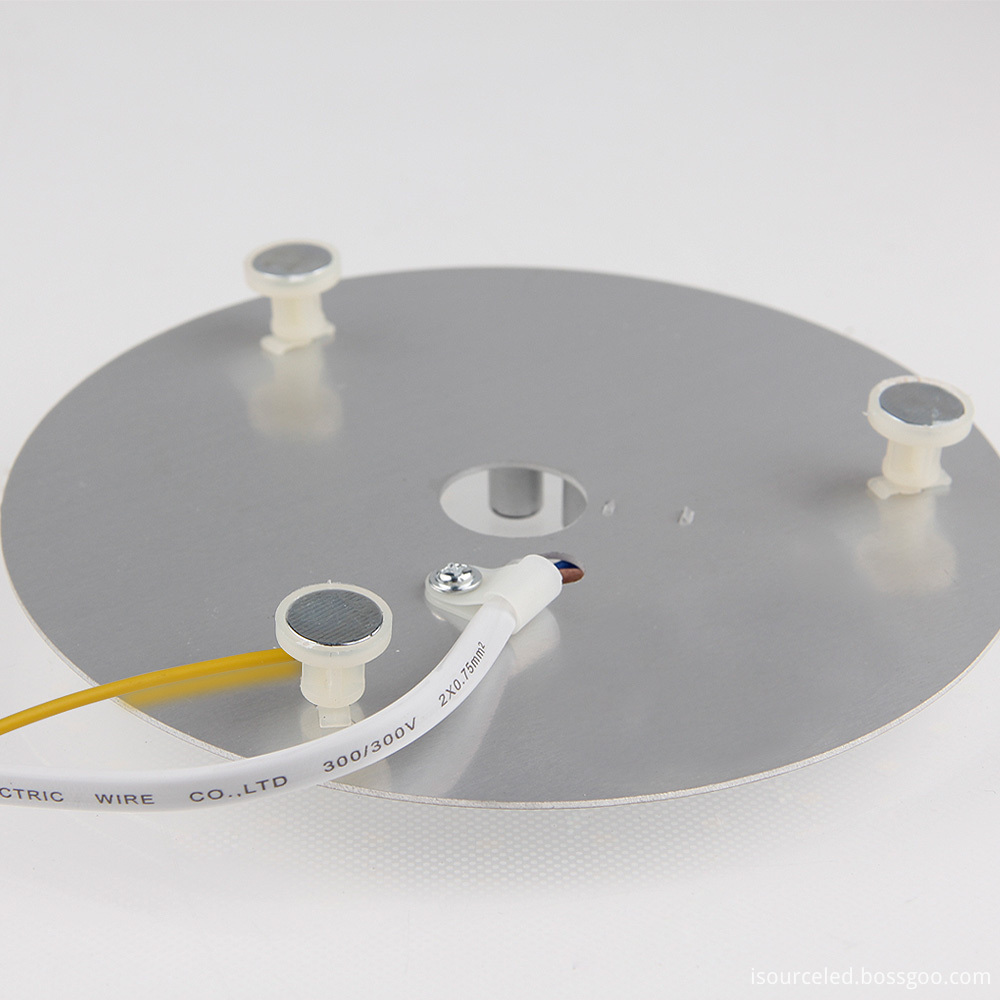

Warm white light bottom picture of Warm 15W AC COB Module for Ceiling Light

Warm white light bottom picture of Warm 15W AC COB Module for Ceiling Light

PCT2835 aluminum substrate material, reasonable structural design, the base has a mounting hole, easy to install.

Our team

LED ceiling lamps and LED light sources.
Since the establishment of the company, the technology has been continuously innovated, and has made major breakthroughs in the field of high-power LED lighting, and has developed a series of LED lighting products. It is a powerful high-tech enterprise and is a Research and development unit for semiconductor LED lighting engineering.

If you have any question, please feel free to contact us.
