Colorable 24W AC COB Module for flood light

Unit Price: USD 8.4600 - 8.8600 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: DY2401

LED Light Source: Piranha

Emitting Color: Pure White, Natural White

1 LED Power: 0.3-0.5W

Power: 30W

LED Chips: Osram

Waterproof: Not Waterproof

Chip Material: AlGaInP

LED Type: SMD 2835

Luminous Flux(lm): 2598 Lm

Size: Round 210*1.2mm

CCT: 2700K-6500K

Ra: 91.5

Input Current: 0.184A

Additional Info

Packaging:  L185*W165*H46mm, Single gross weight: 126 g

Productivity: 500

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 30000 pcs/month

Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001

Port: Shekou,Yantian

Product Description

Colorable 24W AC COB Module for flood light is a round piece, model: DY2402, which belongs to the color modulation module series, adjustable three grades, 24W light board module net weight is 126 G, composed of 252 class LED lamp beads, linear Constant current IC control, photoelectric integration, stable performance, reliable, long life, positive white light does not flash screen, luminous flux 2598 lm, light efficiency 104.8 lm/w, isourceled company's innovative products, ceiling light board is 1.25MM thickened Aluminum substrate, which is a ceiling lamp, the product material module is indispensable inside the panel lamp. The ceiling lamp housing is freely assembled with the Colorable 24W AC COB Module. It is suitable for hotels, bars, western restaurants, cafes, home interior decoration, etc. Indoor lighting.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, Specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

Colorable 24W AC COB Module for flood light video

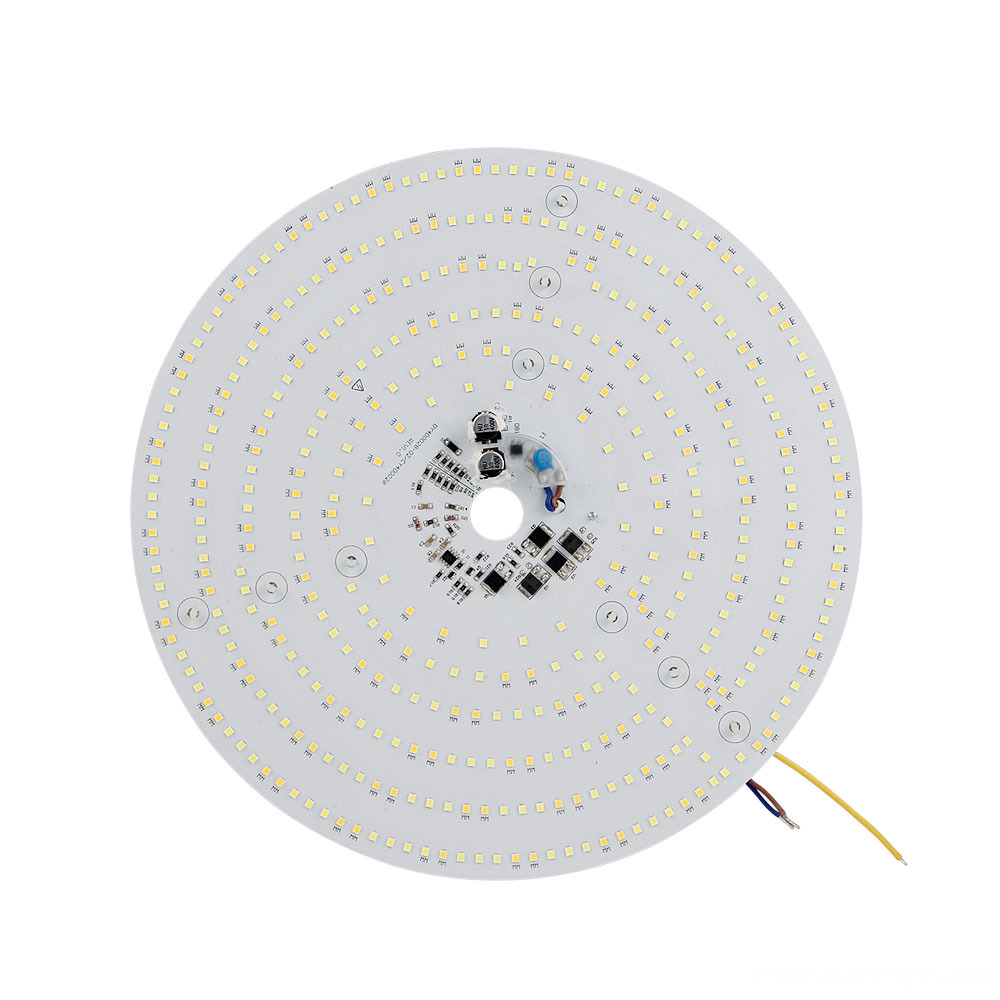

Front side of a Colorable 24W AC COB Module for flood light

Front view of a Colorable 24W AC COB Module for flood light

Product features of the Colorable 24W AC COB Module for flood light:


1. Colorable 24W AC COB Module for flood light Board consists

    of 252 lessons of large area coverage of LED beads, white light source.

2. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
3. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;
    Constant power over voltage current protection function.
4. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
    when the substrate temperature is too high.
5. Using PCT2835 patch LED bead, color rendering index is more than 80.
6. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
7. No ultraviolet , electromagnetic wave radiation.
8. The size of 24W PCB board can be customized according to customer requirements.
9. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

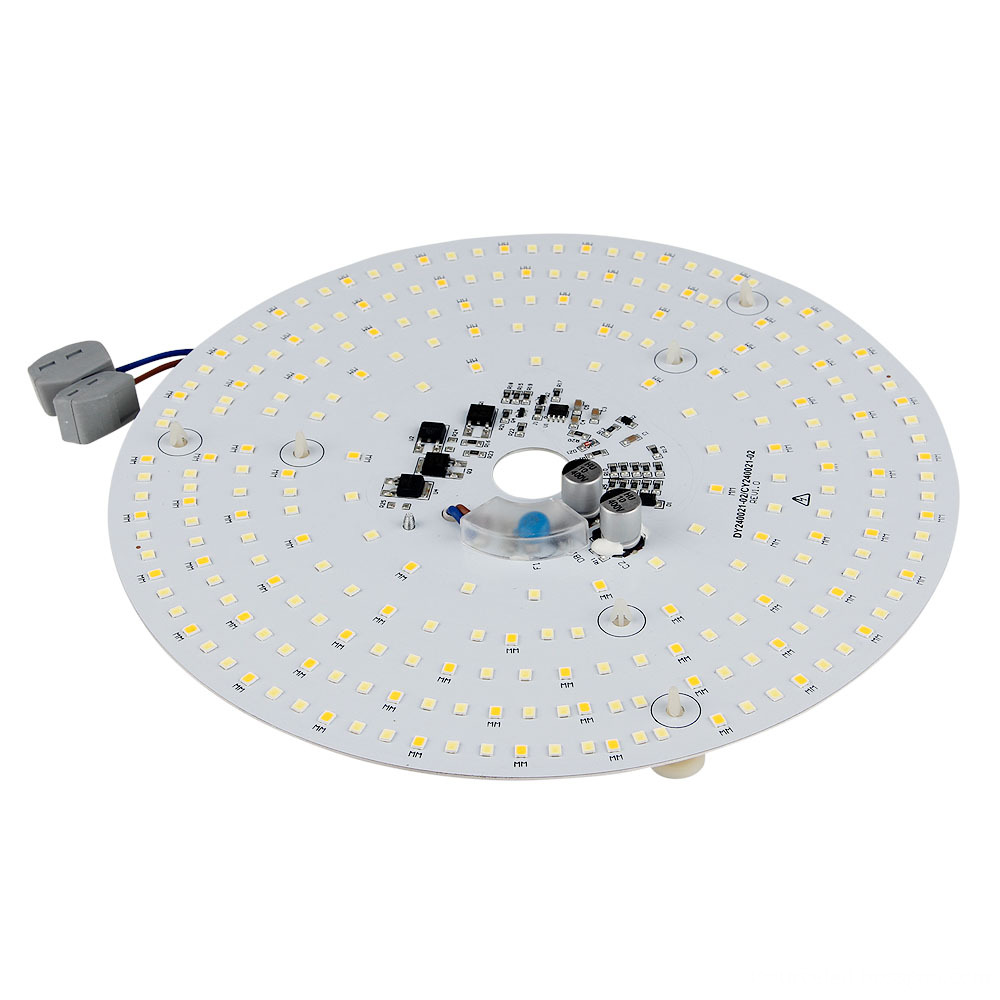

Side of a Colorable 24W AC COB Module for flood light

Side of a colorable 24W light source module

Technical parameters of the Colorable 24W AC COB Module for flood light:

Type

DY24

Input Voltage

AC220-240V 50HZ

Input Current

0.184A

Power

25.5W

Power Factor

0.633

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

2598 lm

luminous efficiency

103.1 lm/w

CCT

2700K-6500K

Ra

91.3

Size

Round  210*1.2mm

Weight

126 g

Thermal Conductivity

1.0W/m.K



lighting effect diagram:

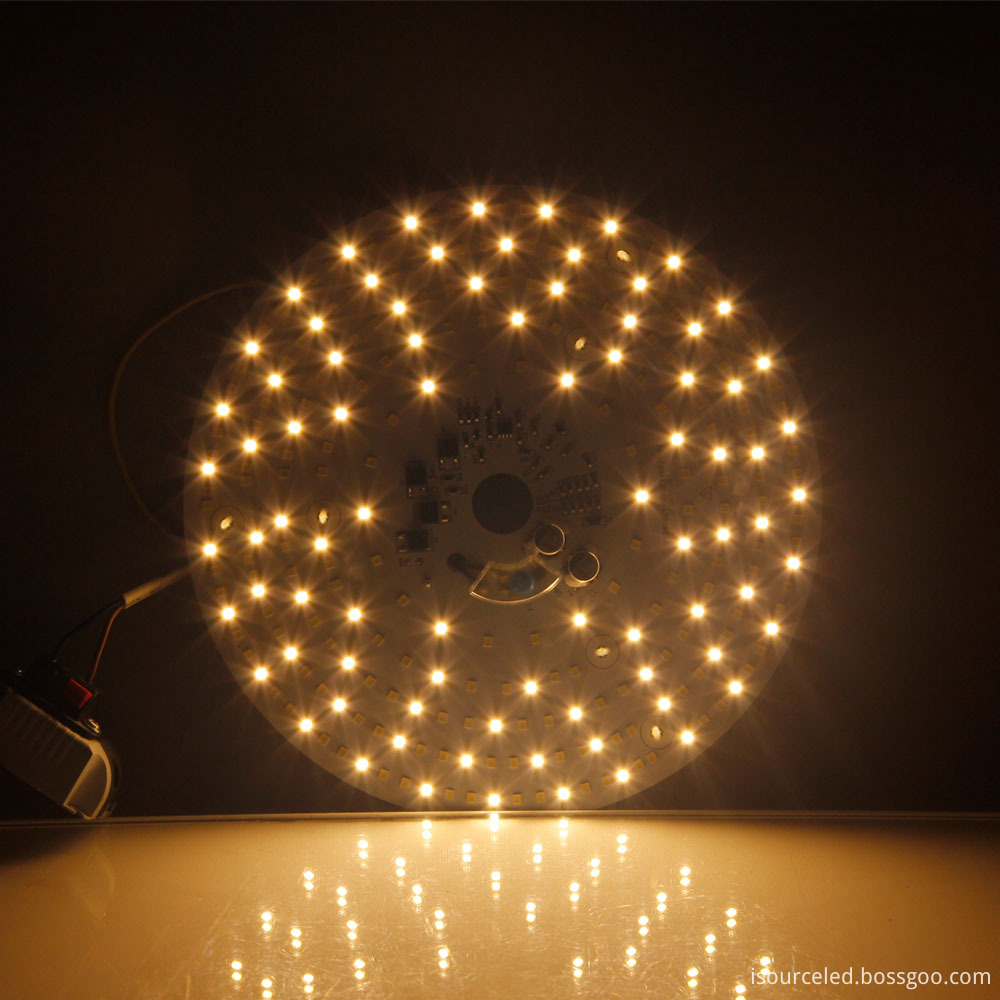

Colorable 24W AC COB Module for flood light lighting effect diagram

Colorable 24W AC COB Module for flood light lighting effect diagram

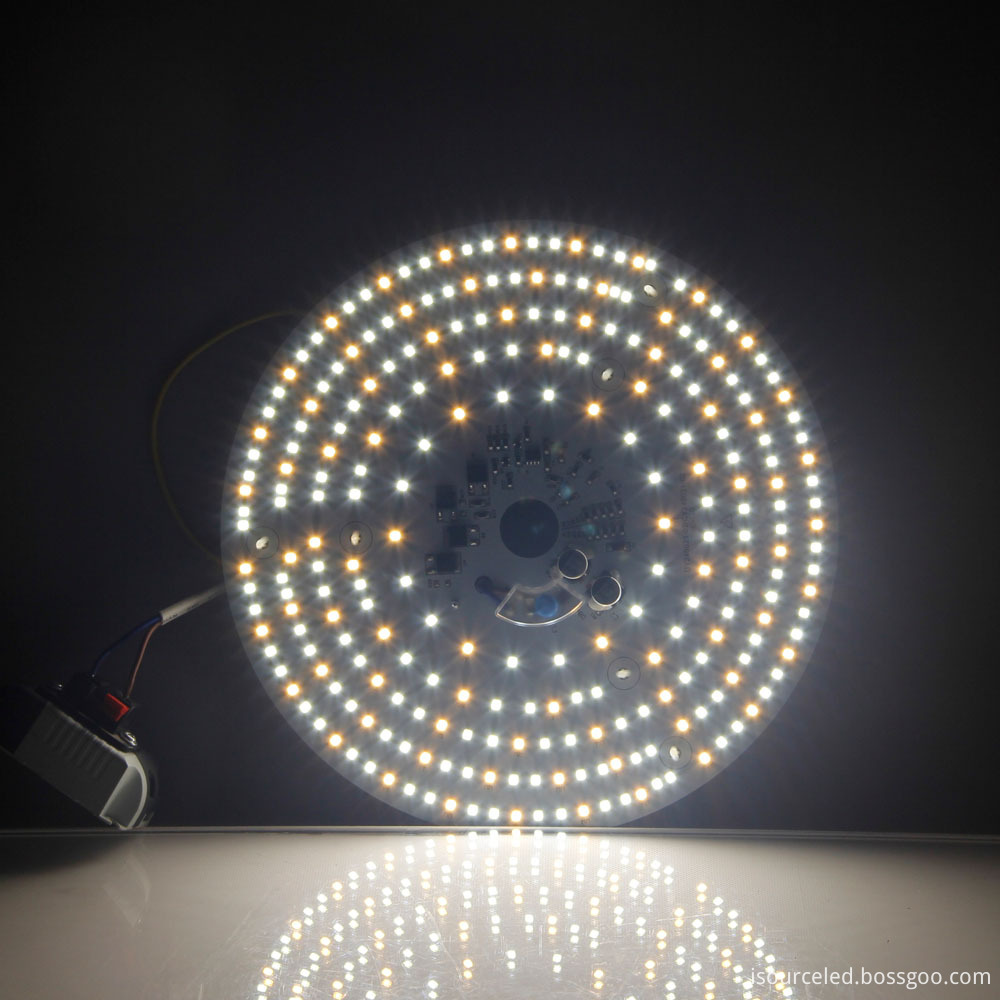

Colorable 24W AC COB Module for flood light dimming effect diagram

Colorable 24W light source module dimming effect diagram

Application of colorable 24W light source module:


Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps, LED downlights, fluorescent lamps, projection lamps, etc.

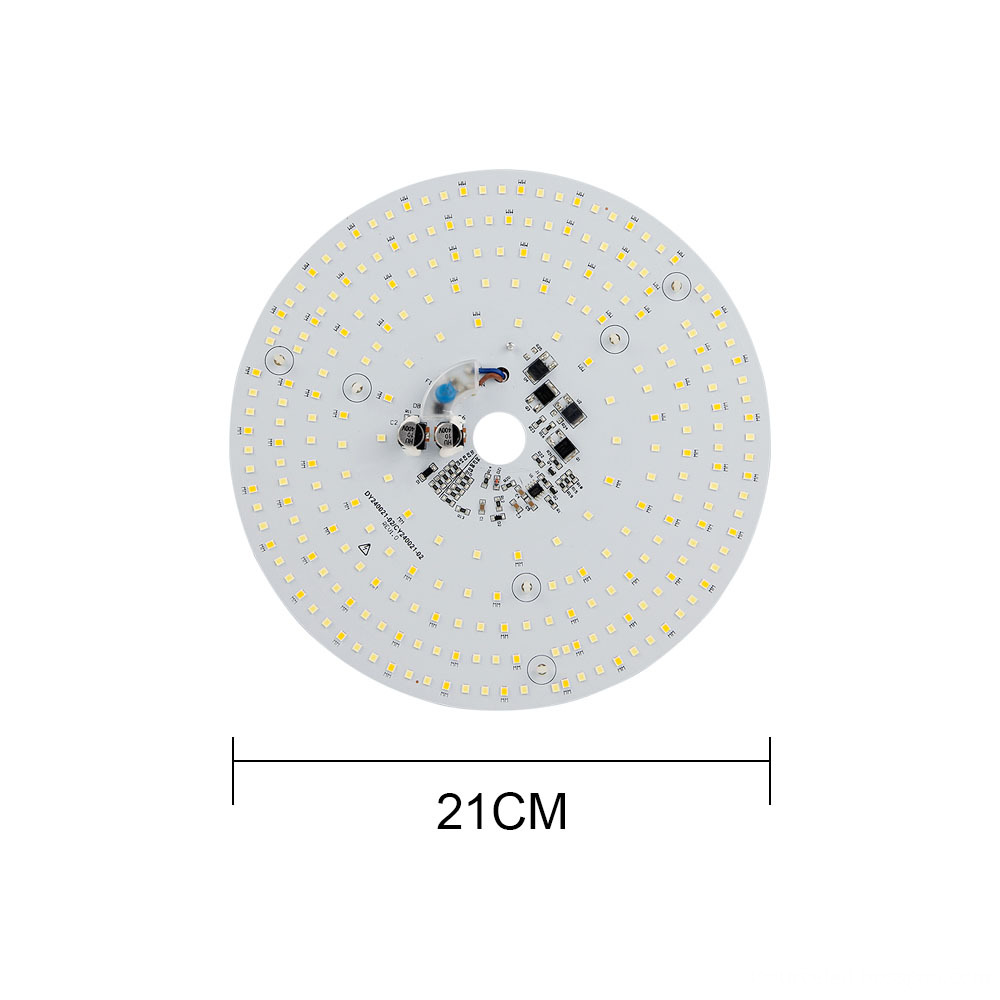

The width of the Colorable 24W AC COB Module for flood light

The width of the Colorable 24W AC COB Module for flood light

Colorable 24W AC COB Module for flood light installation:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED module,
   and fix the LED module and radiator with screws.
2. Attach the lens and screw it in place.
3. Ac 220V power supply is introduced for power test.
4. It is recommended to use an insulating gasket at the bottom of the screw.
