220v Dimming smd 2835 9W AC COB Module

Unit Price: USD 2.0000 - 2.3700 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: GF09520MM

LED Light Source: Piranha

Emitting Color: Pure White, Natural White

1 LED Power: <0.3W

Power: 9W

LED Chips: Osram

IP Rating: IP66

Waterproof: Not Waterproof

Chip Material: AlGaInP

LED Type: SMD 2835

CCT: 4000K~7000K

Size: 520*27*1.2mm

Luminous Flux(lm): 972 Lm

Input Current: 0.079A

Power Factor: 0.591

Additional Info

Packaging: L185*W165*H46mm , Single gross weight: 61 g

Productivity: 500

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 30000 pcs/month

Certificate: CE, RoHS, FCC,CCC,PSE

Port: Shekou,Yantian

Product Description

220v Dimming smd 2835 9W AC COB Module is a round piece, power: 9W, model: GF0952002, is a dimming module series, luminous flux 965.5 lm, luminous efficiency 99.3lm / w, PCB size can be customized according to customer requirements. Adjustable three grades, free to change the brightness of light, 24W light board module net weight is 126 G, composed of 84 lessons LED lamp beads, AC COB Module is size 520MM*27MM, white light, no flash screen, isourceled company's innovative products, The ceiling light board is a whole piece of 1.25MM thick aluminum substrate, which belongs to the ceiling lamp. The panel lamp has indispensable product module material. The ceiling lamp shell is assembled with the 9W lamp panel dimming module freely. LED ceiling top finished.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, Specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

220v Dimming smd 2835 9W AC COB Module video

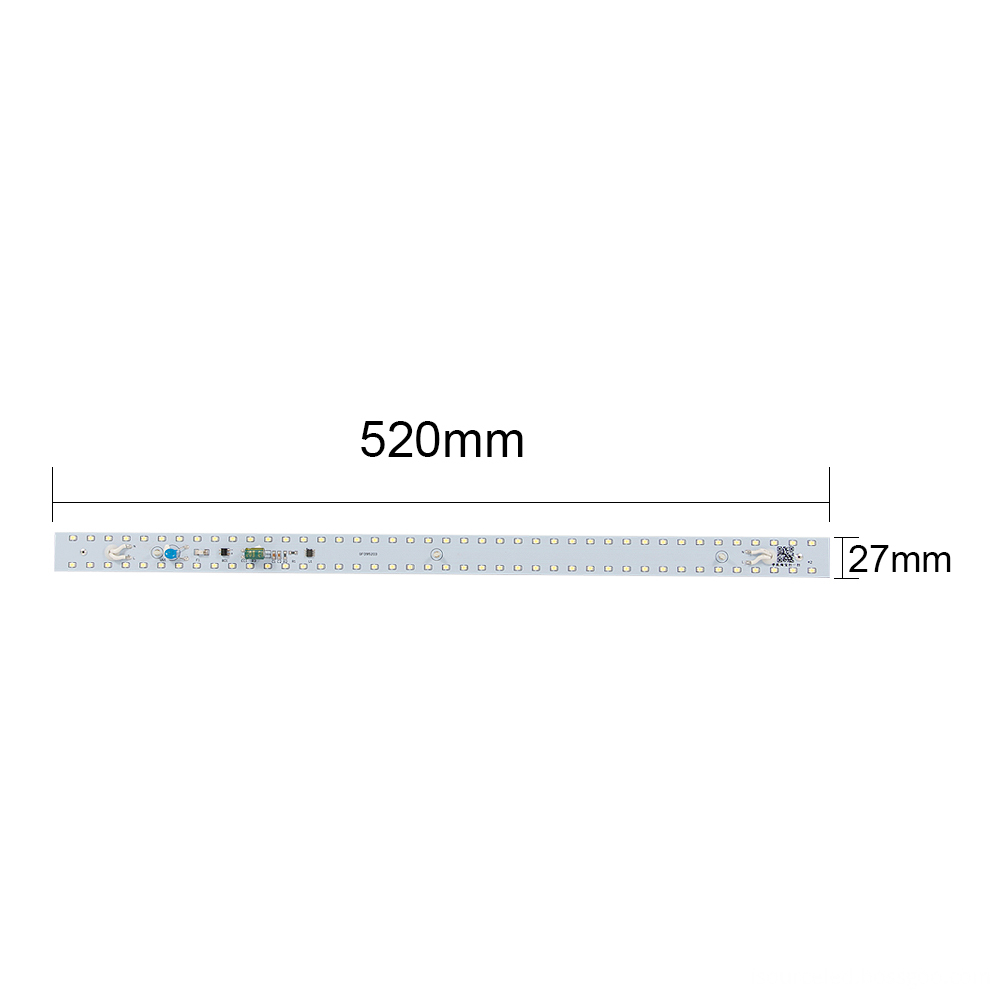

Dimming 9W AC LED Module for Ceiling Light size

220v Dimming smd 2835 9W AC COB Module size

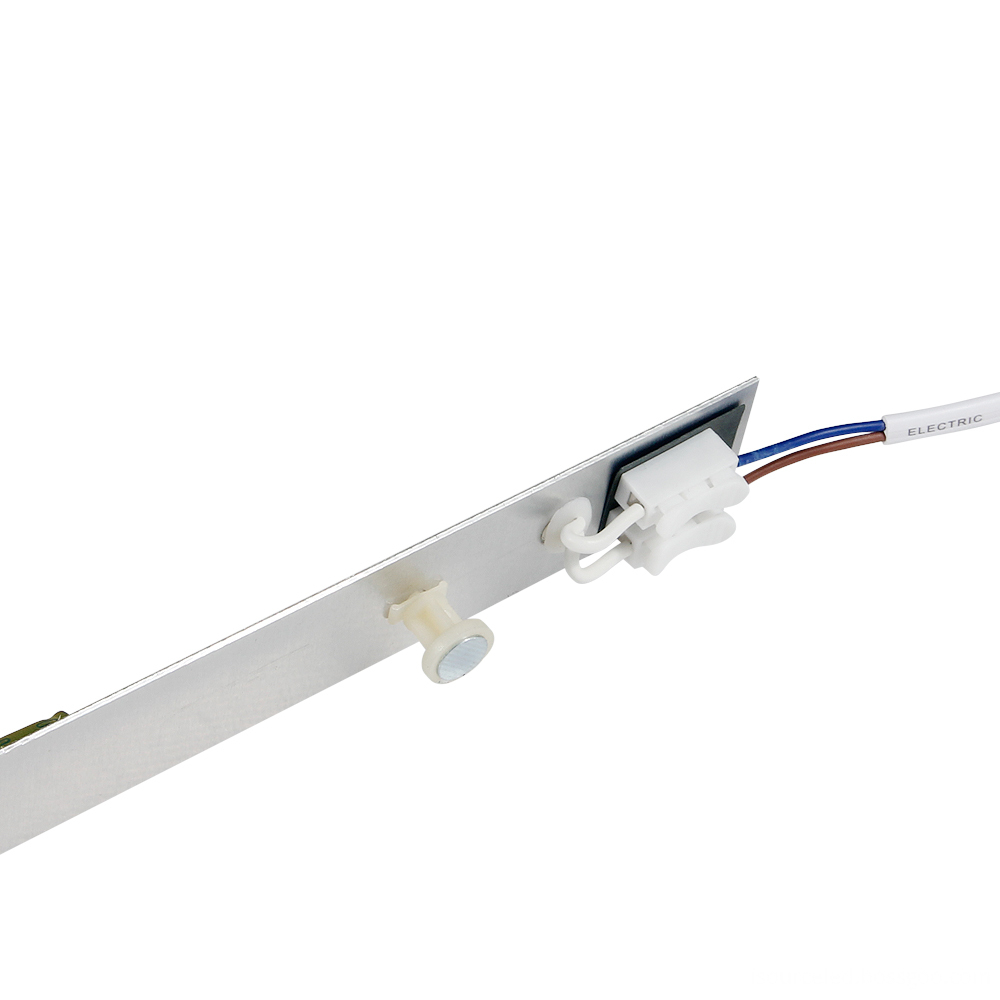

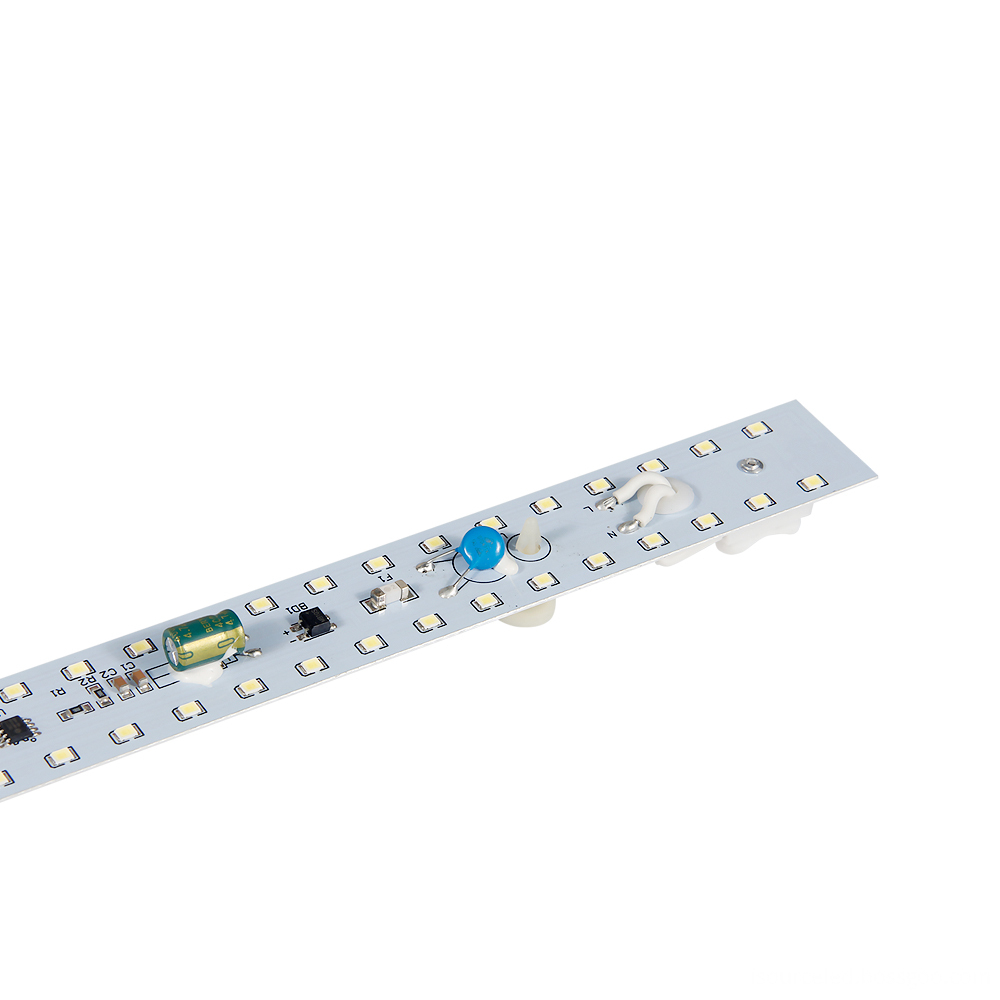

Side of 220v Dimming smd 2835 9W AC COB Module

Side of 220v Dimming smd 2835 9W AC COB Module

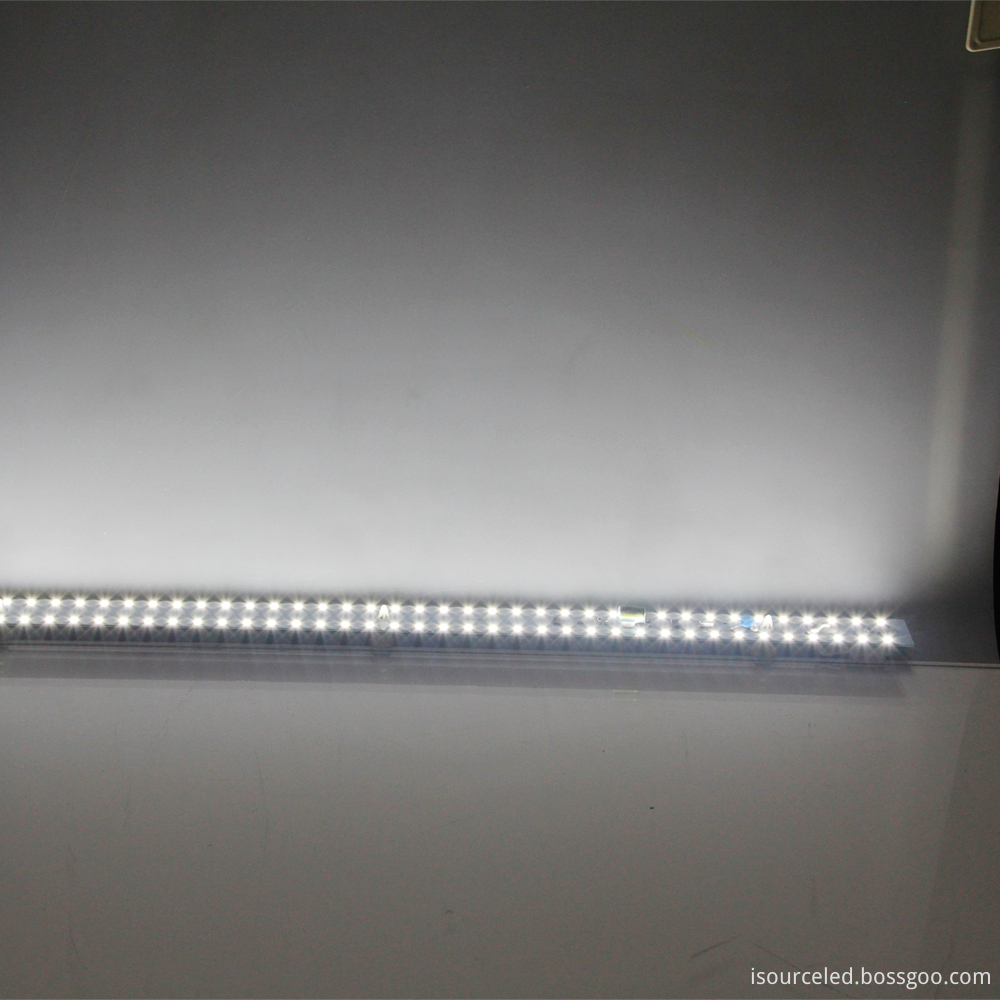

Luminescence of 220v Dimming smd 2835 9W AC COB Module

Luminescence of 220v Dimming smd 2835 9W AC COB Module

Warm white light source 9W lamp panel dimming module technical parameters:

Type

GF09520

Input Voltage

AC220-240V 50HZ

Input Current

0.075A

Power

9W

Power Factor

0.561

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

976 lm

luminous efficiency

97.5 lm/w

CCT

6187.2K

Ra

85.8

Size

Round 520*27*1.2mm

Weight

61 g

Thermal Conductivity

1.0W/m.K


220v Dimming smd 2835 9W AC COB Module for Ceiling Light application:

Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps, LED downlights, fluorescent lamps,

projection lamps, etc.

No need to drive, wiring can be, 3 years replacement, full light, no flash screen.


Gf09520mm4

9W led light module installation guide:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED

module, and fix the LED module and radiator with screws.
2. Attach the lens and screw it in place.
3. Ac 220V power supply is introduced for power test.


ISource Engineering Co., Ltd is an innovative, All of our products are qualified with UL, cULs, ETL, cETL,
Energy Star, DLC, CE, ROHS, SAA certificates. We have a wide selection at great prices to help you get creative.
