White light 24W dimming LED ceiling light module

Unit Price: USD 8.4600 - 8.8600 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: CY2401

LED Light Source: Piranha

Emitting Color: Pure White, Natural White

1 LED Power: 0.3-0.5W

Power: 15W

LED Chips: Osram

Waterproof: Not Waterproof

Chip Material: AlGaInP

LED Type: SMD 2835

Size: Round 210*1.2mm

Luminous Flux(lm): 2493.5 Lm/w

Luminous Efficiency: 97.5 Lm/w

CCT: 5123.6K

Ra: 83.8

Input Current: 0.187A

Additional Info

Packaging: L185*W165*H46mm, Single gross weight: 150 g

Productivity: 500

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 30000 One

Certificate: CE, RoHS, FCC,CCC,PSE

Port: Shekou,Yantian

Product Description

The process of 24W ceiling lamp dimming module consists of 84 class LED lamp beads and light board. The net weight is 64 G, the white light source does not flash, the luminous flux is 954.7 lm, the luminous efficiency is 106.1 lm/w, and the PCB size is 21CM. Shape, belonging to the dimming module series, isourceled company's innovative products, adjustable three grades, users can easily adjust the brightness of LED lights through intelligent lighting dimming system, the ceiling light board is a whole piece of 1.25MM thick aluminum substrate, Ceiling light, the indispensable product material inside the panel light, the ceiling lamp housing and the dimming series 9W panel light module together, free assembly and lighting design is more convenient.

White light 24W panel light dimming light board module video

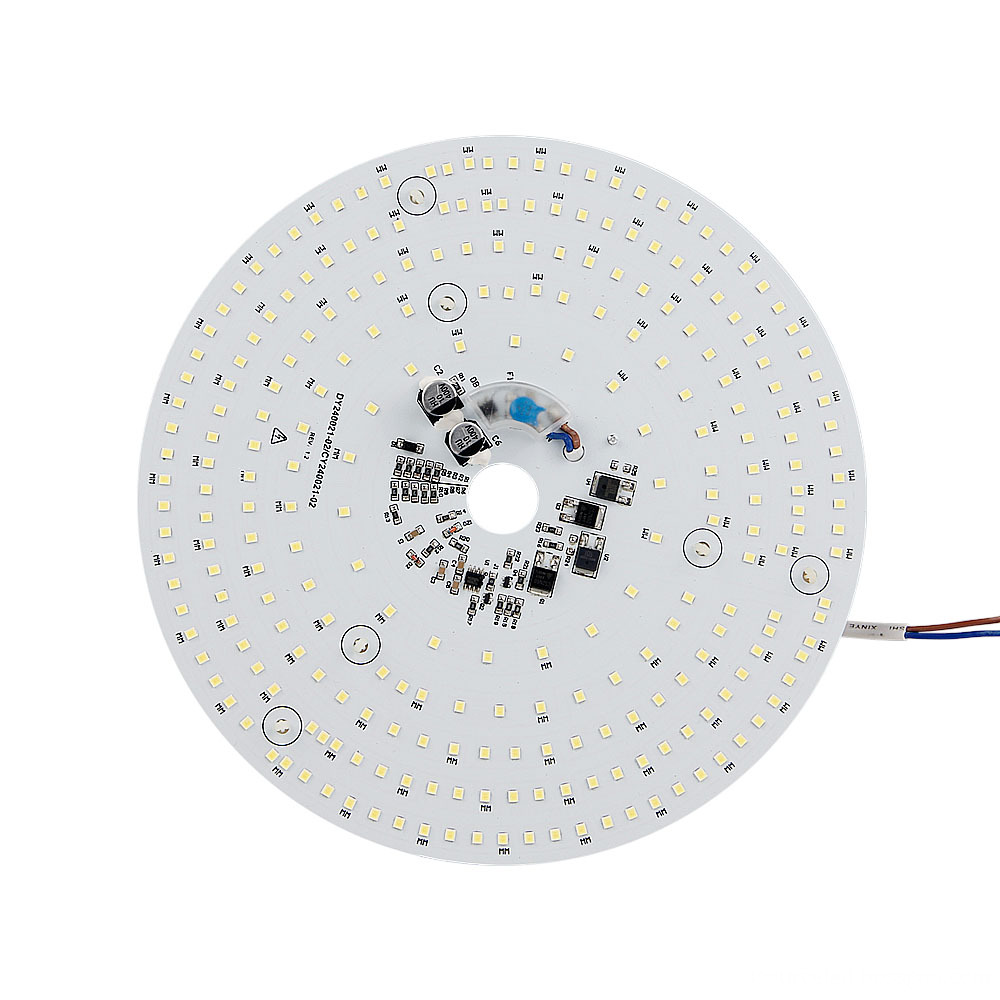

White light 24W ceiling light dimming light board module front

White light 24W ceiling light dimming light board module front

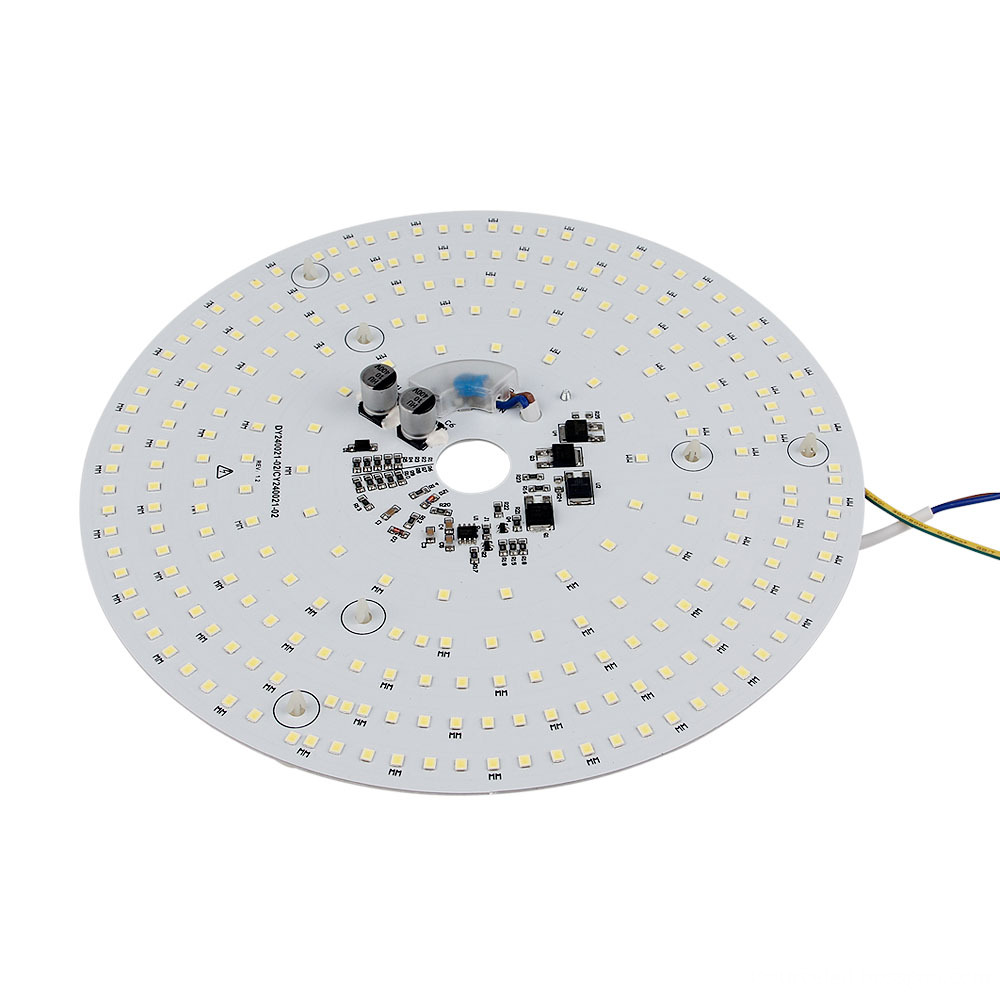

Side of white light 24W panel light dimming light board module

Side of white light 24W panel light dimming light board module

Technical parameters of white light 24W light board dimming module:

Type

CY2401

Input Voltage

AC220-240V 50HZ

Input Current

0.184A

Power

24W

Power Factor

0.624

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

2483.1 lm

luminous efficiency

97.5 lm/w

CCT

5123.6K

Ra

82.8

Size

Round 210*1.2mm

Weight

150 g

Thermal Conductivity

1.0W/m.K


White light 24W panel light dimming module application:

Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps, LED downlights, fluorescent lamps, projection lamps, etc.

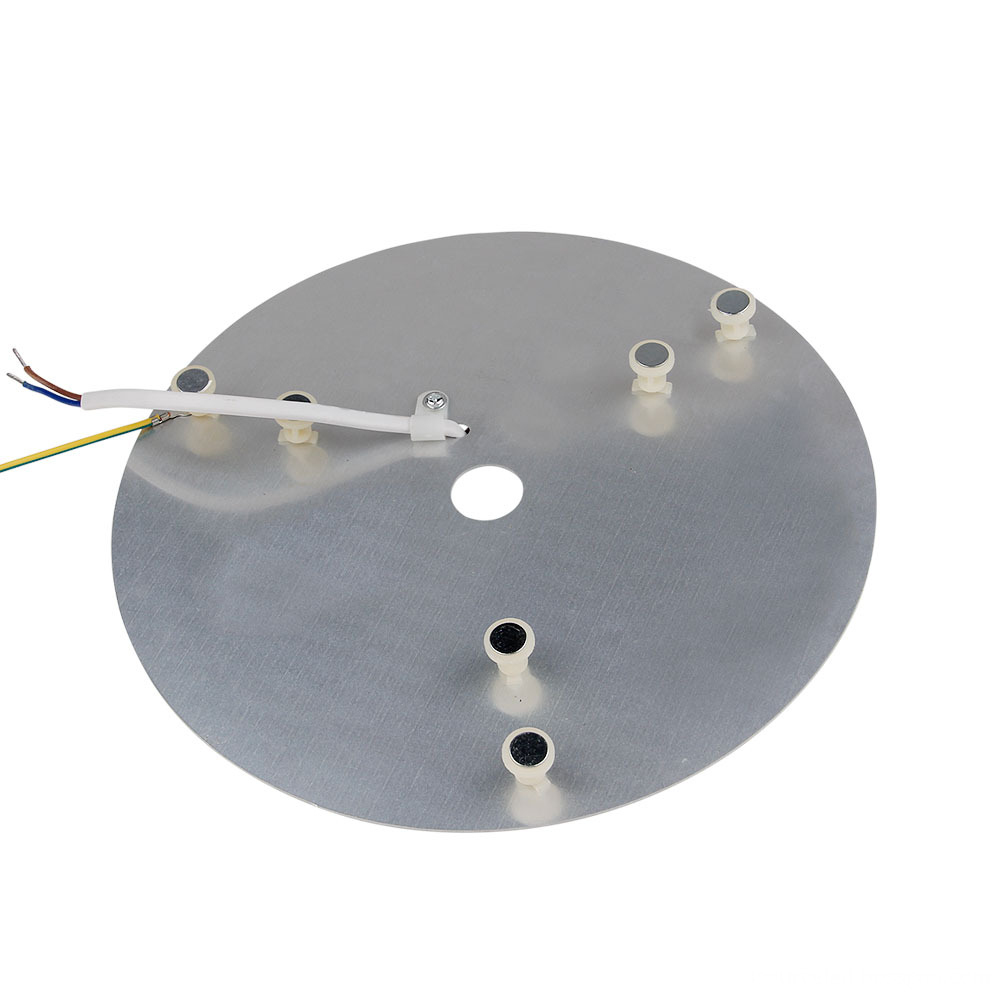

White light 24W light board dimming module bottom

White light 24W light board dimming module bottom

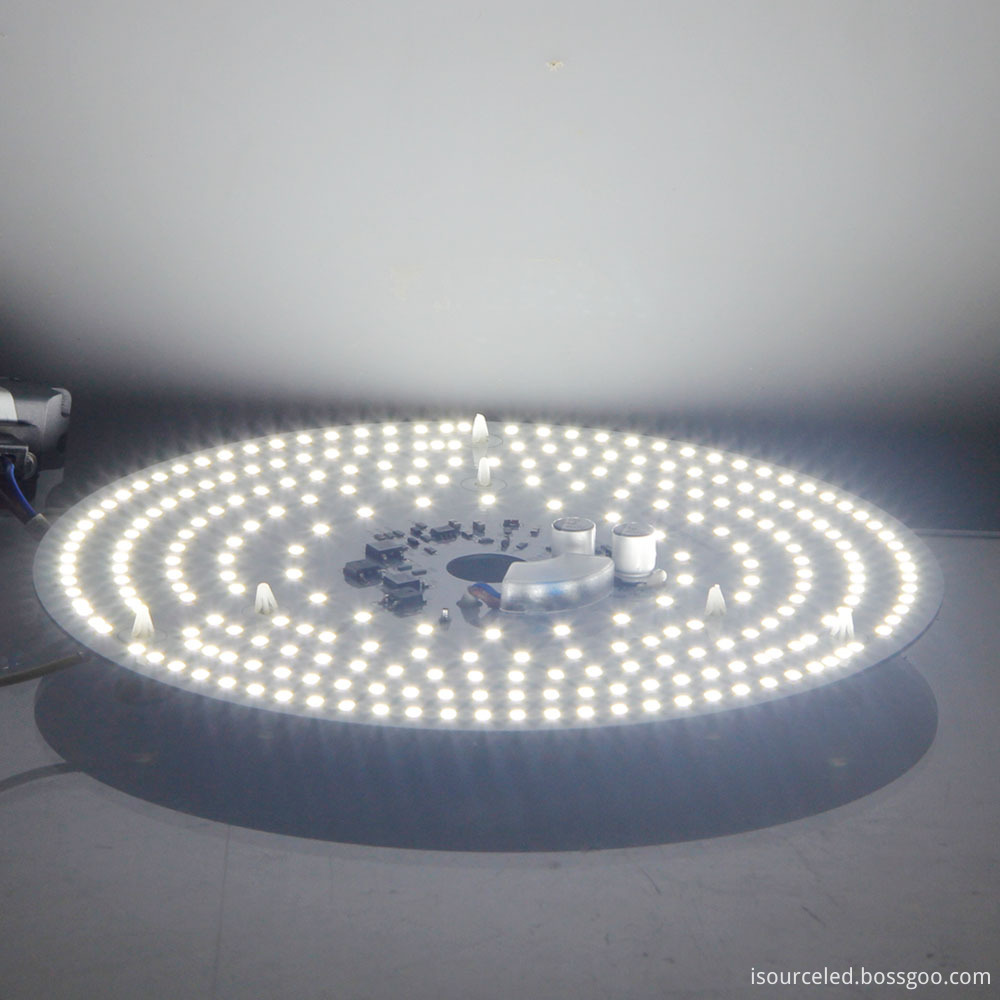

Power-on light-emitting diagram of white light 24W panel light dimming light board module

Power-on light-emitting diagram of white light 24W panel light dimming light board module


White light 24W light board dimming module product features:


1.White Light The 24W ceiling light dimming module consists of 84 large-area LED beads and white light source.

2. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
3. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;
Constant power over voltage current protection function.
4. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
when the substrate temperature is too high.
5. Using PCT2835 patch LED bead, color rendering index is more than 80.
6. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
7. No ultraviolet , electromagnetic wave radiation.
8. The size of 24W PCB board can be customized according to customer requirements.
9. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.


ISource Engineering Co., Ltd is an innovative, All of our products are qualified with UL, cULs, ETL, cETL, Energy Star, DLC, CE, ROHS, SAA certificates.

If you have any question, please feel free to contact us.
