Warm white 15W ceiling light dimming module

Unit Price: USD 4.5800 - 4.9800 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: CY15

LED Light Source: Piranha

LED Chips: Osram

Waterproof: Not Waterproof

1 LED Power: 0.3-0.5W

Power: 15W

Emitting Color: Warm White, Natural White

IP Rating: IP66

Chip Material: AlGaInP

LED Type: SMD 2835

Luminous Flux(lm): 114.2 Lm/w

Size: Round 140*1.2mm

Luminous Efficiency: 104.6 Lm/w

CCT: 4127.2K

Ra: 84.1

Input Current: 0.113A

Additional Info

Packaging: L185*W165*H46mm, Single gross weight: 63 g

Productivity: 500

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 30000 One

Certificate: CE, RoHS, FCC,CCC,PSE

Port: Shekou,Yantian

Product Description

The process of 15W ceiling lamp dimming light board module consists of 84 class LED lamp beads and light board. AC linear scheme, net weight is 63 G, yellow light source does not flash, luminous flux 1027.6 lm, luminous efficiency 114.2 lm/w, 15W The PCB size of the ceiling light is 14MM*1.2MM, the circular bottom plate belongs to the dimming module series. The innovative products of isourceled company can be adjusted in three grades. Users can easily adjust the brightness of the LED light through the intelligent lighting dimming system. The lamp board is a whole piece of 1.25MM thick aluminum substrate, ceiling lamp, and the indispensable product material inside the panel lamp. The ceiling lamp housing is matched with the 15W panel light module of the dimming series, and the free assembly and lamp design are more convenient.

Warm white light source 15W panel light dimming module video

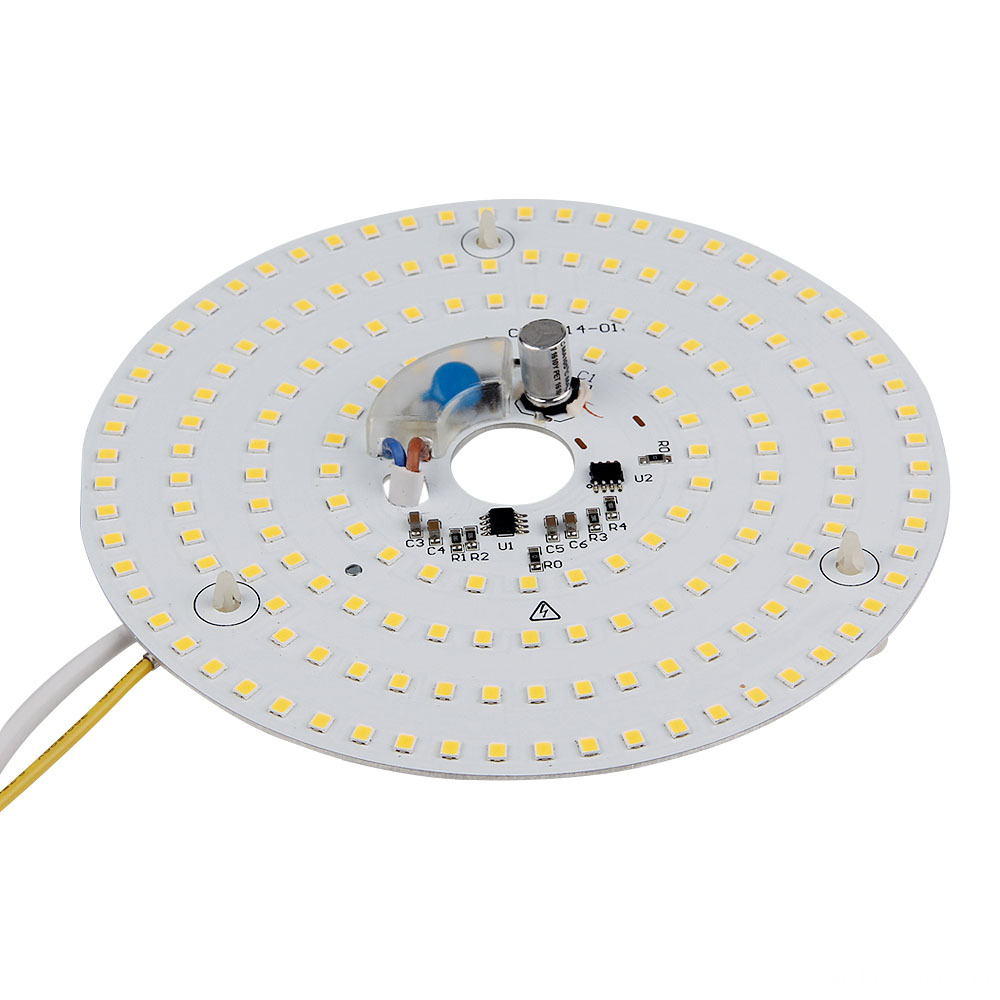

Warm white 15W ceiling light dimming module front

Warm white 15W ceiling light dimming module front

Warm white light source 15W side of the ceiling light dimming module

Warm white light source 15W side of the ceiling light dimming module

Warm white light source 15W lamp panel dimming module technical parameters:

Type

CY1502

Input Voltage

AC220-240V 50HZ

Input Current

0.115A

Power

15W

Power Factor

0.592

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

1567.1 lm

luminous efficiency

107.2 lm/w

CCT

4188.2K

Ra

82.9

Size

Round 140*1.2mm

Weight

63 g

Thermal Conductivity

1.0W/m.K


White light 15W panel light dimming module application:

Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps, LED downlights, fluorescent lamps,

projection lamps, etc.

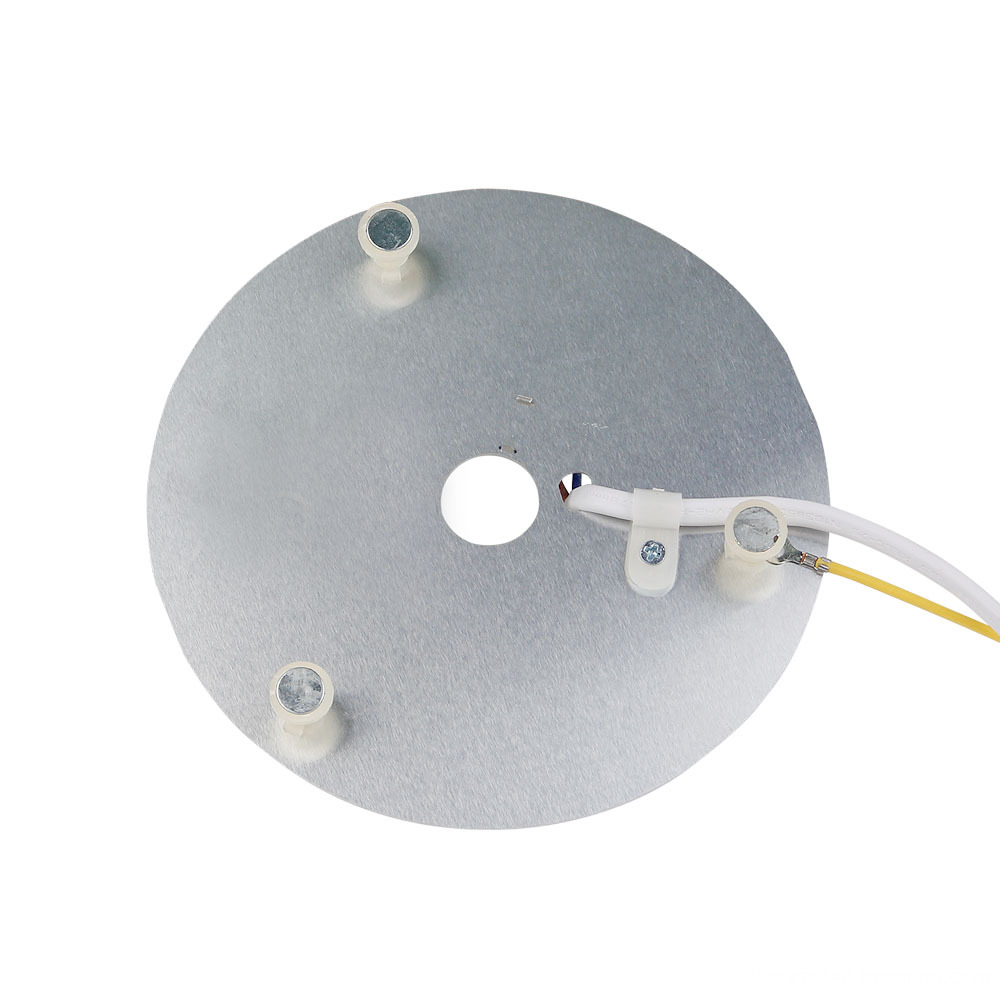

Warm white light source 15W panel light dimming module bottom

Warm white light source 15W panel light dimming module bottom

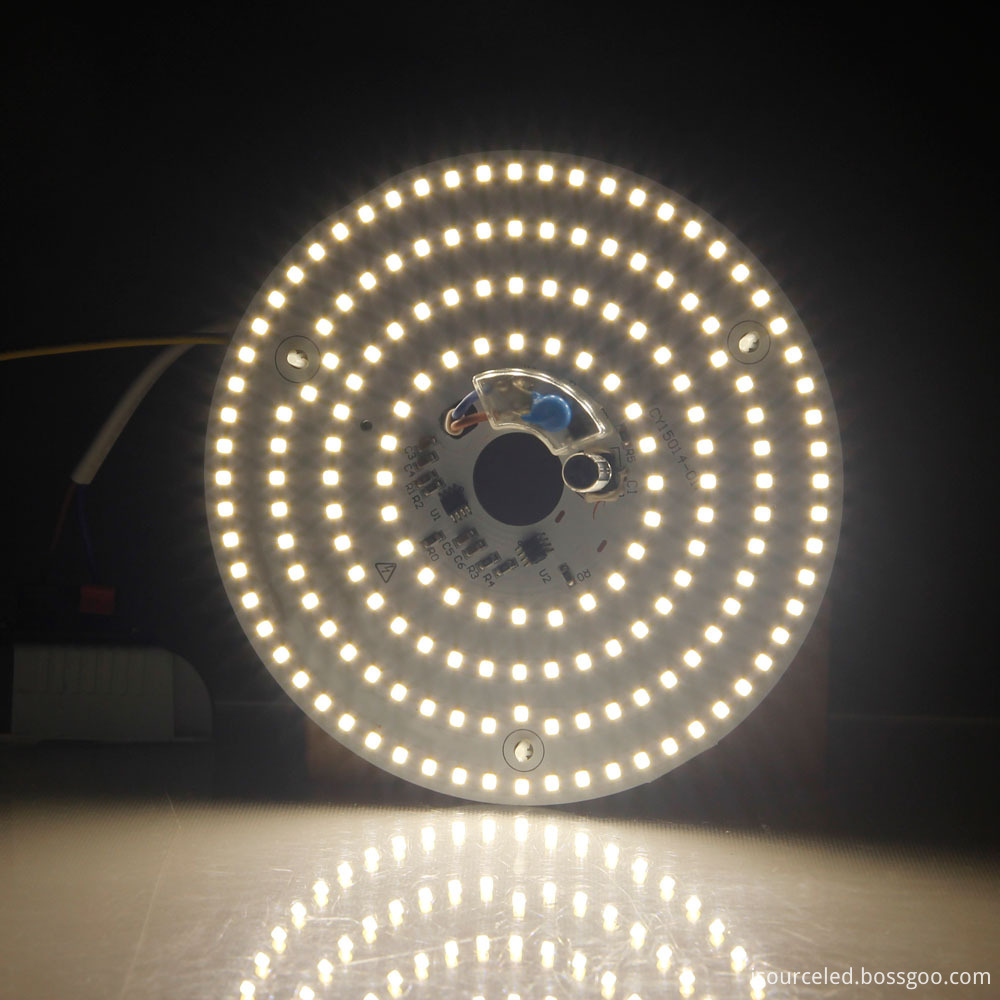

Warm white 15W ceiling light dimming module's luminous effect diagram

Warm white 15W ceiling light dimming module's luminous effect diagram


White light 15W light board dimming module product features:


1.White Light The 15W ceiling light dimming module consists of 84 large-area LED beads and white light source.

2. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
3. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;
Constant power over voltage current protection function.
4. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
when the substrate temperature is too high.
5. Using PCT2835 patch LED bead, color rendering index is more than 80.
6. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
7. No ultraviolet , electromagnetic wave radiation.
8. The size of 15W PCB board can be customized according to customer requirements.
9. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.


  Isourecled Pursue outstanding quality and illuminate colorful life.
