smd 2835 RoHS Certification 35W AC COB Module

Unit Price: USD 8.0500 - 8.3100 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: GY3501

LED Light Source: Piranha

Emitting Color: White, Natural White

1 LED Power: 0.3-0.5W

Power: 30W

LED Chips: Osram

IP Rating: IP65

Waterproof: Not Waterproof

Chip Material: AlGaInP

LED Type: SMD 2835

Color Temperature: 5000K-6500K

Input Current: 0.265A

Luminous Flux(lm): 109.5 Lm/w

Luminous: 3587.1 Lm

Color Rendering Index: 83.4

Additional Info

Packaging: L185*W165*H46mm Single gross weight: 191g

Productivity: 600

Brand: Isourceled

Transportation: Ocean,Land,Air

Place of Origin: Shen Zhen

Supply Ability: 30000 pcs/month

Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001

Port: Shekou,YANTIAN

Product Description

Smd 2835 RoHS Certification 35W AC COB Module process uses disc light board, model: GY3501, current 0.237A, power: 35W, luminous flux 3566 lm, luminous efficiency 106.4 lm/w, made of aluminum alloy material, resistant to high temperature, moisture Waterproof and leakproof. For ceiling lamps, panel lights and floodlights The light panel is a 1.25MM thick aluminum substrate. The perfect heat dissipation guarantees a long service life. Smd 2835 RoHS Certification 35W AC COB Module light source conversion board is covered by 112 smd 2835 LED lamp beads. Rate, white light source, guarantees absolutely uniform illumination, no flash, very good lighting effect, 5W ceiling lamp module can be directly installed on indoor ceiling and ceiling lamp panels, soft light, white, energy saving.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

Smd 2835 RoHS Certification 35W AC COB Module video

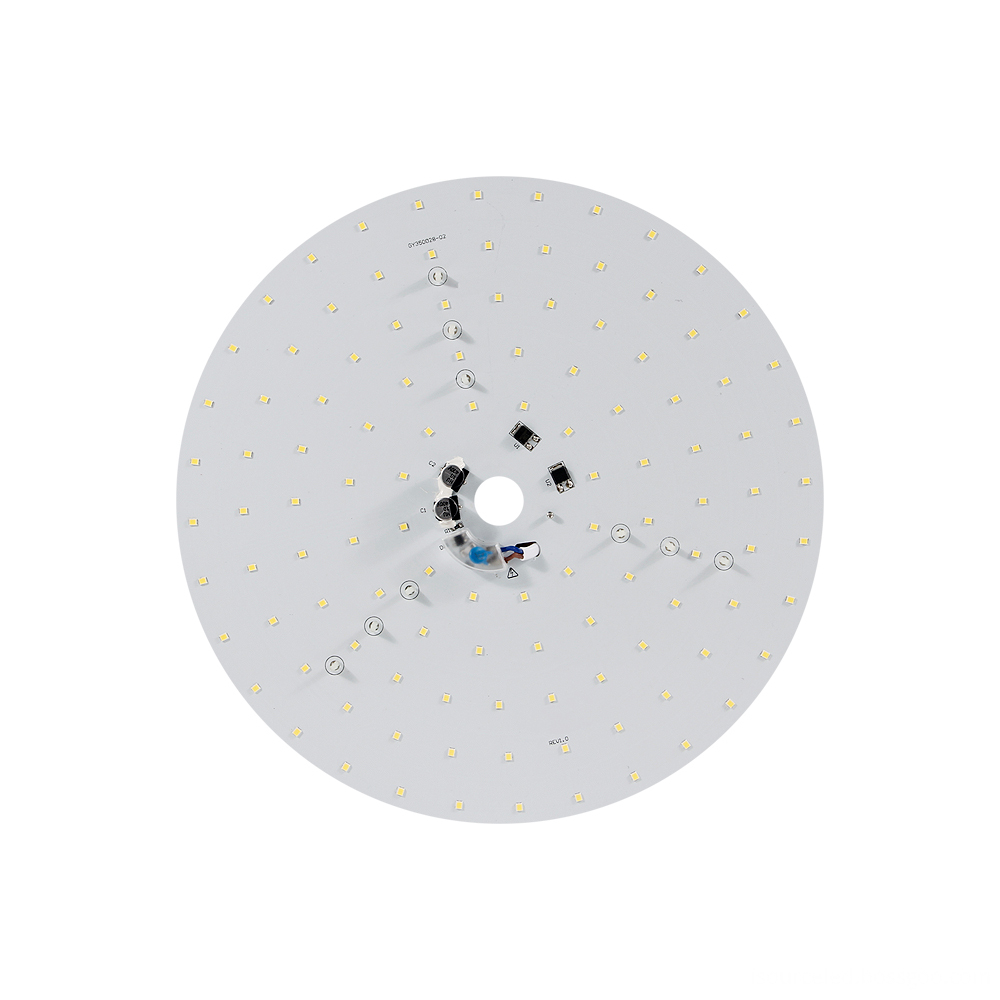

The front of Smd 2835 RoHS Certification 35W AC COB Module

The front of Smd 2835 RoHS Certification 35W AC COB Module

Technical parameters of Smd 2835 RoHS Certification 35W AC COB Module:

Type

GY350028-1

Input Voltage

AC220-240V 50HZ

Input Current

0.266A

Power

35W

Power Factor

0.61

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

3547.7 lm

luminous efficiency

104.6 lm/w

Color temperature

5000K-6500K

Color rendering index

87.1

Size

Φ280*1.2mm

Weight

191 g

Thermal Conductivity

1.0W/m.K

linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.

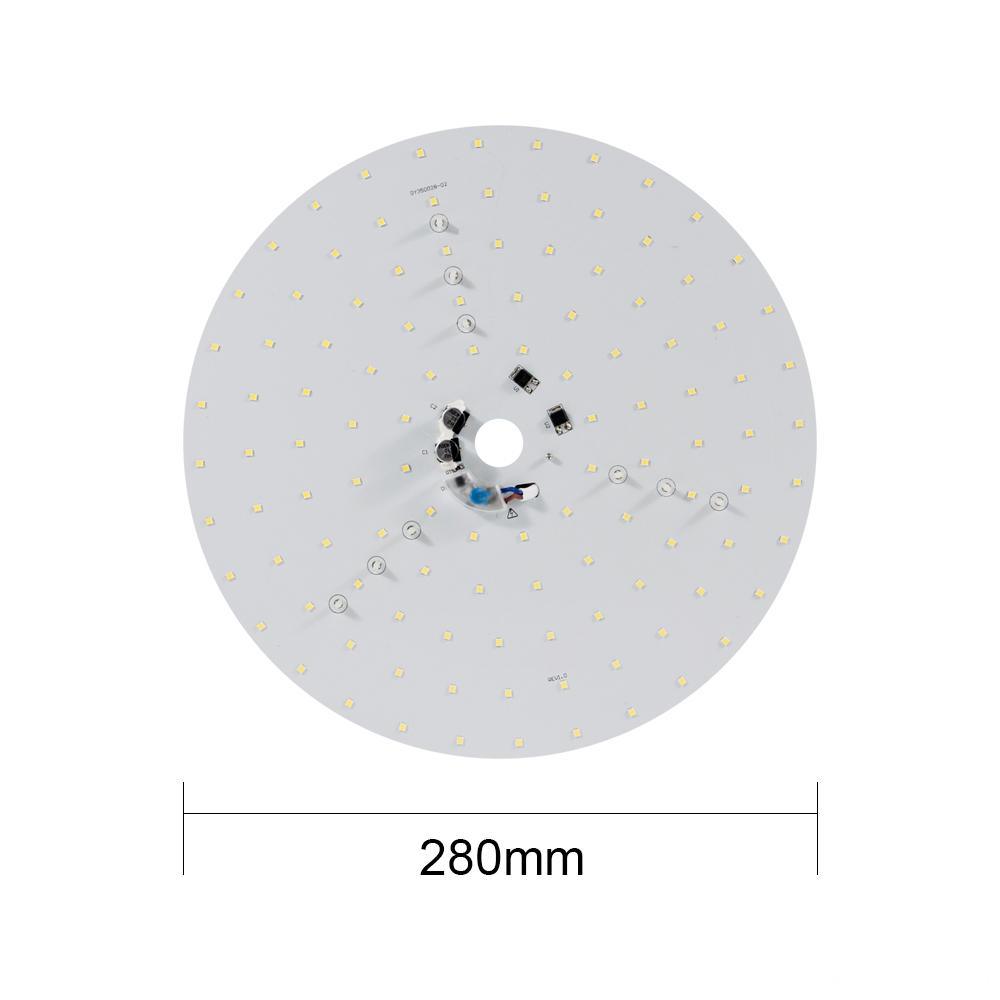

The size of Smd 2835 RoHS Certification 35W AC COB Module

The size of Smd 2835 RoHS Certification 35W AC COB Module

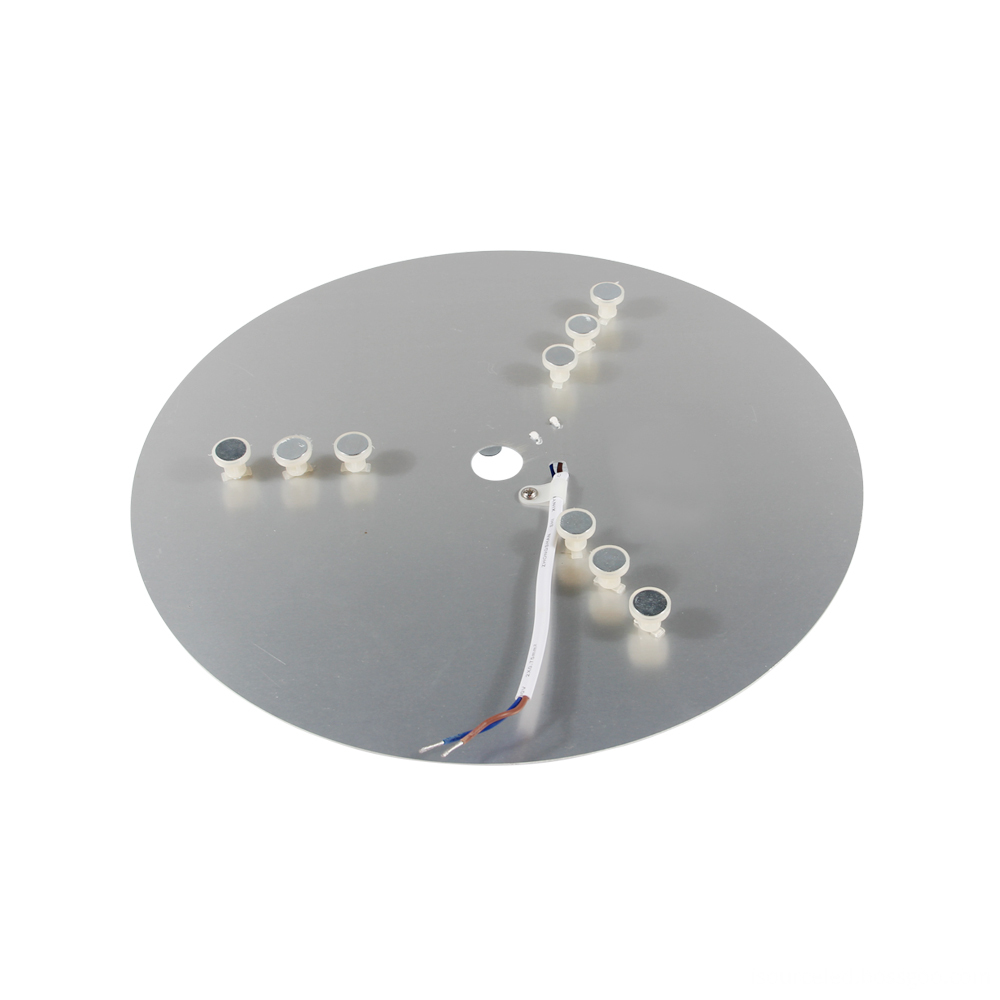

Bottom plate of Smd 2835 RoHS Certification 35W AC COB Module

Bottom plate of Smd 2835 RoHS Certification 35W AC COB Module

Aluminum substrate material, reasonable structural design, the base has mounting holes, easy to install.

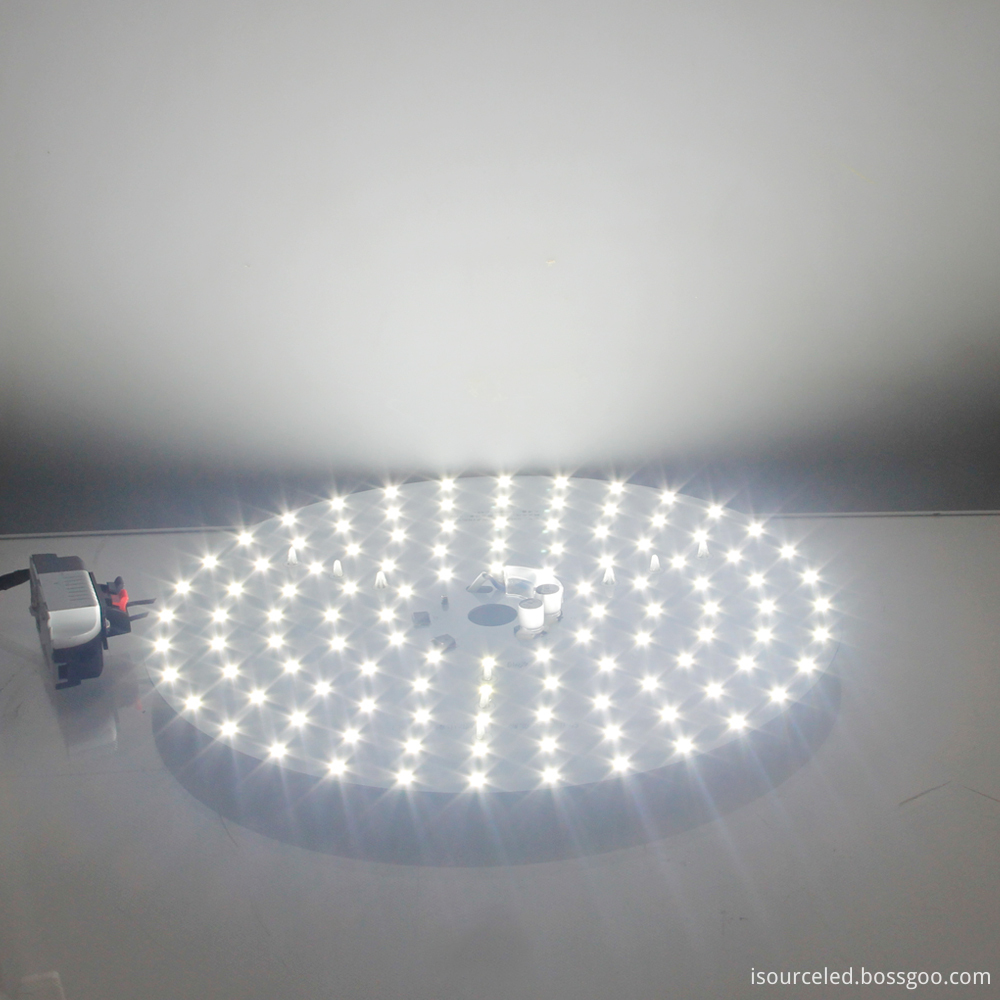

Luminescence Chart of Smd 2835 RoHS Certification 35W AC COB Module

Luminescence Chart of Smd 2835 RoHS Certification 35W AC COB Module

The original packaging process is used to emit energy in the form of electrons. The product has no spot color circle, high color rendering, vibration resistance and good beam concentration consistency.

our team

There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.

Isource lighting Co., Ltd Pursue outstanding quality and illuminate colorful life.

If you have any question, please feel free to contact us.
