220V High lumen 40W white light ceiling module

Unit Price: USD 11.6300 - 12.0300 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: AY400011-2

LED Light Source: Piranha

1 LED Power: <0.3W

LED Chips: Osram

Waterproof: Not Waterproof

Emitting Color: White, Natural White

Power: 30W

IP Rating: IP66

Chip Material: AlGaInP

LED Type: SMD 2835

Luminous Flux(lm): 3896.5 Lm

Size: Round 280*1.2mm

Luminous Efficiency: 105.8 Lm/w

CCT: 5385.5K

Ra: 91.4

Input Current: 0.268A

Additional Info

Packaging: size: L185*W165*H46mm , Single gross weight: 210 g

Productivity: 500

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 30000 One

Certificate: CE, RoHS, FCC,CCC,PSE

Port: Shekou,Yantian

Product Description

220V High lumen 40W white light ceiling module product technology is a circular whole block, led drive-free light engine module, ceiling lamp shell and 40W light board module can be freely assembled together. Can be made into different shapes of LED ceiling lamps, 220V High lumen Module series products, 40W light board module net weight 210 g, luminous flux 3899 lm, light efficiency 106.9 lm / w, high luminous efficiency, ceiling light board is a whole piece of 1.25MM thick aluminum substrate, size 280 * 1.2mm , Ceiling lamp, panel light, the indispensable product material, consisting of 420 lessons LED lamp beads, lamp bead coverage, white light, super bright, no flash screen.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, Specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

Video of 220V High lumen 40W White Panel Light Module

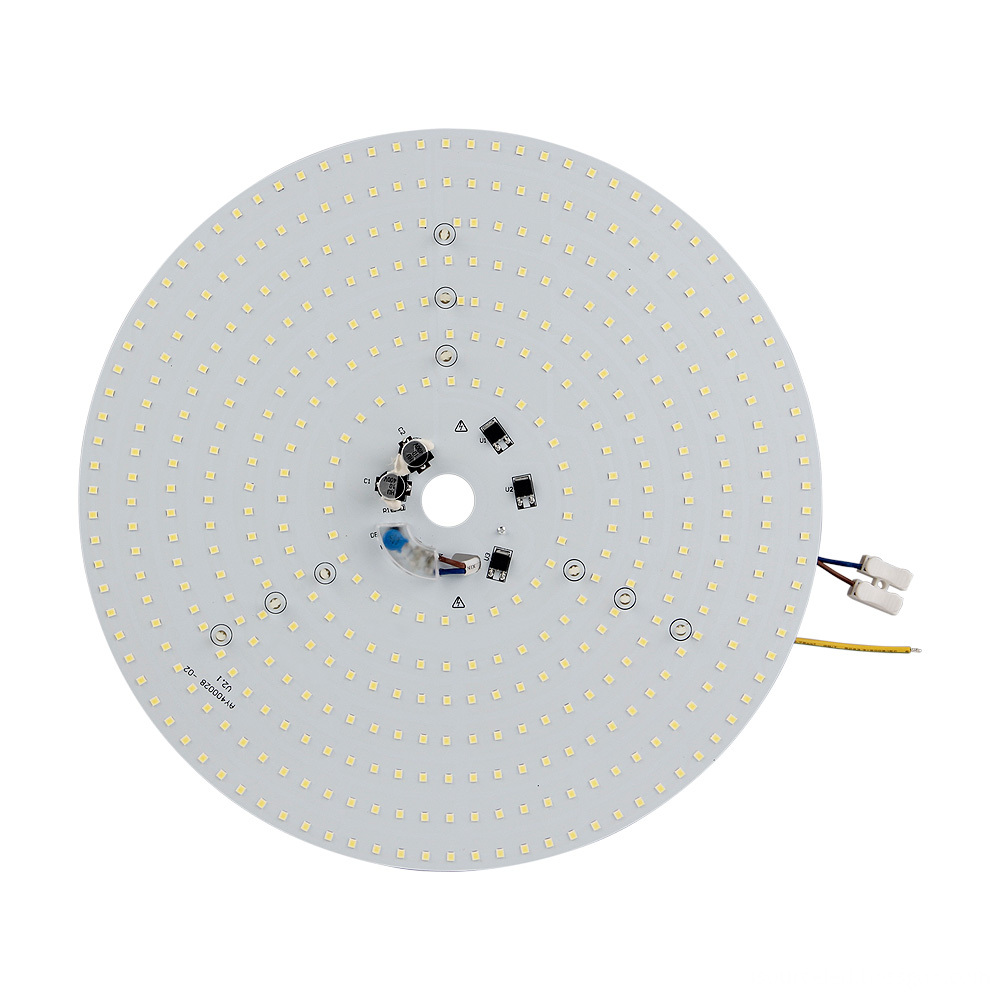

Front view of 220V High lumen 40W white light ceiling module

Front view of 220V High lumen 40W white light panel light module

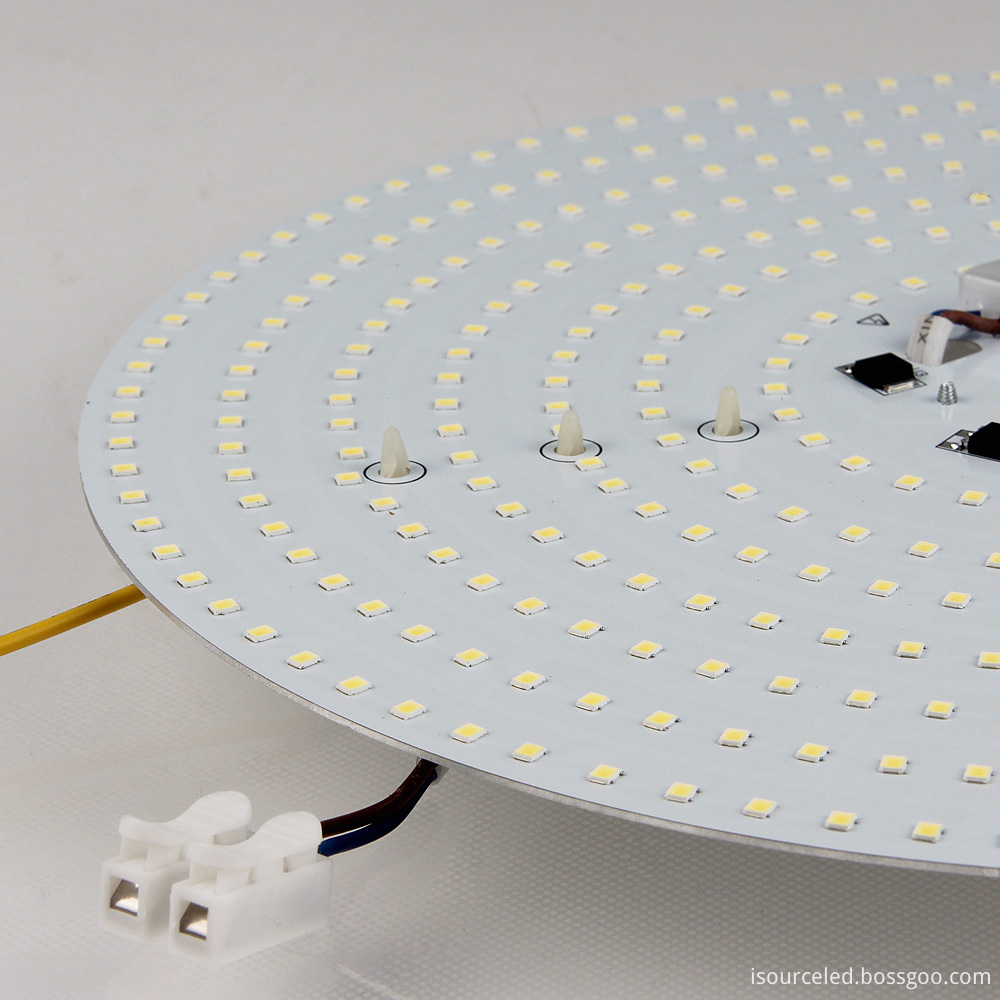

Side of 220V High lumen 40W white light ceiling module

Side of 220V High lumen 40W White Light Ceiling Module

Technical parameters of 40W white light ceiling lamp module for Aurora light board:




3899 lm

Input Voltage

AC220-240V 50HZ

luminous efficiency

106.9 lm/w

Input Current








Power Factor



Round  280*1.2mm

Insulation Class



210 g

Operating tempeture


Thermal Conductivity


Application of 220V High lumen 40W White Light Ceiling Module:

Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps, LED downlights, fluorescent lamps, projection lamps, etc.

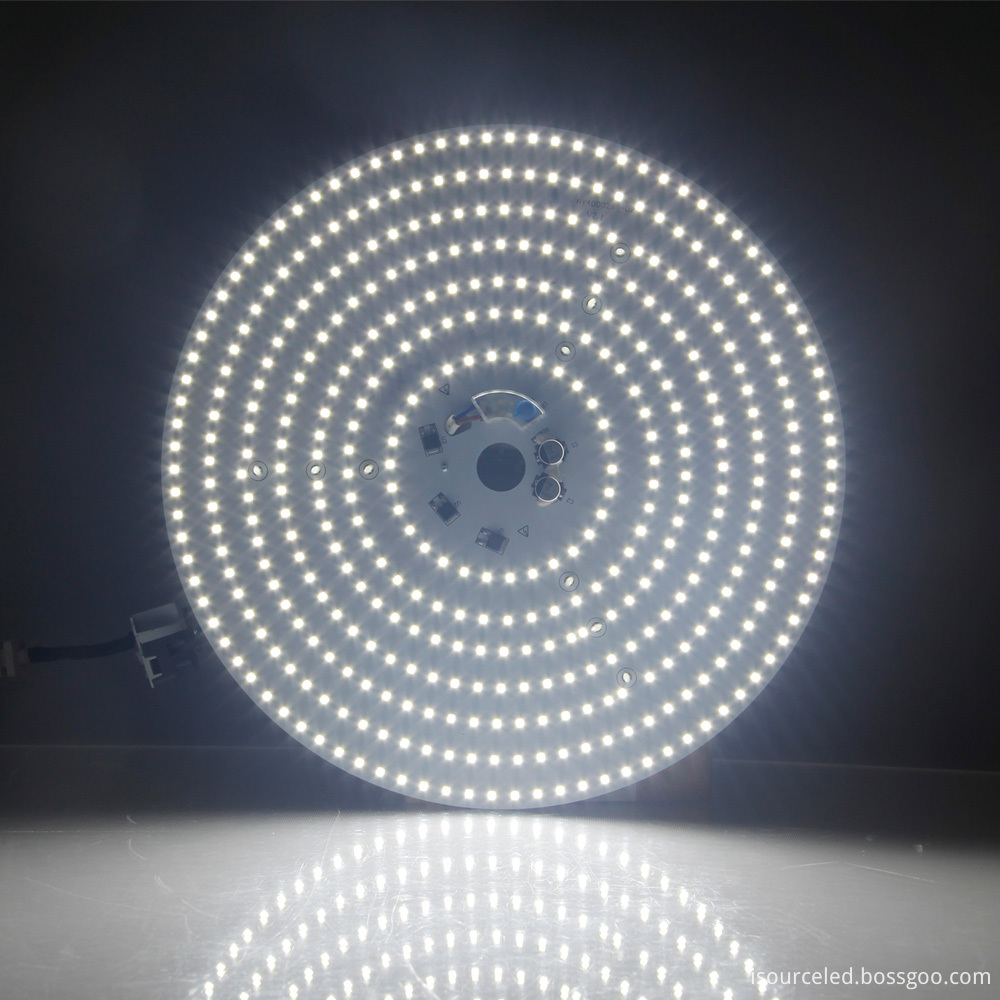

Lighting diagram of 220V High lumen 40W white light ceiling module

Lighting diagram of 40W white light panel light module of 220V High lumen

Installation method of 40W white light ceiling module for 220V High lumen:

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED module,
   and fix the LED module and radiator with screws.
2. Attach the lens and screw it in place.
3. Ac 220V power supply is introduced for power test.
4. It is recommended to use an insulating gasket at the bottom of the screw.
