220V High lumen 15W white light ceiling module

Unit Price: USD 3.8500 - 4.2500 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: AY150011-2

LED Light Source: Piranha

Emitting Color: Pure White, Natural White

1 LED Power: <0.3W

LED Chips: Osram

Waterproof: Not Waterproof

Power: 15W

IP Rating: IP66

Chip Material: AlGaInP

LED Type: SMD 2835

Size: Round 140*1.2mm

Luminous Flux(lm): 1548.2 Lm

Luminous Efficiency: 103.7 Lm/w

CCT: 5684.7K

Ra: 85.6

Input Current: 0.119A

Additional Info

Packaging: L185*W165*H46mm, Single gross weight: 60 g

Productivity: 500

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 20000 month

Certificate: CE, RoHS, FCC,CCC,PSE

Port: Shekou,Yantian

Product Description

220V High lumen 15W white light ceiling module, high luminous efficiency, white light source, belonging to the module's aurora series products, ceiling lamps, panel lights, and indispensable product materials, isourceled's innovative products, consisting of 56 lessons LED lamp beads, Guaranteed that the light is absolutely uniform, no flash screen, more normal light source, High lumen 15W light board module white light source net weight of 60 G, luminous flux 1840.2 lm, light efficiency 103.8 lm / w, 15W ceiling light board is the whole piece 1.25MM Thickened aluminum substrate, round piece size 140*1.2mm, LED ceiling lamp housing and Aurora series 15W lamp panel module can be assembled freely with various LED ceiling products, the lighting effect is very good.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

Video of 220V High lumen 15W white light ceiling module

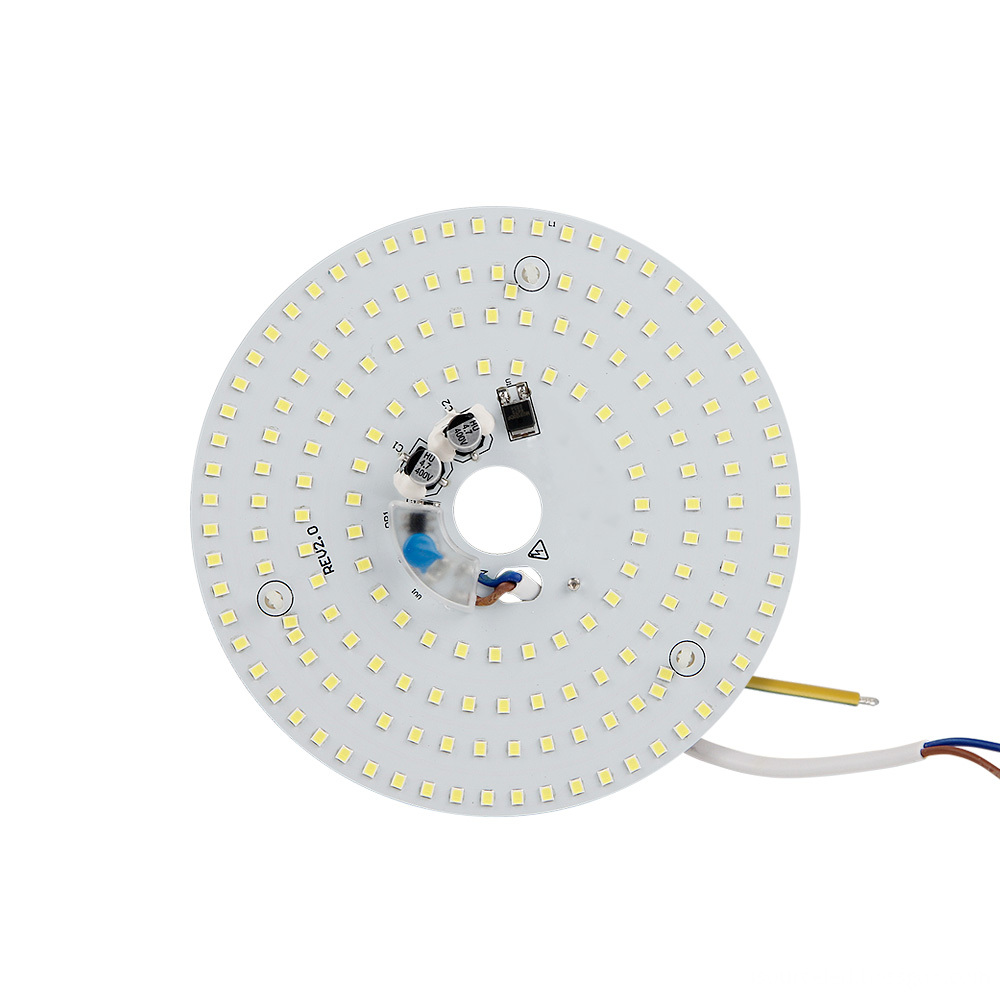

220V High lumen 15W white light ceiling module front

220V High lumen 15W white light ceiling module front

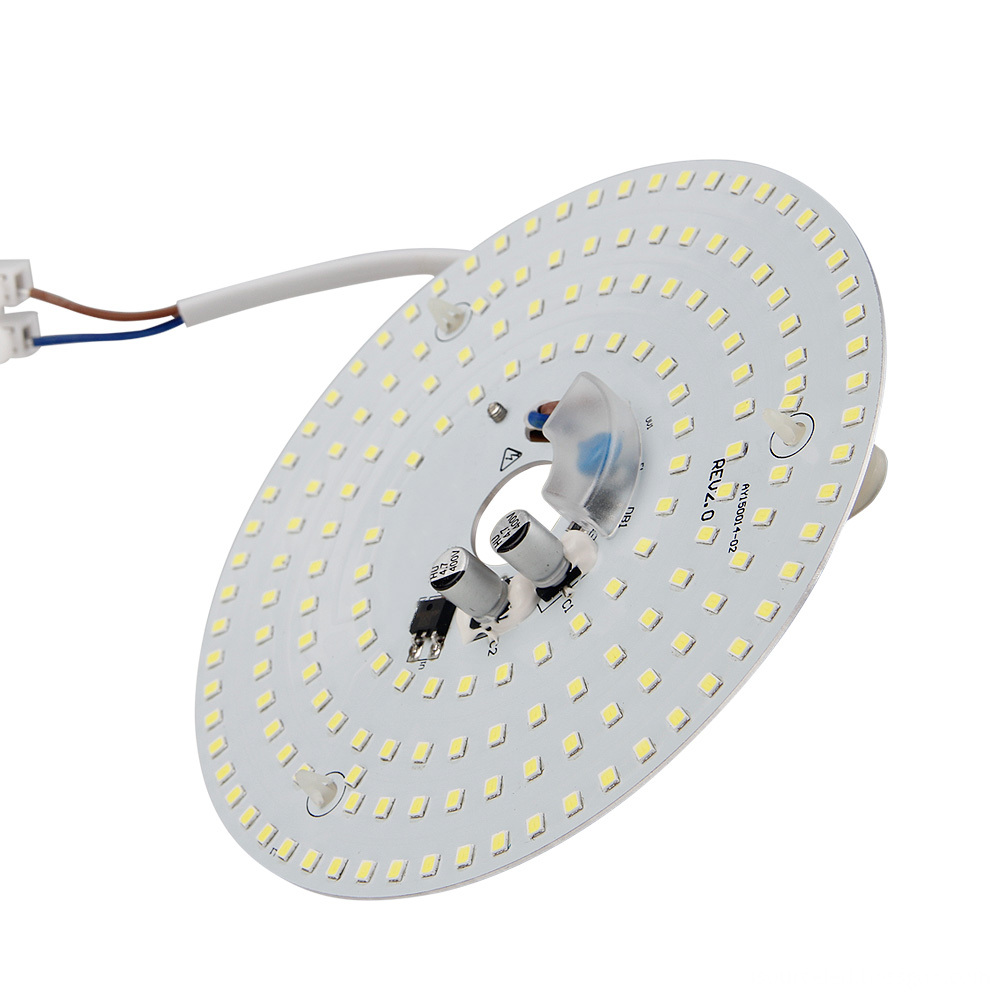

Side of 220V High lumen 15W white light ceiling module

Side of 220V High lumen 15W white light ceiling module

Technical parameters of 220V High lumen 15W white light ceiling module:

Type

AY150011-2

Input Voltage

AC220-240V 50HZ

Input Current

0.119A

Power

15W

Power Factor

0.597

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

1560.2 lm

luminous efficiency

105.2 lm/w

CCT

5384.7K

Ra

84.3

Size

Round  140*1.2mm

Weight

60 g

Thermal Conductivity

1.0W/m.K


There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.

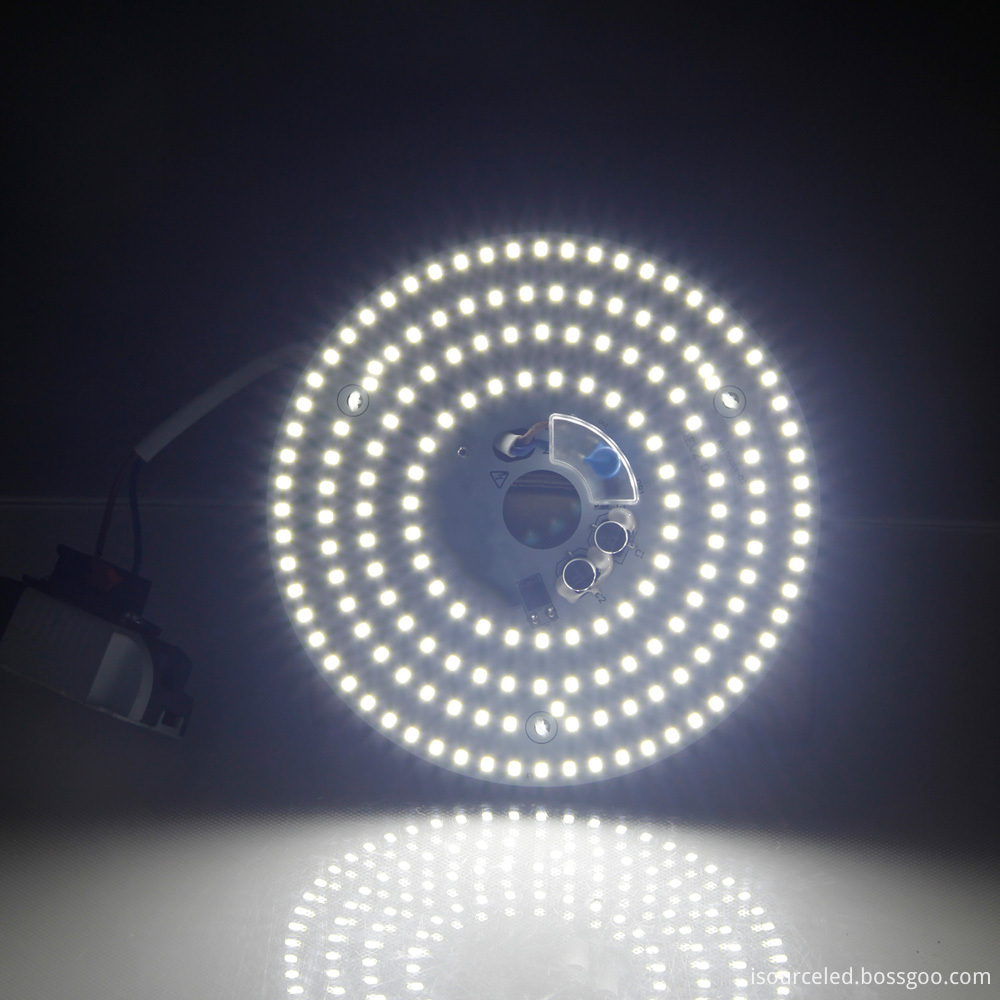

Lighting diagram of 220V High lumen 15W white light ceiling module

Lighting diagram of 15W white light panel light module of Aurora light board

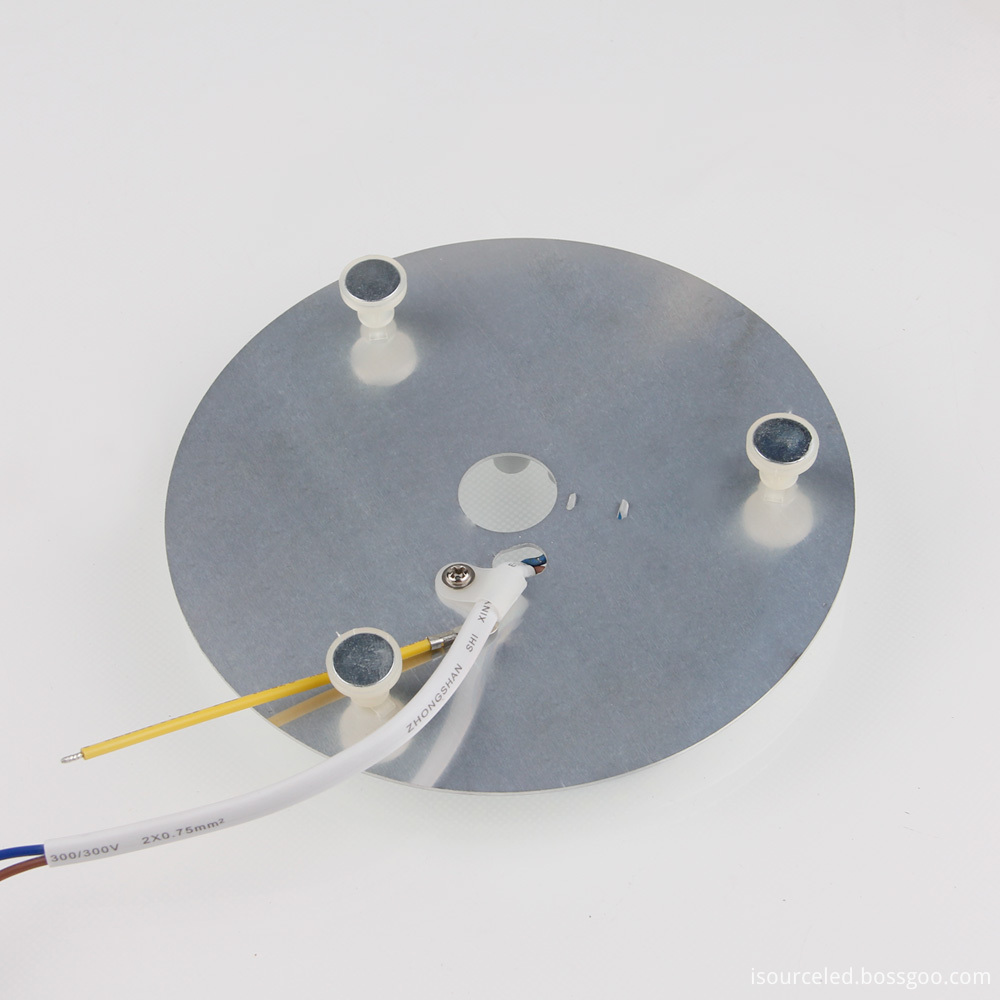

220V High lumen 15W white light ceiling module point bottom

Aurora light board 15W white light panel light module point bottom


Installation method of 220V High lumen 15W white light ceiling module:


1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED module,
   and fix the LED module and radiator with screws.
2. Attach the lens and screw it in place.
3. Ac 220V power supply is introduced for power test.
4. It is recommended to use an insulating gasket at the bottom of the screw.


ISource Engineering Co., It is a high-tech enterprise specializing in the development, production and sales of LED ceiling lamps and LED light sources.
