White light source 24W LED ceiling light module

Unit Price: USD 5.0500 - 5.3500 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: GY24-1

LED Light Source: Piranha

Emitting Color: Pure White, Natural White

1 LED Power: 0.3-0.5W

Power: 15W

LED Chips: Osram

Waterproof: Not Waterproof

Chip Material: AlGaInP

LED Type: SMD 2835

Size: Φ210*1.2mm

Input Current: 0.162A

Luminous Flux(lm): 2513 Lm

CCT: 83.6

Additional Info

Packaging:  L185*W165*H46mm, Single gross weight: 130 g

Productivity: 600

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 30000 pcs/month

Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001

Port: Shekou,Yantian

Product Description

LED 24W light board module consists of 84 lessons LED lamp beads, white light source, white light does not flash screen, LED light source module process uses disc light board, 24W light board is a whole piece of 1.5MM thick aluminum substrate, The 24W ceiling lamp module is suitable for the ceiling lamp and the ceiling lamp. The ceiling lamp housing is freely assembled to create its own style.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.


White light source 24W ceiling light LED module video.

24W led light pane module

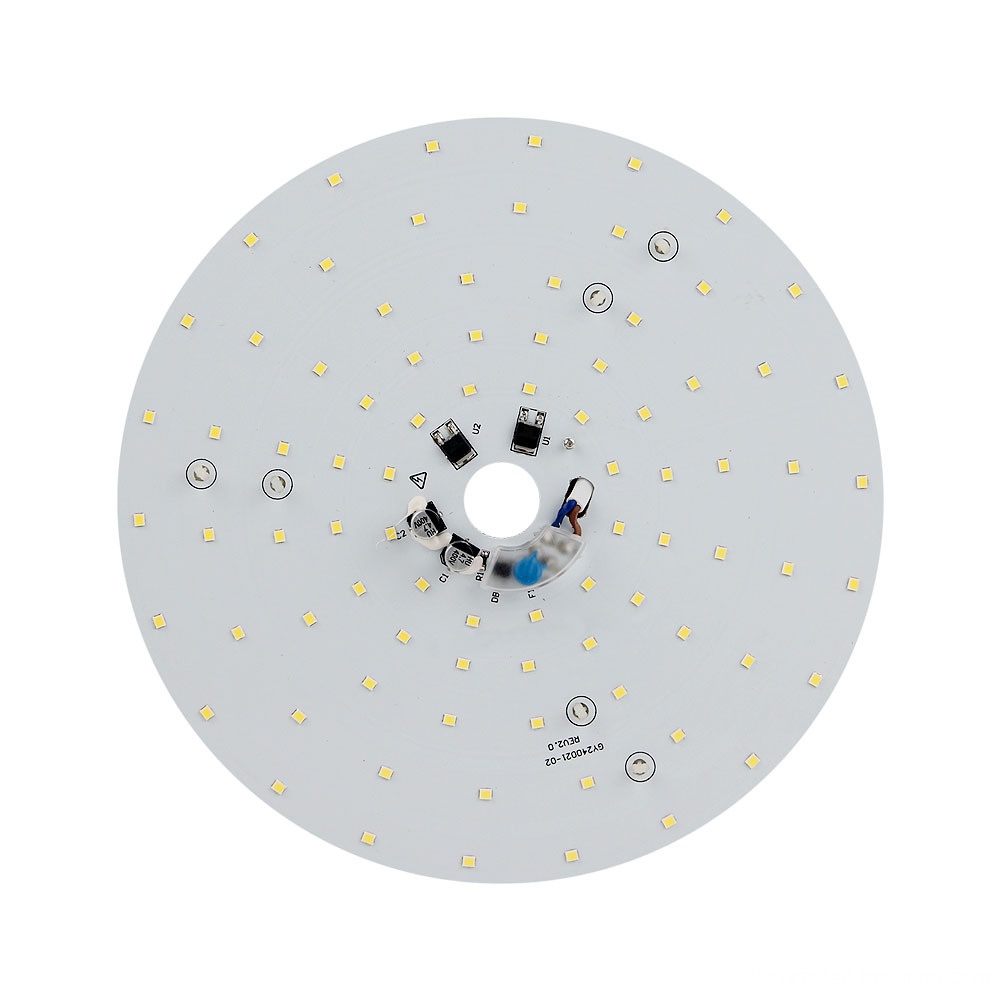

The picture above is a real shot of the 24W ceiling light LED module.

Product function of 24W led light pane module:


1. White Light Source 24W LED Ceiling Lamp Module

    of 84 lessons of large area coverage of LED beads, white light source.

2. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
3. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;
Constant power over voltage current protection function.
4. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
when the substrate temperature is too high.
5. 24W ceiling light LED module Using PCT2835 patch LED bead, color rendering index is more than 80.
6. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
7. No ultraviolet , electromagnetic wave radiation.
8. The size of 24W PCB board can be customized according to customer requirements.
9. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.

24W led light board module installation guide

24W led light board module installation guide

White light source 24W led ceiling module application range:

    Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps, LED downlights,

    fluorescent lamps, projection lamps, etc.

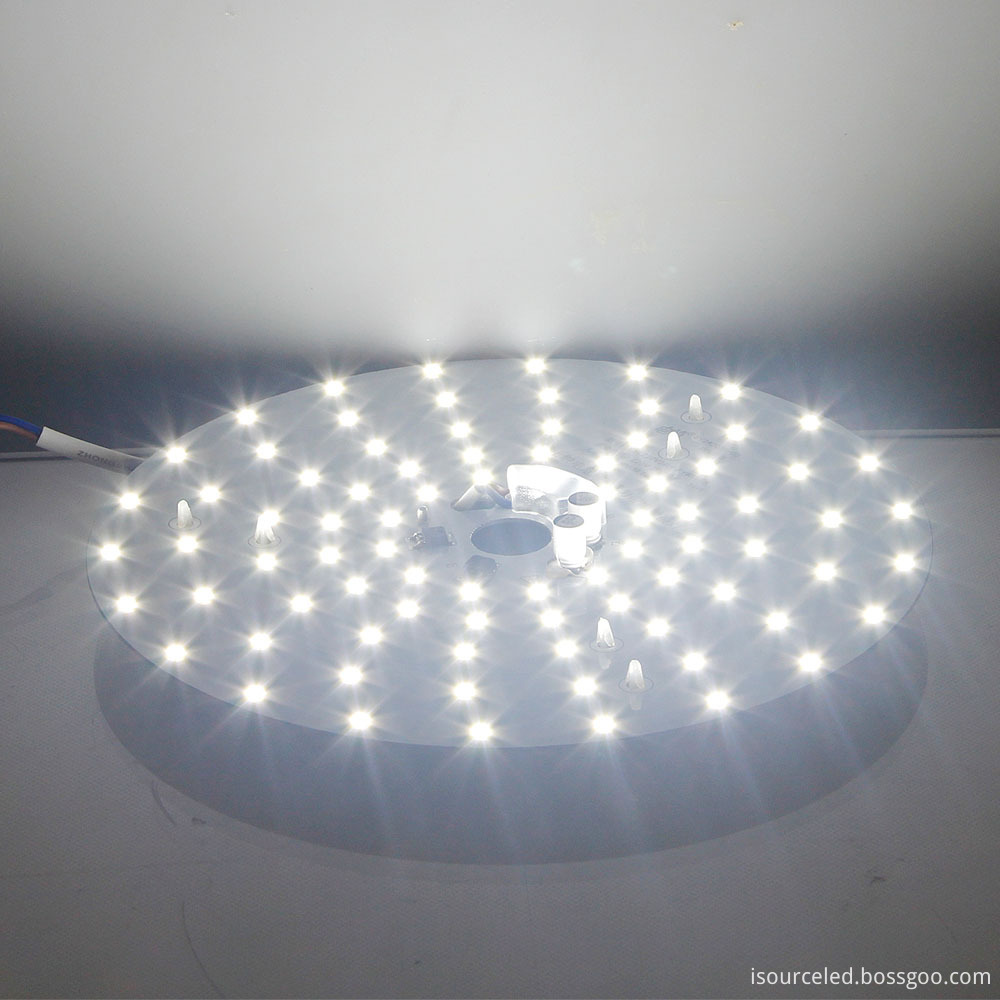

Lighting diagram of 24W led light board module

Lighting diagram of 24W led light board module

Technical parameters of white light source 24W ceiling lamp module:

Type

GY24-1

Input Voltage

AC220-240V 50HZ

Input Current

0.176A

Power

24W

Power Factor

0.6

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

2462 lm

luminous efficiency

103.3 lm/w

Color temperature

5000K-6500K

Color rendering index

85

Size

Φ210*1.2mm

Weight

130 g

Thermal Conductivity

1.0W/m.K


linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.

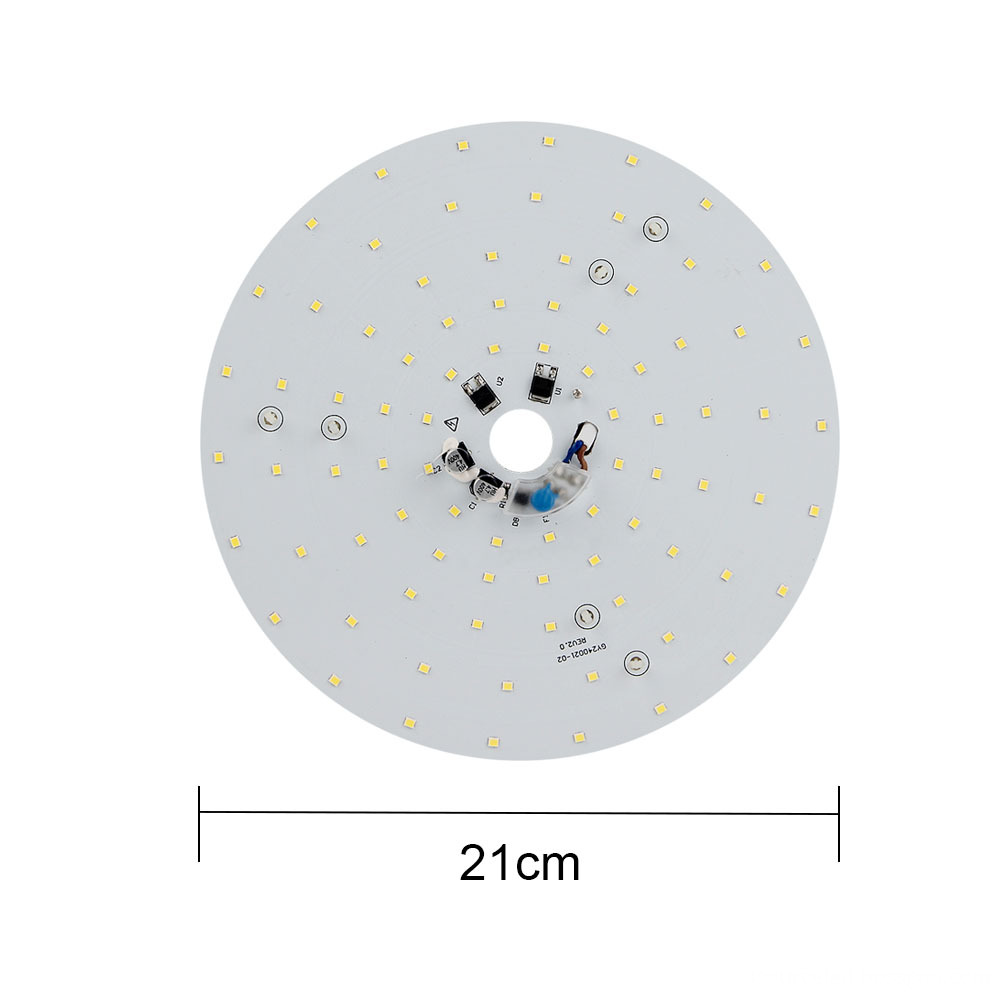

24W led light board module width


24W led light board module installation guide

24W led light module installation guide::

1. Clean the installation surface, evenly apply the heat-conducting silicone grease to the bottom of the LED module,

   and fix the LED module and radiator with screws.

2. Attach the lens and screw it in place.

3. Ac 220V power supply is introduced for power test.

4.  It is recommended to use an insulating gasket at the bottom of the screw.

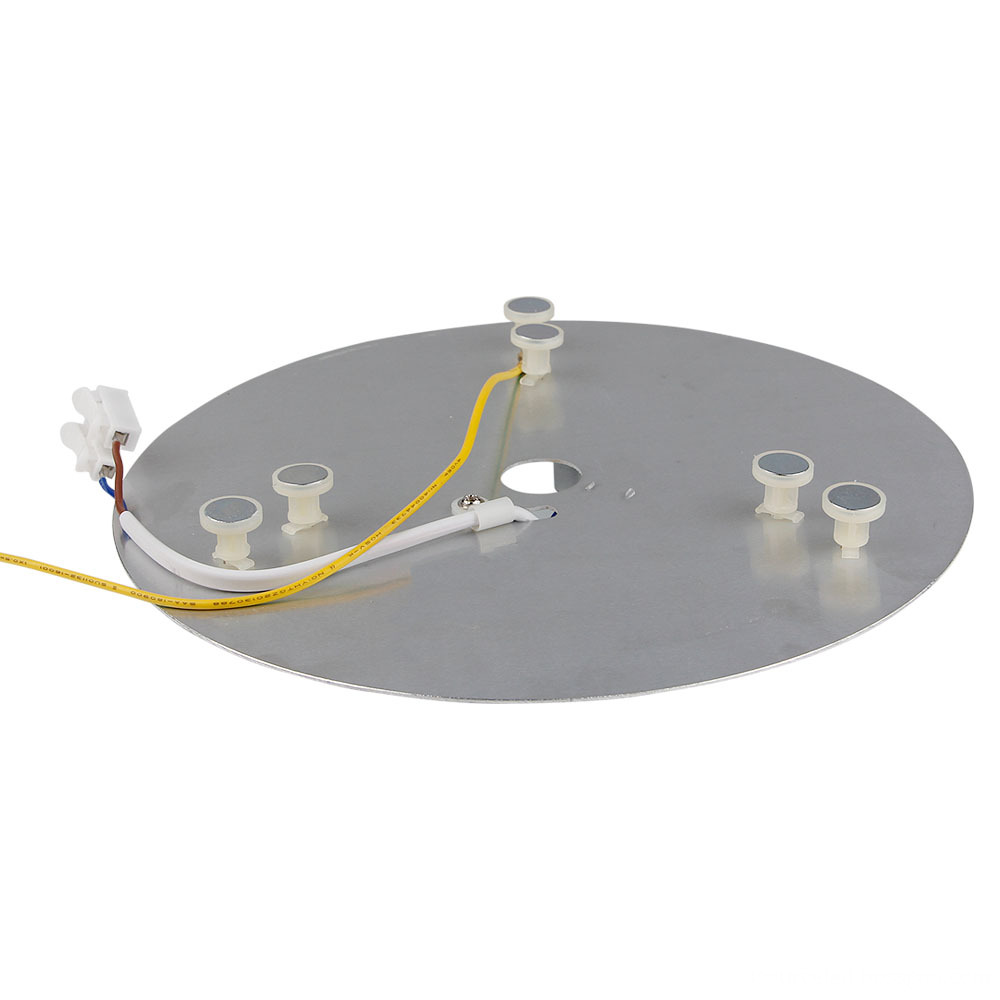

Base plate of 24W led light pane module

Base plate of 24W led light pane module(Figure)



ISource Engineering Co., Ltd is an innovative, All of our products are qualified with UL, cULs, ETL, cETL, Energy Star, DLC, CE, ROHS, SAA certificates.

Is a high-tech enterprise focusing on LED ceiling lamp, LED light source research and development, production and sales in one.
