Warm white light 35W LED ceiling light module

Unit Price: USD 8.0500 - 8.3100 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: GY3502

LED Light Source: Piranha

Emitting Color: Warm White, Natural White

1 LED Power: 0.3-0.5W

LED Chips: Osram

IP Rating: IP65

Waterproof: Not Waterproof

Power: 30W

Chip Material: AlGaInP

LED Type: SMD 2835

Color Temperature: 2700K-4500K

Luminous Flux(lm): 97.5 Lm/w

Luminous: 3497.7 Lm

Input Current: 0.255A

Color Rendering Index: 83.8

Additional Info

Packaging: L185*W165*H46mm Single gross weight: 191g

Productivity: 600

Brand: Isourceled

Transportation: Ocean,Land,Air

Place of Origin: Shen Zhen

Supply Ability: 30000 pcs/month

Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001

Port: Shekou,YANTIAN

Product Description

Warm white light 35W ceiling lamp module technical parameters:

Warm white light 35W LED ceiling lamp module process is input current 0.251A, power: 35W, the shape is round monolithic, model: GY35-2, LED warm white light 35W ceiling lamp module net weight 191 G, size: 280mm* 1.2mm, consisting of 112 lessons LED lamp beads, life can reach more than 30,000 hours, warm white light (WW) 2700-4400k, no flash screen, luminous flux 3561.47 lm, luminous efficiency 104.2 lm / w, LED warm white light 35W ceiling lamp module It is a 1.25MM thick aluminum substrate, ceiling lamp, and indispensable product module material in the panel lamp.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

Warm white light 35W LED ceiling light module video

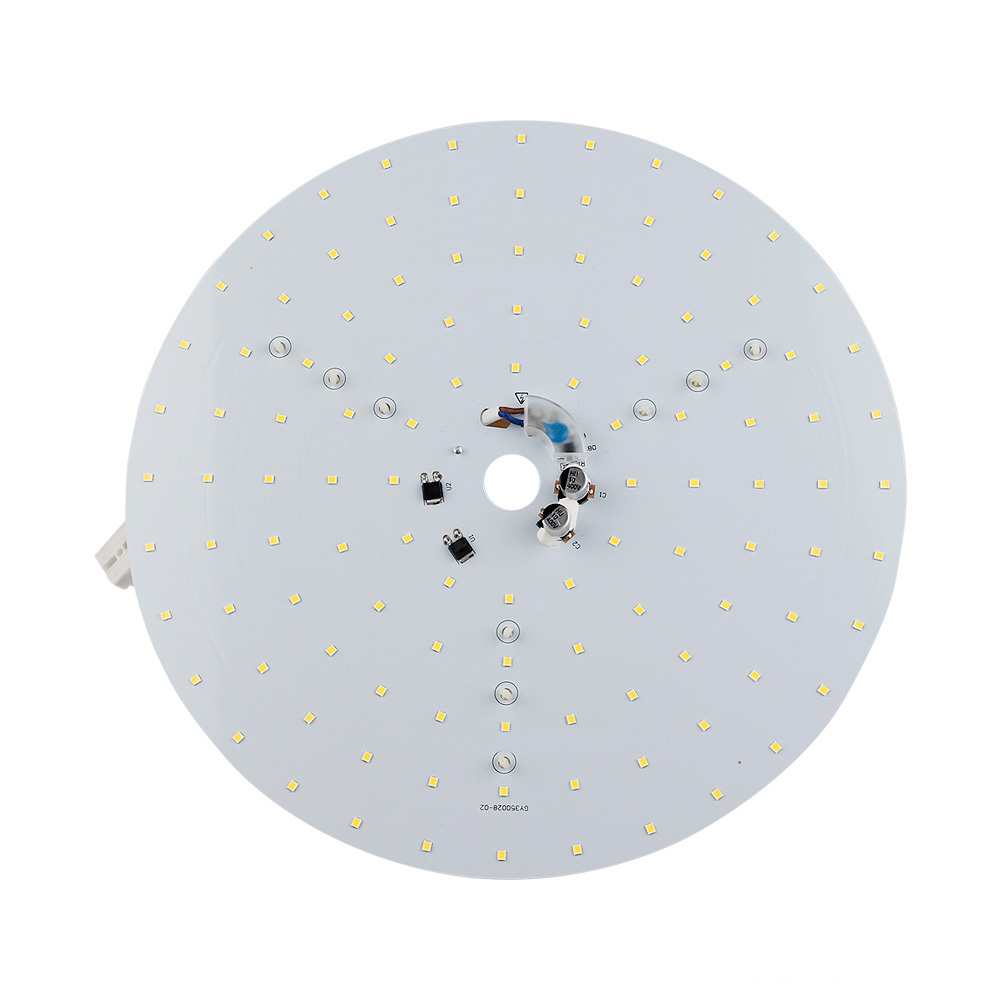

Frontal picture of warm white 35W led ceiling lamp module

Frontal picture of warm white 35W led ceiling lamp module

The module design adopts the chip type LED lamp bead constant current technology, which has high efficiency, low heat and high constant current precision.

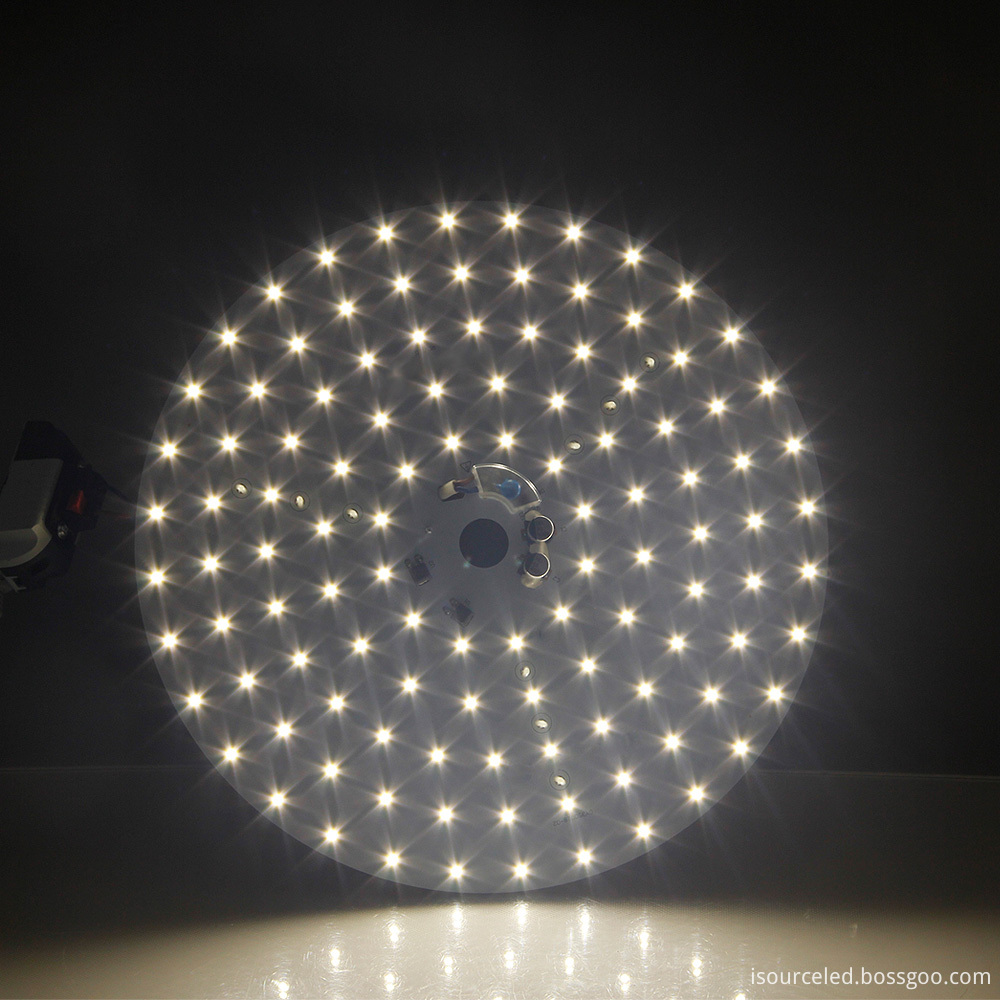

Luminescent Chart of 35W Warm White LED Roof Lamp Module

Luminescent Chart of 35W Warm White LED Roof Lamp Module

Module technical parameters:

Type

GY350028

Input Voltage

AC220-240V 50HZ

Input Current

0.245A

Power

35W

Power Factor

0.62

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

3487.4 lm

luminous efficiency

97.9 lm/w

Color temperature

2700K-4500K

Color rendering index

83.7

Size

Φ280*1.2mm

Weight

191 g

Thermal Conductivity

1.0W/m.K

Using PCT2835 patch LED bead, color rendering index is more than 80.

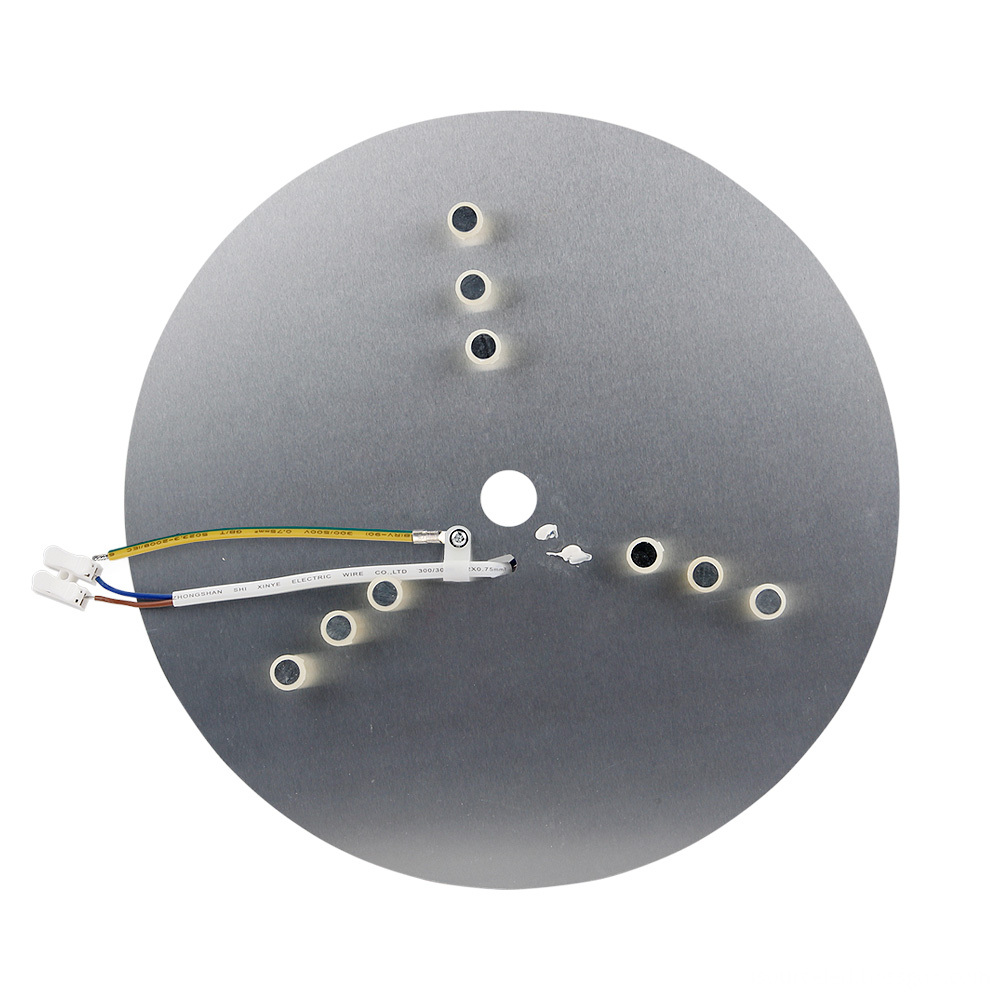

Bottom picture of warm white 35W ceiling lamp module

Bottom picture of warm white 35W ceiling lamp module

Aluminum substrate material, reasonable structural design, the base has mounting holes, easy to install.

our team

Isource lighting Co., Ltd Pursue outstanding quality and illuminate colorful life

Since the establishment of the company, the technology has been continuously innovated,

 and has made major breakthroughs in the field of high-power LED lighting, and has developed a series of LED lighting products.

 It is a powerful high-tech enterprise and is a Research and development unit for semiconductor LED lighting engineering.
