Adjustable light and color 15W ceiling light module

Unit Price: USD 4.5800 - 4.9800 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: CY1501

LED Light Source: Piranha

1 LED Power: 0.3-0.5W

Power: 15W

LED Chips: Osram

Waterproof: Not Waterproof

Emitting Color: White, Natural White

Chip Material: AlGaInP

LED Type: SMD 2835

Luminous Flux(lm): 107.5 Lm/w

Size: Round 140*1.2mm

Luminous: 1613 Lm

CCT: 5000-6500K

Input Current: 0.114A

Additional Info

Packaging:  L185*W165*H46mm , Single gross weight: 63 g

Productivity: 500

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 30000 One

Certificate: CE, RoHS, FCC,CCC,PSE

Port: Shekou,Yantian

Product Description

Dimmer led lamp: Users can easily adjust the brightness of LED lamp through intelligent lighting dimmer system. The wavelength of LED is the same, and the color is the same.
Lighting and color adjustable 15W LED ceiling lamp module process is input current 0.113A, power: 15W, shape is circular block, model: CY15-1, belongs to dimming module series, LED extreme light 24W ceiling lamp module net weight 63 G, size: 140 mm*1.2 mm, composed of 56 lessons of LED beads, life can reach 30,000 hours, positive white light (PW) 5000-6500K, no flash screen, light flux 1623 lm, light efficiency 104.6 lm/w. The 15W ceiling lamp module with adjustable lighting and color is the indispensable product module material for the whole 1.25MM thick aluminum substrate, ceiling lamp and panel lamp.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

Light and color adjustable 15W positive white LED ceiling light module video

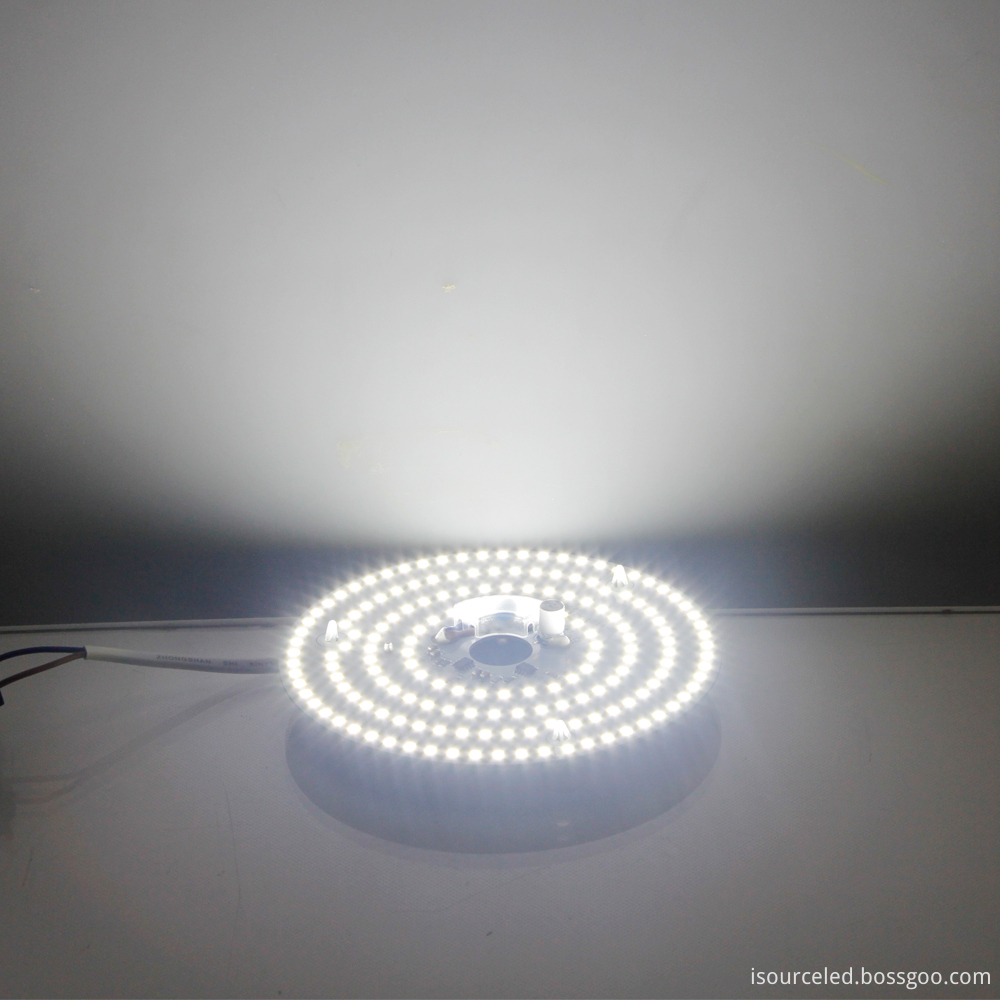

Front view of 15W positive white LED ceiling lamp module with adjustable light and color

Front view of 15W positive white LED ceiling lamp module with adjustable light and color

The module design adopts PCT2835 SMD LED lamp bead constant current technology, which has high efficiency, low heat and high constant current precision.

Lighting and color adjustable 15W positive white LED ceiling lamp module

Lighting and color adjustable 15W positive white LED ceiling lamp module

The original packaging process is used to emit energy in the form of electrons. The product has no spot color circle, high color rendering,

 vibration resistance and good beam concentration consistency.

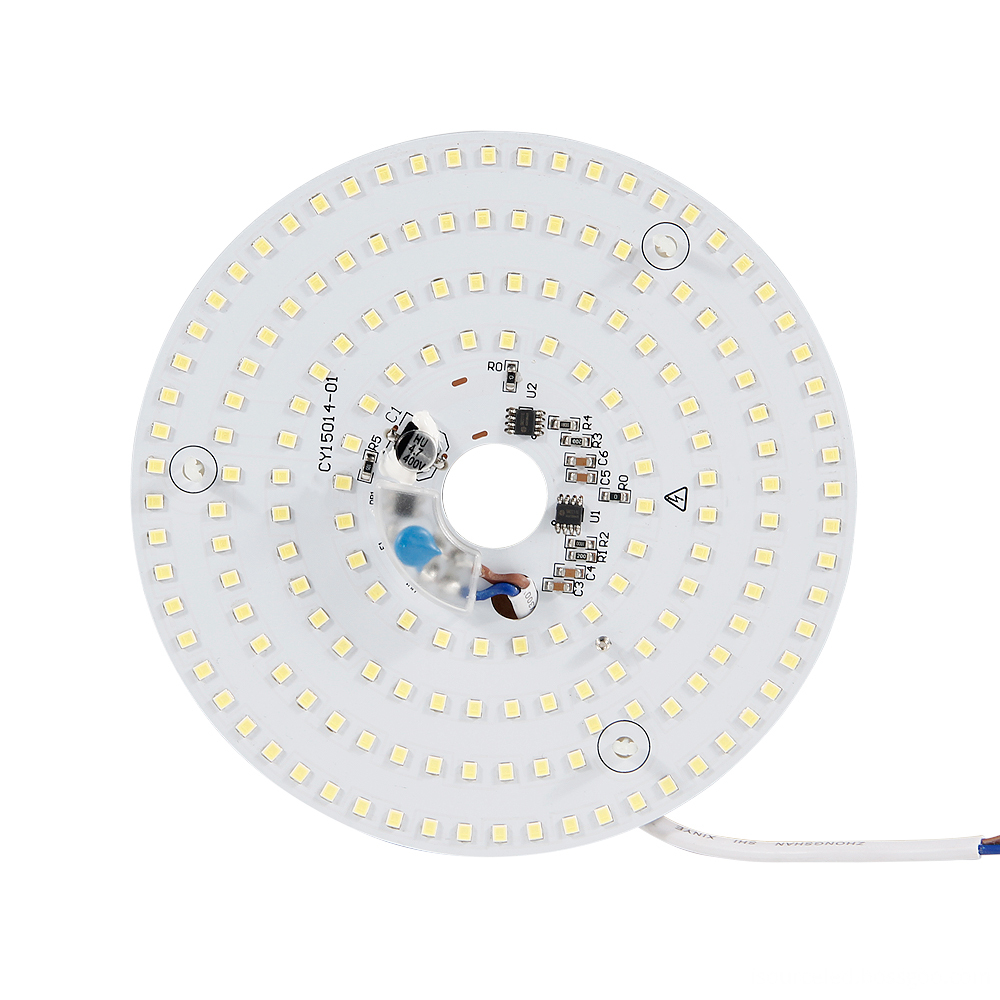

Light and color adjustable 15W white light bottom picture of ceiling light module

Light and color adjustable 15W white light bottom picture of ceiling light module

Aluminum substrate material, reasonable structural design, the base has mounting holes, easy to install.

Adjustable lighting and color 15W white light Technical parameters of ceiling lamp module:

Type

GF1501

Input Voltage

AC220-240V 50HZ

Input Current

0.114A

Power

15W

Power Factor

0.61

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

1623 lm

luminous efficiency

107.5 lm/w

CCT

5000-6500K

Ra

86.8

Size

Round 140*1.2mm

Weight

63 g

Thermal Conductivity

1.0W/m.K

our team

Since the establishment of the company, the technology has been continuously innovated, and has made major breakthroughs in the field of high-power LED lighting, and has developed a series of LED lighting products.It is a powerful high-tech enterprise and is a research and development unit for semiconductor LED lighting engineering.

Isource lighting Co., Ltd Pursue outstanding quality and illuminate colorful life

If you have any question, please feel free to contact us.
