White light 9W ceiling light dimming module

Unit Price: USD 2.5800 - 2.7800 / Piece/Pieces
Payment Type: L/C,T/T,D/P,Paypal
Incoterm: FOB,CFR
Min. Order: 200 Piece/Pieces
Delivery Time: 7 Days

Basic Info

Model No.: BF0901

LED Light Source: Piranha

Emitting Color: Pure White, Natural White

1 LED Power: <0.3W

Power: 9W

LED Chips: Osram

Waterproof: Not Waterproof

Chip Material: AlGaInP

LED Type: SMD 2835

Luminous Flux(lm): 106.1 Lm/w

Size: Round 400*27*1.2mm

Luminous: 954.7 Lm

Additional Info

Packaging: L185*W165*H46mm, Single gross weight: 64 g

Productivity: 600

Brand: isourceled

Transportation: Ocean,Land,Air

Place of Origin: shenzhen

Supply Ability: 30000 One

Certificate: CE, RoHS, FCC,CCC,PSE, ISO:9001

Port: Shekou,Yantian

Product Description

White light 9W ceiling lamp dimming module is a dimming module series, adjustable in three grades, users can easily adjust the brightness of LED lights through intelligent lighting dimming system, the process of dimming 9W ceiling lamp module by 84 lessons LED lamp beads And the light board is composed, the net weight is 64 G, the white light does not flash screen, the luminous flux is 954.7 lm, the luminous efficiency is 106.1 lm/w, the PCB board size is 400MM*27MM, the ceiling light board is the whole piece of 1.25MM thick aluminum substrate, ceiling lamp The panel light is indispensable in the product material. The ceiling lamp housing is matched with the 9W panel light module of the dimming series. The free assembly and lamp design are more convenient.

Shenzhen Dianjiang lighting co., LTD., Perfect advanced automated production equipment, strong r & d team, scientific and perfect quality, specializing in the production of led modules, ceiling light Led module, ceiling lights, uvc light, uv lamp, uv sterilizer lamp, uv germicidal lamp, uv disinfection lamp, solar street lights, led downlights, led flat panel.

White light 9W ceiling light dimming module video

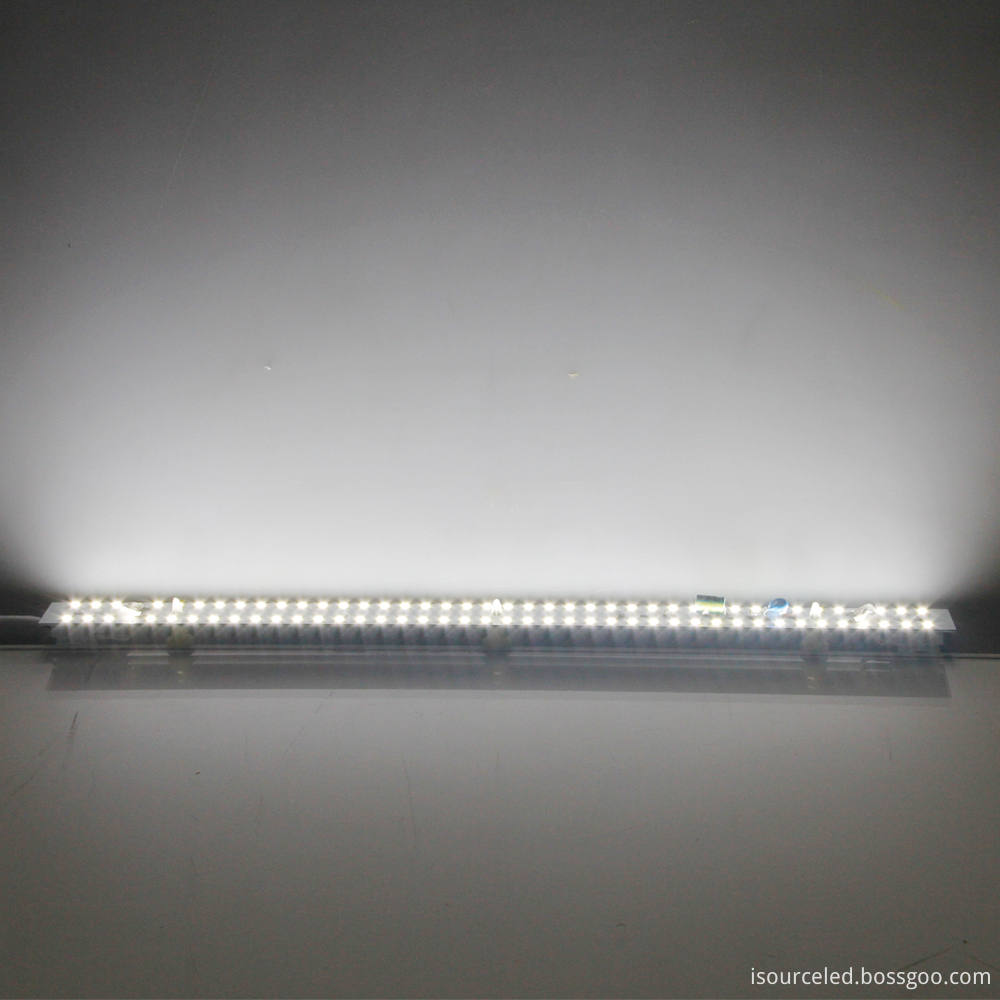

Front view of white light 9W ceiling light dimming module

Front view of white light 9W ceiling light dimming module

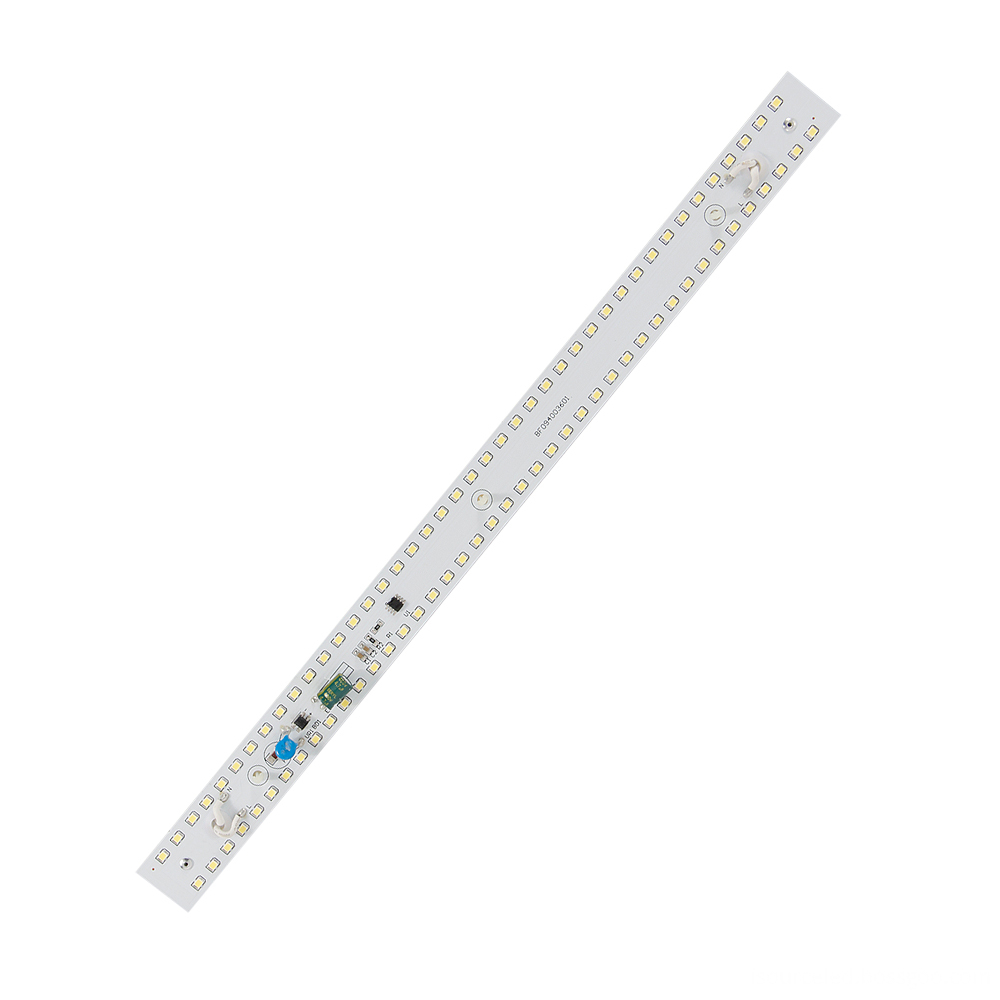

White light 9W panel light dimming module

White light 9W panel light dimming module

Technical parameters of white light 9W panel light dimming module:

Type

BF0901

Input Voltage

AC220-240V 50HZ

Input Current

0.075A

Power

9W

Power Factor

0.592

Insulation Class

ACW>2KV

Operating tempeture

-20~45℃

luminous

956.8 lm

luminous efficiency

106.1 lm/w

CCT

5668.3K

Ra

86.2

Size

Round 400*27*1.2mm

Weight

64 g

Thermal Conductivity

1.0W/m.K

White light 9W panel light dimming module application:

Can be perfectly applied to ceiling lamps, panel lights, mining lamps, street lamps, LED downlights, fluorescent lamps, projection lamps, etc.

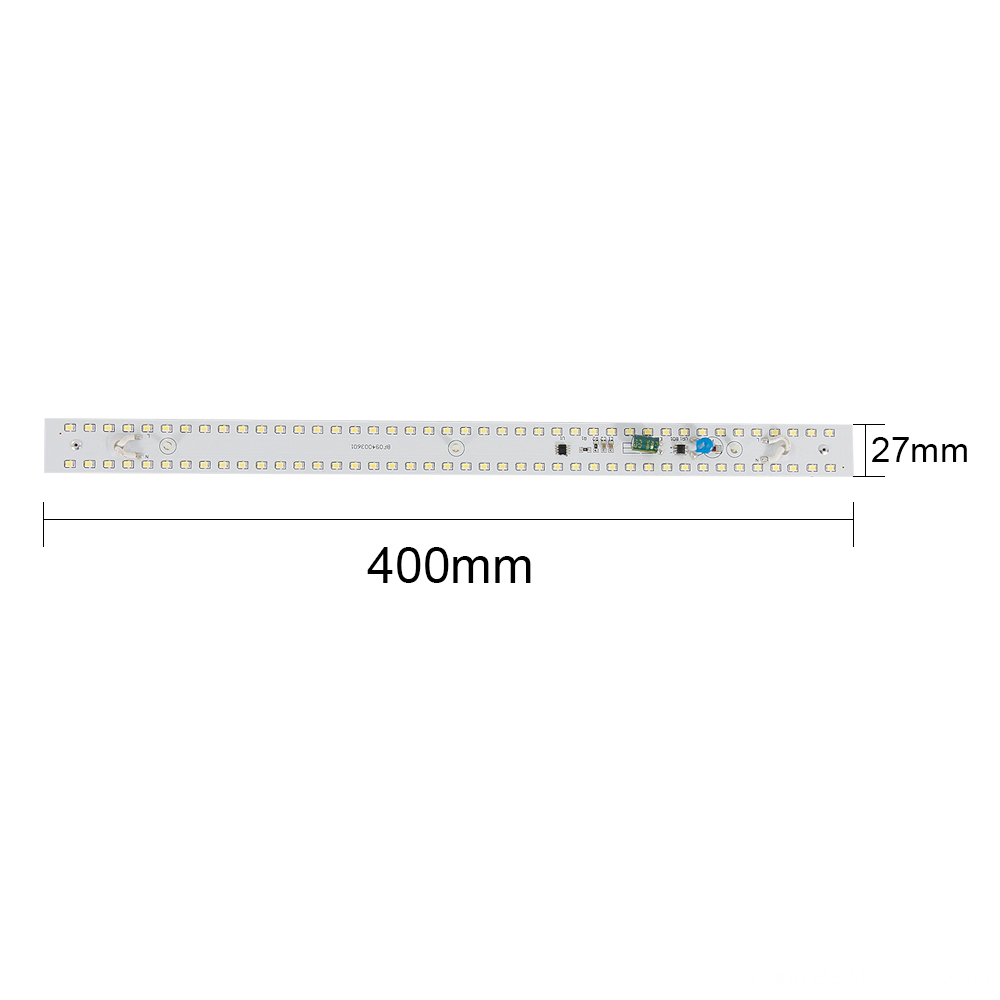

White light 9W light board dimming module size

White light 9W light board dimming module size

White light 9W ceiling light dimming module's luminous diagram

White light 9W ceiling light dimming module's luminous diagram

White light 9W light board dimming module product features:


1.White Light The 9W ceiling light dimming module consists of 84 large-area LED beads and white light source.

2. linear constant-current IC control, photoelectric integration, stable performance, reliable, long life.
3. Three-stage integrated circuit design, the power change rate is within ±5% when the input voltage fluctuates between 220-240vac;
Constant power over voltage current protection function.
4. Overtemperature protection function, IC will automatically reduce the output current to control the temperature rise of the substrate ,
when the substrate temperature is too high.
5. Using PCT2835 patch LED bead, color rendering index is more than 80.
6. There is no EMI, through the CCC, CE, EMC, LVD, SAA, UL, FCC, ROHS certification, etc.
7. No ultraviolet , electromagnetic wave radiation.
8. The size of 9W PCB board can be customized according to customer requirements.
9. No need to drive, wiring can be, 3 years replacement, full light, no flash screen.
